IVAT2-75LSF750WH/7PR | Mayer Electric

CONDUIT FLEXSTEEL . B01504

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCONDUIT FLEXSTEEL
Extra Product NameIVAT2-75LSF750WH/7PR | Mayer Electric
UPC980050022019
Weight12.7
WeightUnitlbs
Weight_AttribWeight
jsonUrlData/Product/CONDUIT-FLEXSTEEL-IVAT2-75LSF750WH-7PR-980050022019
jsonUrlData23dda79bb-0719-4720-b7fc-abb200c7e893
moq, multiple, tierMinQty11
MPNB01504
qtyInStock0
SKUFLX38A
tierPrice10.73
UL ListedSuitable for wet locations
IESNA LM-79 & IESNA LM-80 TestingRAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80

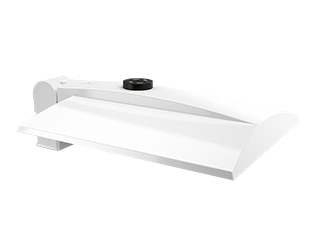

Title 24 CompliantAn IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)
DLC ListedThis product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
Watts67W
Color Temp5000K (Cool)
Lumens8,140 lm
Efficacy112 lm/W
Color Accuracy75 CRI
TypeConstant Current
Input Watts72W
LEDsLong-life, high-efficacy, surface-mount LEDs
Color StabilityLED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color UniformityRAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
IP RatingIngress protection rating of IP66 for dust and water
Cold Weather StartingThe minimum starting temperature is -40?C (-40?F)
Maximum Ambient TemperatureSuitable for use in up to 40?C (104?F)
HousingPrecision die-cast aluminum
Mounting2 3/8" slipfitter mount with stainless steel hardware
LensDiffused Polymethyl Methacrylate (PMMA)
Effective Projected AreaEPA = 2.1
FinishFormulated for high durability and long-lasting color
Green TechnologyMercury and UV free. RoHS-compliant components.
DriverClass 2, 50/60Hz, 480V 4kV standard, 10kV optional
THD11.61% at 480V
Power Factor96% at 480V
7-Pin ReceptacleANSI C136.41 7-pin receptacle, compatible with wireless control systems

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comFLX38A111 @ $0.73
