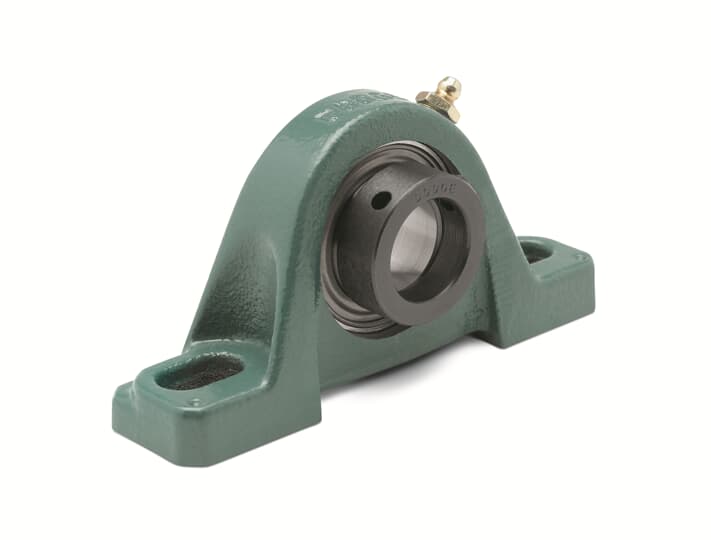

P2B-SXV-25M | Dodge

Dodge . P2B-SXV-25M

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDodge
CategoryL1Bearings
CategoryL2Mounted Bearings
CategoryL3Mounted Ball Bearings
CategoryL4Pillow Block Bearings
DimensionUnitmm
Extra Product NameP2B-SXV-25M | Dodge
diameter, width25.0
height1.44
height_AttribBase to center height
length1.22
length_AttribBore length
moq, multiple, tierMinQty11
MPNP2B-SXV-25M
qtyInStock0
SKU128809
snippet25mm bore Pillow Block 2-Bolt Ball Bearing with Eccentric Locking locking used in General Purpose applications
tierPrice149.72
width_AttribShaft diameter
DutyIntermediate duty
Relubrication, GreasableYes
Bore length1.2200 in, 30.988 mm
Insert typeBall Bearing
Rolling elementStandard duty ball
LockingEccentric locking
Expansion, High temp, Suitable for washdown, Standoff housing, Suitable for high temperatureNo
Housing material, Housing optionCast iron
ApplicationGeneral Purpose
Insert optionBearing steel
Seal optionDualGuard seals with flingers
Bore25mm
TypePillow block 2-Bolt
Housing constructionSolid
Ball bearing series205 series
Shaft diameter25.0000 mm
Shaft attachmentEccentric collar
Expansion capabilityNon-expansion (fixed)
Bolt to bolt min3.6900 in, 93.726 mm
Bolt to bolt max4.5000 in, 114.3 mm
Static load capacity1769 lbf, 7868.904 N
Bearing typeBall, ball
Bolt Diameter0.3750 in
Take-up frame sizeLD-10, TS-100
Housing typeTwo-bolt pillow block
Lubrication typeGrease
Max Speed4500 rpm
Sensor readyAdapter required
Base to center height1.4400 in, 36.576 mm
Insert materialSteel

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply128809111 @ $49.72
Lily BearingP2B-SXV-25M1-211 @ $44.94
motionindustries.com03708319111 @ $77.92
apexindustrialautomation.comP2B-SXV-25M111 @ $50.39
