P2B-SCM-200-HT | Dodge

Dodge . P2B-SCM-200-HT

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDodge
CategoryL1Bearings
CategoryL2Mounted Bearings
CategoryL3Mounted Ball Bearings
CategoryL4Pillow Block Bearings
DimensionUnitmm
Extra Product NameP2B-SCM-200-HT | Dodge
diameter, width50.8
height2.5
height_AttribBase to center height
length2.22
length_AttribBore length
moq, multiple, tierMinQty11
MPNP2B-SCM-200-HT
qtyInStock0
SKU123686

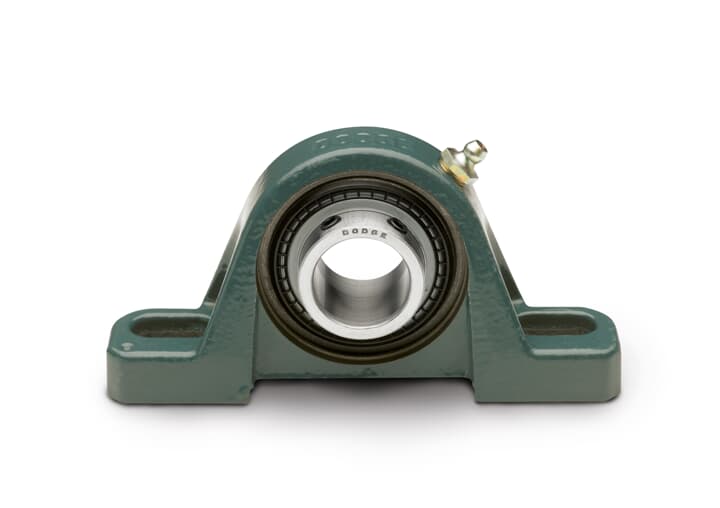

snippet2" bore Pillow Block 2-Bolt Ball Bearing with Set Screw locking used in General Purpose applications
tierPrice1387.03
width_AttribShaft diameter
DutyMedium duty
Relubrication, High temp, Greasable, Suitable for high temperatureYes
FinishPowder coated
Bore length2.2200 in, 56.388 mm
Insert typeBall Bearing
Rolling elementMedium duty ball
Material, Insert materialSteel
LockingSet screw
Housing option, Housing materialCast iron
Expansion, Suitable for washdown, Standoff housingNo
ApplicationGeneral Purpose
Max RPM4000 rpm
Insert optionBearing steel
SealShield
Seal optionDualGuard seals with flingers
Bore, I D2 in
TypePillow block 2-Bolt
Housing constructionSolid
Shaft diameter2.0000 in
Shaft attachmentSetscrew
Expansion capabilityNon-expansion (fixed)
Bolt to bolt min6.3800 in, 162.052 mm
Bolt to bolt max7.4400 in, 188.976 mm
Bearing typeBall, ball
Bolt Diameter0.6250 in
Take-up frame sizeLD-40, TS-300
Housing typeTwo-bolt pillow block
Lubrication typeGrease
Ball bearing series211 series
Sensor readyAdapter required
Base to center height2.5000 in, 63.5 mm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply123686111 @ $387.03
motionindustries.com02575137111 @ $606.13
apexindustrialautomation.comP2B-SCM-200-HT111 @ $392.26
