P2B-SCEZ-010L-SHCR | Dodge

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDodge
CategoryL1Bearings
CategoryL2Mounted Bearings
CategoryL3Mounted Ball Bearings
CategoryL4Pillow Block Bearings
DimensionUnitmm
Extra Product NameP2B-SCEZ-010L-SHCR | Dodge
diameter, width15.875
height33.274
height_AttribShaft centerline height
length1.23
length_AttribBore length
moq, multiple, tierMinQty11
MPNP2B-SCEZ-010L-SHCR
qtyInStock0
SKU130462

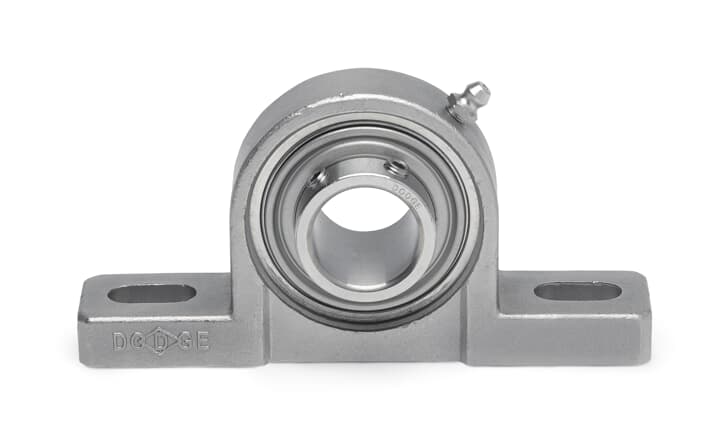

snippet5/8" bore Pillow Block 2-Bolt Ball Bearing with Set Screw locking used in Washdown applications
tierPrice1135.35
width_AttribShaft diameter
DutyStandard Duty
Relubrication, Greasable, Suitable for washdownYes
Bolt centerline range3.38 inch-4.18 inch
Bore length1.2300 in, 31.242 mm
Insert typeBall Bearing
Rolling elementStandard duty ball
LockingSet screw
Expansion, High temp, Standoff housing, Suitable for high temperatureNo
Housing material, Housing optionStainless steel
ApplicationWashdown
Insert optionCorrosion resistant
Shaft centerline height1.31 inch
Seal optionQuadGuard seals with flingers
Bore5/8 in
I D5/8 inch
TypePillow block 2-Bolt
Housing constructionSolid
Shaft diameter0.6250 in
Shaft attachmentSetscrew
Expansion capabilityNon-expansion (fixed)
Bolt to bolt min, Bolt to bolt max3.3800 in, 85.852 mm
Bearing typeBall, ball
Bolt Diameter0.3750 in
Housing typeTwo-bolt pillow block
Lubrication typeGrease
Ball bearing series204 series
Sensor readyAdapter required
Seal typeTriple-lip contact
Base to center height1.3100 in, 33.274 mm
Insert materialPlated steel

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply130462111 @ $135.35
motionindustries.com03712392111 @ $212.35
apexindustrialautomation.comP2B-SCEZ-010L-SHCR111 @ $137.18
