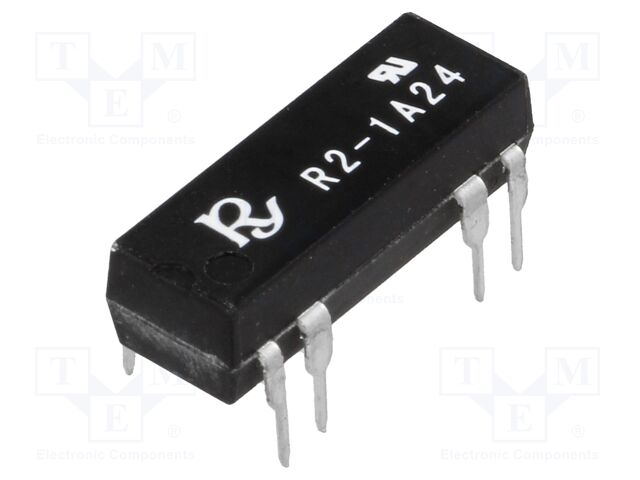

Recoy/RAYEX ELECTRONICS R2-1A24 | Relay: reed; SPST-NO; Ucoil: 24VDC; 1A; max.250VDC; 10VA; 268mW; PCB

Recoy/RAYEX ELECTRONICS . R2-1A24

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRecoy/RAYEX ELECTRONICS
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Reed Electromagnetic Relays
Extra Product NameRecoy/RAYEX ELECTRONICS R2-1A24 | Relay: reed; SPST-NO; Ucoil: 24VDC; 1A; max.250VDC; 10VA; 268mW; PCB
atoms, moq, multiple, tierMinQty11
jsonUrlData7b8f6b49ee32932e8a1bbb8a741b3273.
jsonUrlData2f4c799f37753b37b1517
keywordsRecoy/RAYEX ELECTRONICS, R2-1A24
MPN, SKUR2-1A24
qtyInStock547
snippetRecoy/RAYEX ELECTRONICS R2-1A24 | Relay: reed; SPST-NO; Ucoil: 24VDC; 1A; max.250VDC; 10VA; 268mW; PC
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice12.33
tierPrice22.12
tierPrice31.96
tierPrice41.79
tierPrice51.52
Type of relayreed
Contacts configurationSPST-NO
Rated coil voltage24V DC
Contact current max1A
Switched voltagemax. 250V DC
Switching capacity10VA
Coil resistance2.15k?
Coil power consumption268mW
MountingPCB
CaseDIP14
Contact resistance150m?
Coil voltage min18V DC
Coil voltage max32V DC
Operating temperature-40...85?C
Operate time1ms
Release time0.5ms
Contact materialAgCdO
Body dimensions20x7x5.5mm
Relay seriesR2
Terminal pitch2.54mm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMER2-1A24154711 @ $2.33, 5 @ $2.12, 25 @ $1.96, 100 @ $1.79, 500 @ $1.52
