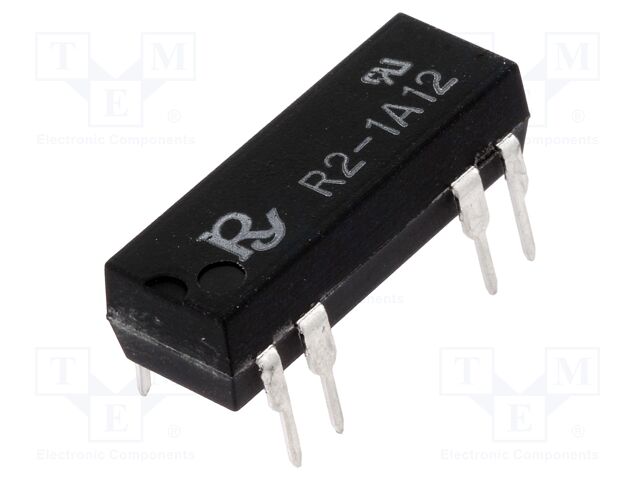

Recoy/RAYEX ELECTRONICS R2-1A12 | Relay: reed; SPST-NO; Ucoil: 12VDC; 1A; max.250VDC; 10VA; Rcoil: 1k?

Recoy/RAYEX ELECTRONICS . R2-1A12

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRecoy/RAYEX ELECTRONICS
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Reed Electromagnetic Relays
Extra Product NameRecoy/RAYEX ELECTRONICS R2-1A12 | Relay: reed; SPST-NO; Ucoil: 12VDC; 1A; max.250VDC; 10VA; Rcoil: 1k?
atoms, moq, multiple, tierMinQty11
jsonUrlDatac4da43d196b8f0e92ac31cb5c6d3863a.
jsonUrlData253bc0fa4702b46219965
keywordsRecoy/RAYEX ELECTRONICS, R2-1A12, Relays and Contactors, Relays, Electromagnetic Relays, Reed Electromagnetic Relays
MPN, SKUR2-1A12
qtyInStock990
snippetRecoy/RAYEX ELECTRONICS R2-1A12 | Relay: reed; SPST-NO; Ucoil: 12VDC; 1A; max.250VDC; 10VA; Rcoil: 1k
tierMinQty25
tierMinQty324
tierMinQty4108
tierMinQty5504
tierPrice13.3
tierPrice23
tierPrice32.77
tierPrice42.57
tierPrice52.18
Type of relayreed
Contacts configurationSPST-NO
Rated coil voltage12V DC
Contact current max1A
Switched voltagemax. 250V DC
Switching capacity10VA
Coil resistance1k?
Coil power consumption144mW
MountingPCB
CaseDIP14
Contact resistance150m?
Coil voltage min9V DC
Coil voltage max20V DC
Operating temperature-40...85?C
Operate time1ms
Release time0.5ms
Contact materialAgCdO
Body dimensions20x7x5.5mm
Relay seriesR2
Terminal pitch2.54mm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMER2-1A12199011 @ $3.30, 5 @ $3.00, 24 @ $2.77, 108 @ $2.57, 504 @ $2.18
