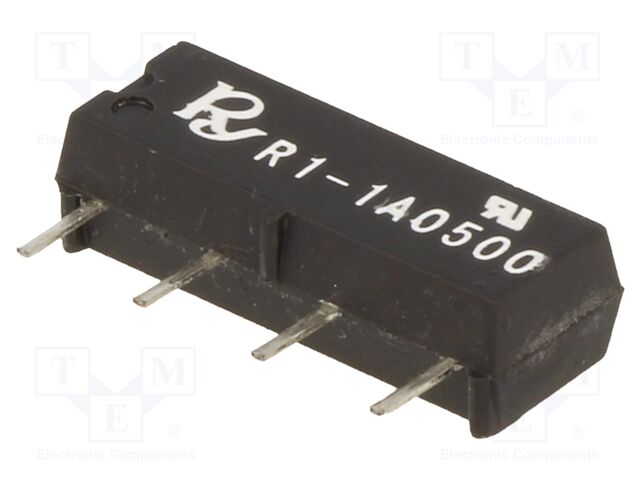

Recoy/RAYEX ELECTRONICS R1-1A0500 | Relay: reed; SPST-NO; Ucoil: 5VDC; 1A; max.250VDC; 10VA; Rcoil: 500?

Recoy/RAYEX ELECTRONICS . R1-1A0500

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRecoy/RAYEX ELECTRONICS
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Reed Electromagnetic Relays
Extra Product NameRecoy/RAYEX ELECTRONICS R1-1A0500 | Relay: reed; SPST-NO; Ucoil: 5VDC; 1A; max.250VDC; 10VA; Rcoil: 500?
atoms, moq, multiple, tierMinQty11
jsonUrlDataaea3306ecc0b9ffb2c1eff600d79d5ad.
jsonUrlData203444614c6ee1bacb920
keywordsRecoy/RAYEX ELECTRONICS, R1-1A0500
MPN, SKUR1-1A0500
qtyInStock7719
snippetRecoy/RAYEX ELECTRONICS R1-1A0500 | Relay: reed; SPST-NO; Ucoil: 5VDC; 1A; max.250VDC; 10VA; Rcoil: 500
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice12.26
tierPrice22.05
tierPrice31.85
tierPrice41.64
tierPrice51.46
Type of relayreed
Contacts configurationSPST-NO
Rated coil voltage5V DC
Contact current max1A
Switched voltagemax. 250V DC
Switching capacity10VA
Coil resistance500?
Coil power consumption50mW
MountingPCB
CaseSIL
Contact resistance0.15?
Coil voltage min3.75V DC
Coil voltage max16V DC
Operating temperature-40...85?C
Operate time1ms
Release time0.5ms
Contact materialAgCdO
Body dimensions19x5x7mm
Relay seriesR1
Terminal pitch5.08mm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMER1-1A05001771911 @ $2.26, 5 @ $2.05, 25 @ $1.85, 100 @ $1.64, 500 @ $1.46
