Ifm

Ifm . PK6222

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameIfm
DimensionUnitinch
GraingerSku35T543
UPC094720802938
UnitOfMeasureEA
Weight0.22
WeightUnitlbs
atoms2
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginRO
height, width1.7
jsonUrlData924526ffbdad25e5923b
length4
moq, multiple, tierMinQty11
MPNPK6222
qtyInStock25
qtyInStockOverride-2
SKUG7153036
tierPrice1205.10
urlhttps://www.zoro.com/ifm-pressure-switch-2-spst-0-to-1450-psi-pk6222/i/G7153036/

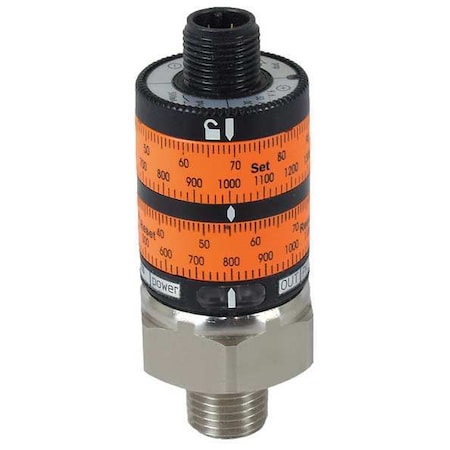

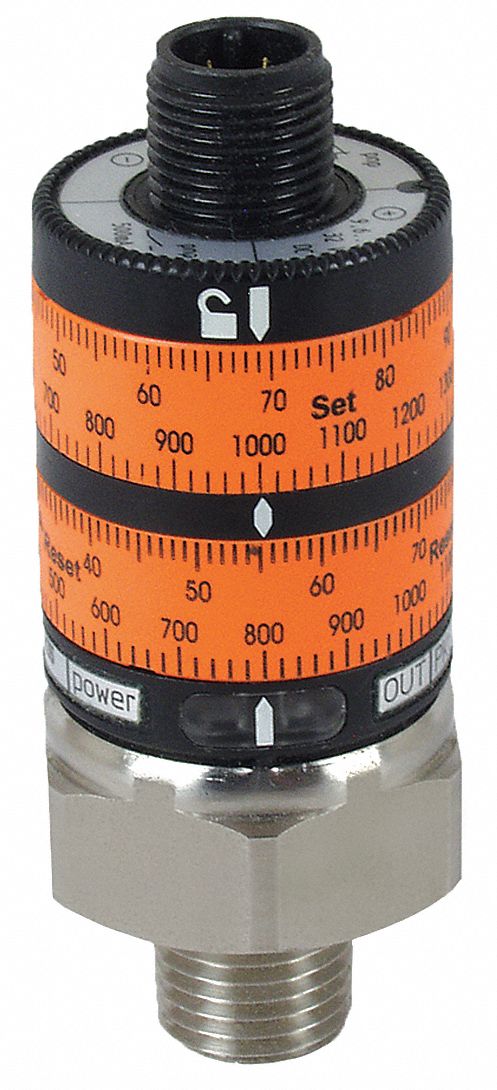

ItemPressure Switch
Pressure Switch Range, Range0 to 1450 psi
Pressure Switch Electrical Contact Form, Contact Form(2) SPST
Compatible WithAir and Liquids
Housing Material, Wetted Materials316 Stainless Steel
On Set Point75 to 1450 psi
Power Required10 to 32V DC
IP Rating67
NEMA RatingNot Rated
DC Contact Rating500 mA @ 10 to 32V DC
Off Set Point50 to 1420 psi
Electrical Connection4 Pin M12 Connector
AC Contact RatingNot Applicable
Circuit TypeElectronic PNP
Operating Temp Range13 Degrees to 176 Degrees F
Process Connection1/4 in MNPT
Burst Pressure14,500 psi
StandardsCE, DIN IEC 68-2-27, DIN IEC 68-2-6, EMC Approval, UL Listed
Country of Origin (subject to change)Romania

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG715303612511 @ $205.10
Grainger35T54311211 @ $264.75
sustainablesupply.comC11910421-211 @ $191.14
kempstoncontrols.co.ukPK6222111 @ $229.41
