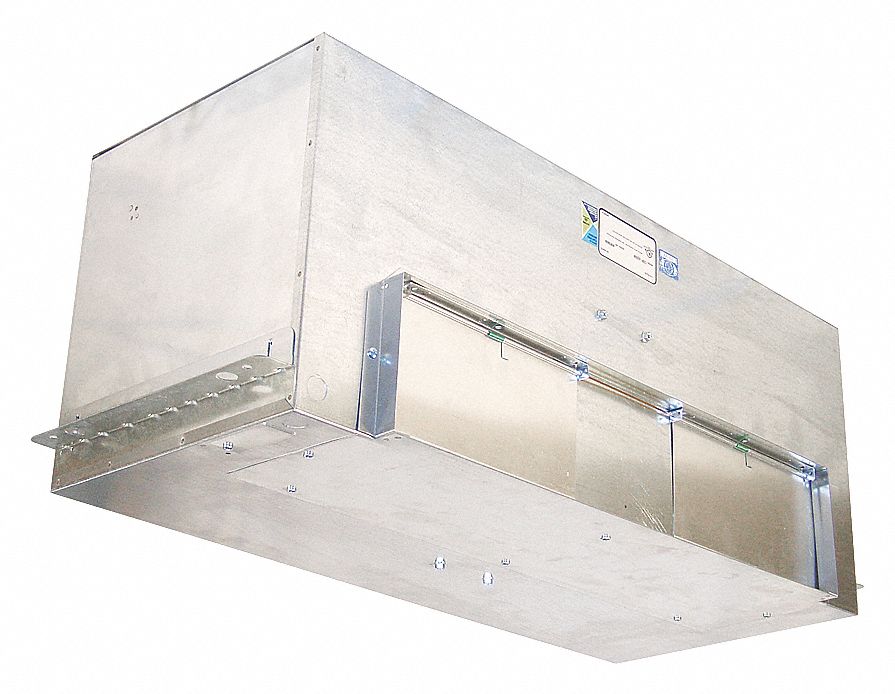

IN-LINE CABINET FAN,1672 CFM

Dayton high performance exhaust ventilators for residential, commercial, institutional, and industrial applications. Construction includes a removable access panel on the bottom of the unit. Motors are permanently lubricated and include overload protection and a wiring harness which can act as a disconnect.<br /><br /> Item: In-Line Ventilator<br /> Singlewide / Doublewide: Doublewide<br /> Insulated: Yes<br /> CFM @ 0.000-In. SP: 1672<br /> CFM @ 0.100-In. SP: 1618<br /> CFM @ 0.125-In. SP: 1604<br /> CFM @ 0.200-In. SP: 1567<br /> CFM @ 0.250-In. SP: 1543<br /> CFM @ 0.375-In. SP: 1484<br /> CFM @ 0.500-In. SP: 1427<br /> CFM @ 0.625-In. SP: 1367<br /> CFM @ 0.750-In. SP: 1307<br /> CFM @ 0.875-In. SP: 1240<br /> CFM @ 1.000-In. SP: 1172<br /> Sones @ 0.000-In. SP @ 5 Ft.: 5.0<br /> Sones @ 0.100-In. SP @ 5 Ft.: 4.5<br /> Sones @ 0.125-In. SP @ 5 Ft.: 4.5<br /> Sones @ 0.250-In. SP @ 5 Ft.: 4.5<br /> Voltage: 115VAC<br /> Hz: 60<br /> Phase: 1<br /> Full Load Amps: 9.00<br /> Number of Speeds: 1<br /> Watts: 830<br /> Motor RPM: 1610<br /> Motor Type: Permanent Split Capacitor<br /> Motor Enclosure: Open Dripproof<br /> Motor Insulation: Class B<br /> Max. Inlet Temp.: 104 Degrees F<br /> Housing Height: 14-1/2"<br /> Housing Width: 14-3/8"<br /> Housing Length: 23-3/4"<br /> Inlet Height: 13-1/4"<br /> Inlet Width: 22-5/8"<br /> Discharge Height: 8"<br /> Discharge Width: 18-3/4"<br /> Mounting Position: Horizontal or Vertical<br /> Housing Material: Galvanized Steel<br /> Wheel Material: Polypropylene<br /> Speed Control: 48C173<br /> Standards: UL/cUL 507, AMCA Air & Sound, CSA Certified Motor<br /> For Use With: General Ventilation Applications<br /> Includes: Backdraft Damper, Hardware and Mounting Brackets<br /> Recommended Accessories: 48C173
