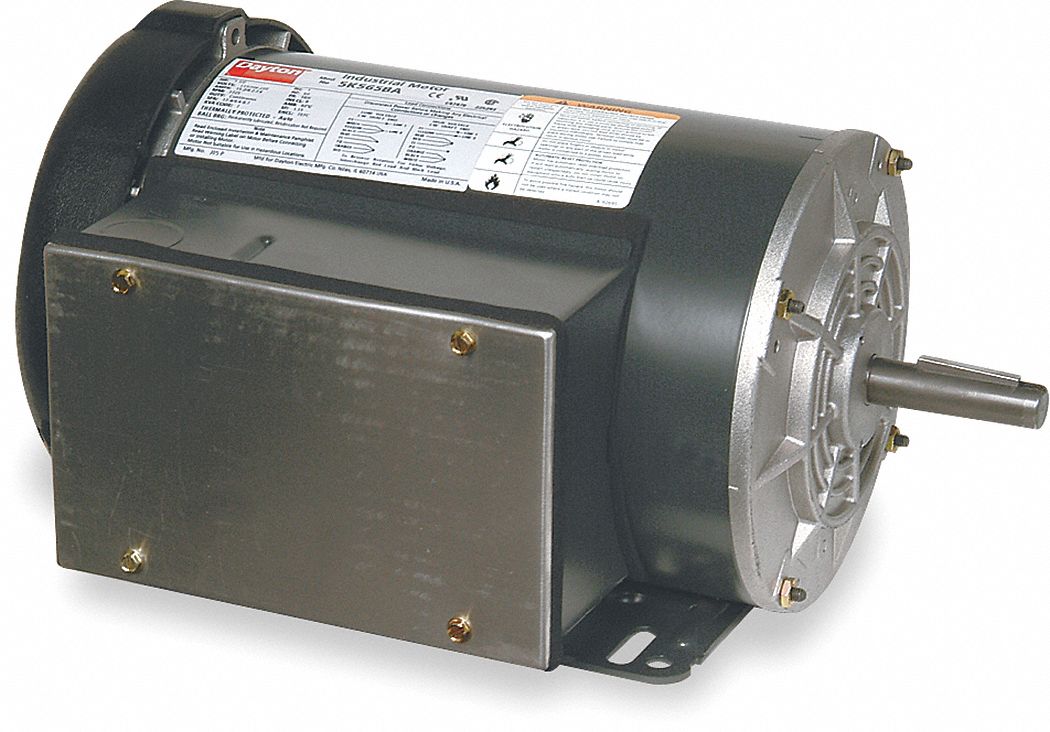

<p>General Purpose Motor, Capacitor-Start/Run, Totally Enclosed Fan-Cooled, 1-1/2 HP, Nameplate RPM 1725, 56H Frame, Voltage 115/208-230, 60 Hz, 1 Phase, 14.4/8.0-7.2 Full Load Amps, No. of Speeds 1, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Thermal Protection Manual, Ins. Class B, 1.15 Motor Service Factor, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 13-7/8 In., Motor Shaft Design Keyed</p><p><b>Specification: </b><ul><li>Motor Design: Capacitor-Start/Run</li><li>Duty: Continuous</li><li>Hz: 60</li><li>Standards: UL Recognized (E37403), CSA Certified (258501)</li><li>Motor Mounting Type: Rigid Base</li><li>Voltage Compatibility: 115, 120, 208, 230, 240, 115/208-230, 115/230, 120/240, 208-230, 208-240</li><li>Includes: Shaft Key</li><li>Motor Thermal Protection: Manual</li><li>Shaft Length: 1-7/8"</li><li>Voltage: 115/208-230</li><li>Nominal Efficiency: 81.2%</li><li>Frame: 56H</li><li>Motor Shaft Design: Keyed</li><li>Item: General Purpose Motor</li><li>Full Load Amps: 14.4/8.0-7.2</li><li>Overall Length: 13-7/8"</li><li>HP: 1-1/2</li><li>Max. Ambient Temp.: 40 Degrees C</li><li>RPM Group: 1701-1800</li><li>Motor Enclosure Design: Totally Enclosed Fan-Cooled</li><li>Ins. Class: B</li><li>Nameplate RPM: 1725</li><li>Motor Service Factor: 1.15</li><li>Motor Bearings: Ball</li><li>No. of Speeds: 1</li><li>Footnotes: 24</li><li>Manufacturers Warranty Length: 1 yr.</li><li>Motor Application: General Application</li><li>Phase: 1</li><li>Length Less Shaft: 12"</li><li>Frame Material: Steel</li><li>RPM Range: 1701-1800</li><li>Shaft Dia.: 5/8"</li><li>Motor Shaft Rotation: CW/CCW</li><li>Motor Efficiency Group: Energy Efficient</li><li>Motor Mounting Position: All Angle</li></ul></p>

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.4/8.0-7.2, 56H Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed WARNING: Cancer - www.P65Warnings.ca.gov -

Capacitor-Start Base-Mount Motors Max. ambient: 40°C Rotation: CW/CCW Bearing: ballUL Recognized and CSA Certified.Totally Enclosed Fan-Cooled MotorsFor use in dirty, dusty, and nonhazardous environments. Can be used in place of open dripproof motors.<br /><br /> Item: General Purpose Motor<br /> Motor Application: General Application<br /> Motor Design: Capacitor-Start/Run<br /> Motor Enclosure Design: Totally Enclosed Fan-Cooled<br /> HP: 1-1/2<br /> Nameplate RPM: 1725<br /> Frame: 56H<br /> Voltage: 115/208-230<br /> Hz: 60<br /> Phase: 1<br /> Full Load Amps: 14.4/8.0-7.2<br /> No. of Speeds: 1<br /> Motor Mounting Type: Rigid Base<br /> Motor Mounting Position: All Angle<br /> Motor Thermal Protection: Manual<br /> Ins. Class: B<br /> Motor Service Factor: 1.15<br /> Motor Bearings: Ball<br /> Motor Frame Material: Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 1-7/8"<br /> Length Less Shaft: 12"<br /> Overall Length: 13-7/8"<br /> Motor Shaft Design: Keyed<br /> RPM Range: 1701-1800<br /> Standards: UL Recognized (E37403), CSA Certified (258501)<br /> Duty: Continuous<br /> Motor Efficiency Group: Energy Efficient<br /> Nominal Efficiency: 81.2%<br /> Includes: Shaft Key<br /> Manufacturers Warranty Length: 1 yr.<br /> RPM Group: 1701-1800
