SEN0429 DFRobot | Development Boards, Kits, Programmers | DigiKey
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 15848074 | 1 | 22 | 1 | 1 @ $14.95 |
 Newark | 33AK3635 | 1 | 15 | 1 | 1 @ $11.48 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

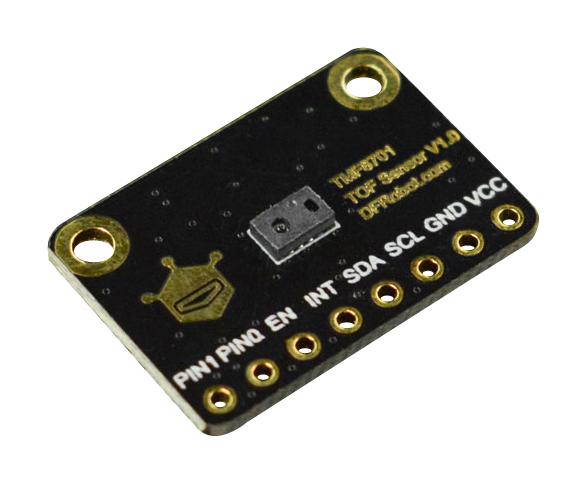

Fermion：TMF8701 Tof Distance Ranging Sensor (10-600mm)- High-Precision, Eye-Safe, and Versatile Ranging Solution for Various Applications
Brand: DFROBOT
<b>Features</b><br> 21º FOI, detect the object closest to the center<br><br> 10–600mm distance sensing<br><br> Enables dark and sunlight environment distance measurement within ±5%<br><br> A built-in histogram for compensating for dirt and smudges on cover glass <br><br> 940nm VCSEL Class 1 Eye Safety<br><br> Low power consumption, 940μA power consumption at 10Hz(proximity mode); 26mA power consumption at 60Hz (distance and proximity mode); 0.26μA power-down current consumption (EN=0)<br><br> <b>Applications</b><br> 3D face recognition<br> Proximity detection<br> Presence detection<br> Object detection<br> Distance measurement<br> Collision avoidance<br><br> <b>Specification</b><br> Operating Voltage: 2.7-3.3V<br> Operating Current: less than 1.5mA<br> Proximity Detection Range: 1-10cm<br> Distance Sensing Range: 10-60cm<br> Operating Temperature: -30 -70℃<br> Communication Interface: Breakout 2.54mm-8Pin I2C<br> Dimension: 21*14.5mm/0.83*0.57"<br> Mounting Hole Size: 2.0mm<br> Mounting Hole Pitch: 17mm<br><br> <b>Shipping List</b><br> Fermion: TMF8701 ToF Distance Ranging Sensor (10-600mm) x1<br> 2.54-8P Black Single-row Connector x1 <br>
Details
- High-Precision Distance Measurement - The TMF8701 offers 1-10cm proximity detection and 10-60cm high dynamic range measurement, providing high-precision distance measurement within ±5% accuracy, suitable for a wide range of applications.
- Strong Environmental Adaptability - The TMF8701 can provide single-zone object detection regardless of the object's color, reflectivity, and texture. It also operates in both dark environments and under sunlight, ensuring accurate measurement results.
- Built-in Histogram and Crosstalk Compensation - The TMF8701 features a built-in histogram for dynamic cover glass calibration and crosstalk compensation, minimizing background light noise with an on-chip sunlight suppression filter, improving the stability and reliability of measurement results.
- Eye-Safe and Low Power Consumption Design - The TMF8701 uses a 940nm VCSEL Class 1 eye-safe laser device, ensuring user safety. Additionally, it has a low power consumption design with 940μA current consumption at 10Hz (proximity mode), 26mA at 60Hz (ranging and proximity mode), and 0.26μA shutdown current consumption (EN=0), making it energy-efficient.
- Wide Range of Applications - The TMF8701 laser distance sensor can be used in various applications, such as 3D facial recognition, proximity detection, presence detection, object detection, distance measurement, and collision avoidance, offering high practicality and market demand.with no need for external optics.
Listing
| Binding | Unknown Binding |
|---|---|
| Product group | BISS Basic |
| Product type | ELECTRONIC_SENSOR |
| Model | SEN0429 |
| Part number | SEN0429 |
| Items per pack | 1 |
| Label | DFRobot |
| Manufacturer | DFRobot |
