DFROBOT SEN0099 | Module: camera; Resolution: VGA/QVA/160*120; 5VDC; OV7725; UART

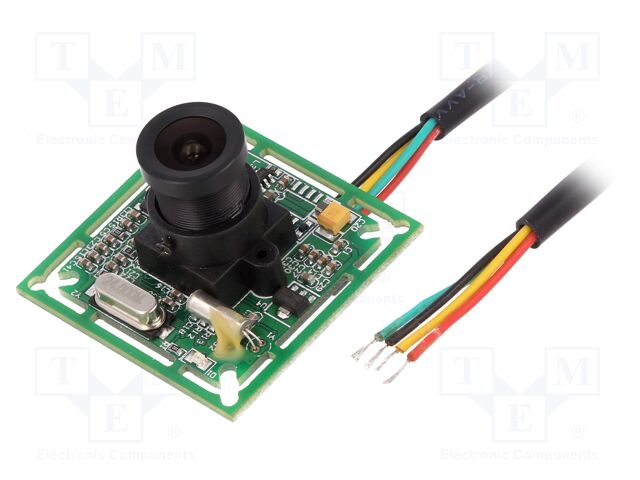

<b>Description:</b><br><br>The ZM 0.3 Megapixel serial JPEG still camera module has a compact size, low power comsuption, and stable operation. 5.0V DC Supply. UART: Up to 115200bps for transferring JPEG images. The camera uses the advanced OmniVision OV7725 VGA color sensor JPEG CODEC for different resolutions. The camera also features down sampling, clamping and windowing circuits for VGA, QVGA, and no need for external DRAM. The use of the OmniVision CMOS VGA color sensor makes this a low powered comsuption unit.<br><b>NOTE: The interface of this module is using RS232 protocol.</b><BR><BR><b>Specification:</b><br><br>5V power supply<br>Current consumption: 80-100mA<br>Communication interface/protocol: RS232<br>VGA/QVGA/160x120 resolution<br>Support capture JPEG from serial port<br>Default baud rate of serial port is 115200<br>Size:1.51x1.51x1.26"(38.35x38.35x32mm)<br><b>Wiring description (For included cable)</b><br>Red wire +5v<br>Black wire GND<br>Green wire RS232 RX line<br>Yellow wire RS232 TX line<br><BR><BR><b>Shipping List:</b><br><br>0.3M pixel serial JPEG camera module x1<br>4 wires cable x1
