Dfrobot Ring 2D Qr Code Scanner, 3.3V/5V - SEN0486
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Newark | 33AK3643 | 1 | 15 | 1 | 1 @ $40.53 |
| Digi-Key | 15997363 | 1 | 21 | 1 | 1 @ $39.90 |
| DF-SEN0486 | 1 | 1 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

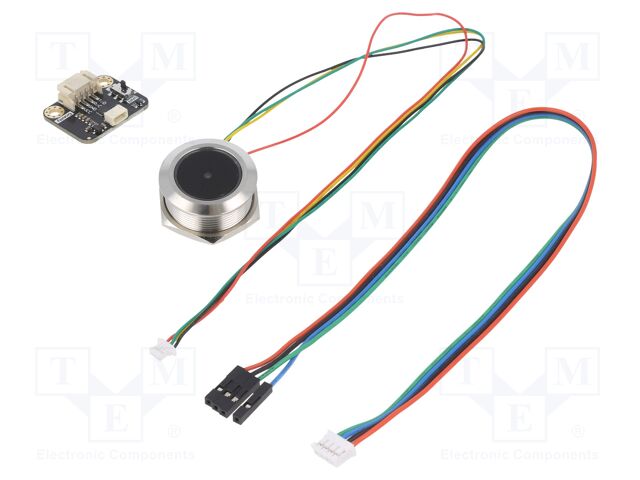

Gravity：Ring 2D QR Code Scanner
Brand: DFROBOT
<b>Features</b><br> Use-to-connect Gravity interface<br> 3.3V/5V power supply<br> I2C & UART supported<br><br> <b>Specification</b><br> Power Supply: DC3.3V/5V<br> Working Current: <70mA <br> Communication: I2C, UART<br> Image Pixel: 640*480<br> Light Source: colorful indicator/green light flashing prompt successful reading<br> Code System: 1D: EAN13, EAN8, UPCA, UPCE0, UPCE1, Code128, Code39, Code93, CodeBar, Interleaved 2 of 5 2D: QR code, Data Matrix, PDF417<br> Depth of Field: QR Code (25mm-150mm product performance may be affected to varying degrees due to barcode quality and environmental conditions)<br> Contrast: ≥25%<br> Reading Angle: roll 360°, pitch 55°, yaw 55°<br> Scanning Angle: 69° (horizontal), 56° (vertical)<br> Reading Accuracy: ≥5mil<br> Working Temperature: 20°C ~60°C<br> Storage Temperature: -40°C ~80°C<br> Environment Light: 0~100000Lux<br> Relative Humidity: 5% to 95% (non-condensing)<br><br> <b>Shipping List</b><br> Ring 2D QR Code Scanner x1<br> Adapter Board x1<br> PH2.0-4P Dupont Wire 30cm(Red Black Blue Green) x1<br>
Details
- This highly integrated QR code scanner with excellent performance can recognize common 1D codes and 2D codes
- With a small size, it employs easy-to-connect Gravity Interface and is equipped with a colorful indicator that feeds back the sensor recognition status by showing different colors
- Operating at 3.3V/5V, the scanner is compatible with UART and I2C communication, which makes it easier to develop on controllers like Arduino, ESP32, Raspberry Pi, etc
- It can be used in self-service vending machines, subway gates, access control, payment machines, etc.
Listing
| Binding | Office Product |
|---|---|
| Product group | CE |
| Product type | BAR_CODE_READER |
| Model | SEN0486 |
| Part number | SEN0486 |
| Items per pack | 1 |
| Label | DFROBOT |
| Manufacturer | DFROBOT |
