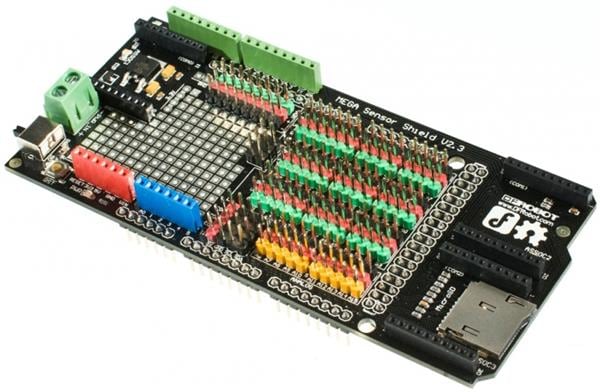

<b>INTRODUCTION</b><br> Say goodbye to messy cables and clueless pluging/unpluging! This Mega Sensor Shield V2.4 is a powerful expansion shield for Arduino Mega. It is large enough to carry up to 3 Xbee slots, 1 microSD slot and shield headers for most Arduino shields on the market. Besides, we also added a prototyping area for convenience and adaptability for customized projects. The breakouts for Digital pins are 14 to 53, Analog pins 6 to 15 and PWM pins 2 to 9. This shield can really be a major communications hub or "Mothership" for your projects.<br> Each Xbee socket is connected to a different pin. Xbee socket 1 is connected to the main Serial port. While Xbee socket 2 to Serial1() and Xbee socket 3 to Serial2() on Arduino IDE.<br> The board has an integrated voltage regulator for 3.3v, a convenient reset push button topside and the standard on board LED that you can use for testing or debugging.<br> A external power connector for servos, as in other products of this family. If you need to power a large array of servos, use the screw terminals to connect your power supply and just drive it directly from your Mega.<br> The microSD will be great if you are planning on doing sensor monitoring for research and data gathering for your algorithms, increase your automatic systems performance with accumulated data.<br> <br> <b>SPECIFICATION</b><br> Compatible with most Arduino shields<br> Compatible with Arduino Mega boards / DFRobot megaADK / Arduino megaADK<br> Extended TTL connection pins for four Serial ports<br> DIP prototyping area makes it easy to add more modules or electronic components<br> 3 Xbee slots<br> 1 microSD slot<br> Power switch between Arduino Mega or external<br> Size: 125 x 57 mm(4.92x2.24") <br> <br> <b>SHIPPING LIST</b><br> Mega Sensor Shield V2.4 (Compatible with Arduino Mega) x1<br>
