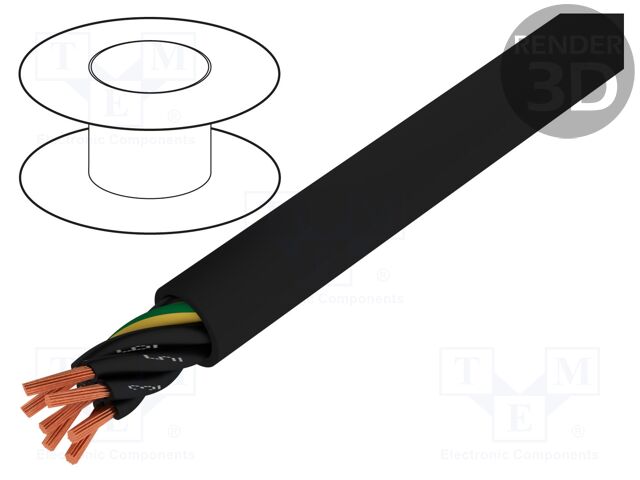

HELUKABEL 10703 | Wire; JZ-600; 25G2,5mm2; unshielded; 0.6/1kV; Cu; stranded; black

HELUKABEL . 10703

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerHELUKABEL
CategoryL1Wires and Cables
CategoryL2Cables
CategoryL3Multicore Cables
CategoryL4Multicore Cables - Unshielded
DimensionUnitmm
Extra Product NameHELUKABEL 10703 | Wire; JZ-600; 25G2,5mm2; unshielded; 0.6/1kV; Cu; stranded; black
atoms1
diameter, length, width26.2
jsonUrlDatad89c54200766979e4318266ef62f2356.5
jsonUrlData23e309cc122052bc85bee
keywordsHELUKABEL, 10703, JZ600/25G2.5, Wires and Cables, Cables, Multicore Cables, Multicore Cables - Unshielded
length_Attrib, width_AttribCable external diameter
moq, multiple, tierMinQty15
MPN10703
qtyInStock, tierMinQty2, Number of cores25
SKUJZ600/25G2.5
snippetHELUKABEL 10703 | Wire; JZ-600; 25G2,5mm2; unshielded; 0.6/1kV; Cu; stranded; blac
tierMinQty350
tierMinQty4100
tierPrice124.6
tierPrice223.36
tierPrice321.66
tierPrice420.11
Type of wirecontrol cable
Kind of wireJZ-600
Shield structureunshielded
Rated voltage0.6/1kV
Wire insulation materialPVC
Kind of coreCu
Core structurestranded
Core section2.5mm
Core markingblack, numbered + ground wire
Insulation colourblack
Cable external diameter26.2mm
Operating temperature-40...80?C
Resistance tomost of chemical compounds,
Earth coreyellow-green
CPR standardE
Kind of materialno flame propagation

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEJZ600/25G2.552555 @ $24.60, 25 @ $23.36, 50 @ $21.66, 100 @ $20.11
