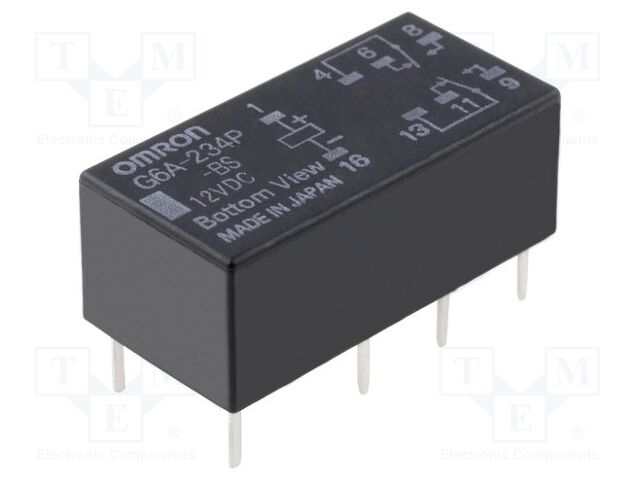

OMRON OCB G6A-234P-BS 12VDC | Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 1A; PCB

OMRON OCB . G6A-234P-BS 12VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6A-234P-BS 12VDC | Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 1A; PCB
atoms, moq, multiple1
jsonUrlDataa27b87f978ddb5abe51ad2f8a88a5a42.
jsonUrlData2623b0d9b24ea709c3805
keywordsOMRON OCB, G6A-234P-BS 12VDC, G6A-234P-BS-12DC
MPNG6A-234P-BS 12VDC
qtyInStock0
SKUG6A-234P-BS-12DC
snippetOMRON OCB G6A-234P-BS 12VDC | Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 1A; PC
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage12V DC
Contact current max1A
AC contacts rating @R0.3A / 125V AC
DC contacts rating @R1A / 30V DC
Switched voltagemax. 220V DC,
Relay variantminiature
MountingPCB
Coil resistance514?
Operate time5ms
Body dimensions20.2x10.1x8.4mm
Release time3ms
Operating temperature-40...70?C
Relay seriesG6A-BS
Contact resistance50m?
Terminal pitch5mm
Coil current23.3mA
Conform to the normBABT
