Square D - QO360 - Circuit Breaker, Miniature, Plug-On, 3-P, 60A, 240VAC - 10k AIR, Common Trip - Allied Electronics & Automation, part of RS Group

Square D QO360; Mini-Circuit Breaker; 60A; 3P; 120/240VAC;

Square D QO™ Standard 3-Pole miniature circuit breaker with Visi-Trip™ indicator, is rated at 60 Amps and 240 Volt AC. Interrupt current rating of this circuit breaker is 10 Kilo-Amps. It measures 2.25 Inch x 2.91 Inch x 3.5 Inch. This 3-Phase circuit breaker with box lugs connection, accommodates aluminum/copper wire of size 8 - 2 AWG. It features common and thermal-magnetic trip function to ensure reliability. This HACR rated circuit breaker supports plug-in mounting. It is suitabl

Miniature Circuit Breaker, Amps 60, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series QO, Phase 3, Series QO, Max. AIR Rating 10kA at 120/240V AC, For Use With QO Load Centers and NQ Panelboards, Terminal Connection Lug, Frame Size 100A/QO, Length 3.12 in, Width 2.25 in, Depth 2.91 in, Min. Operating Temp. 104 Degrees F

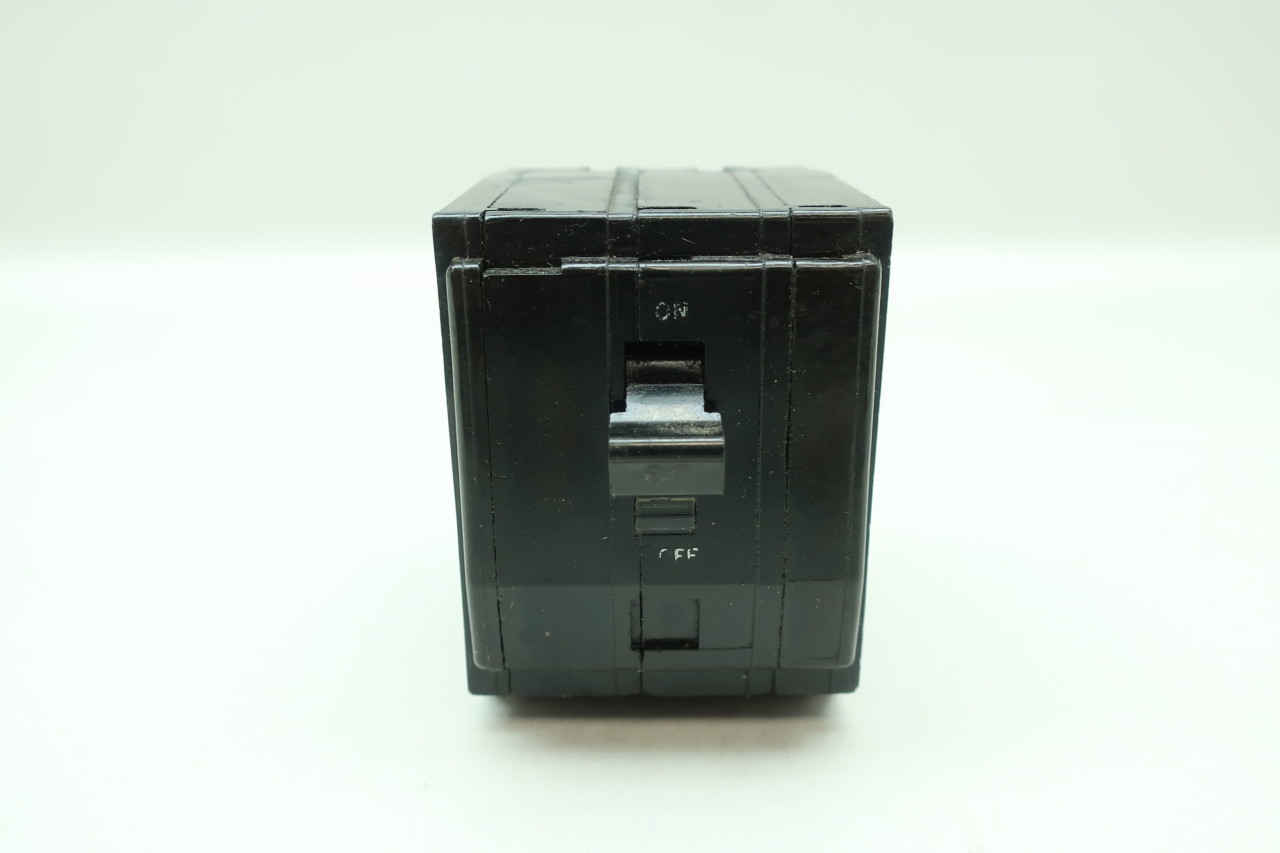

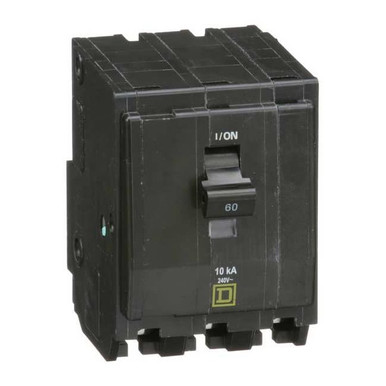

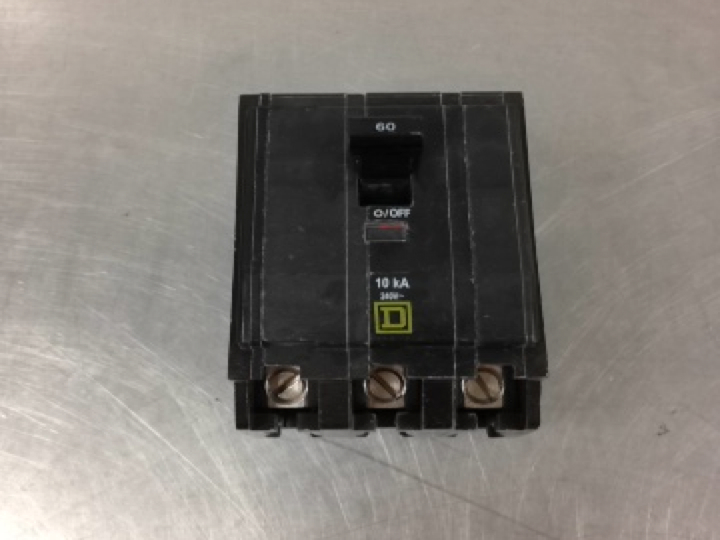

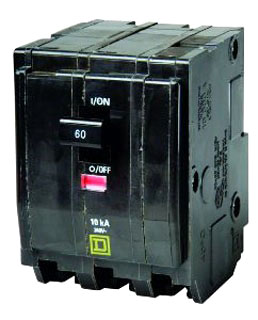

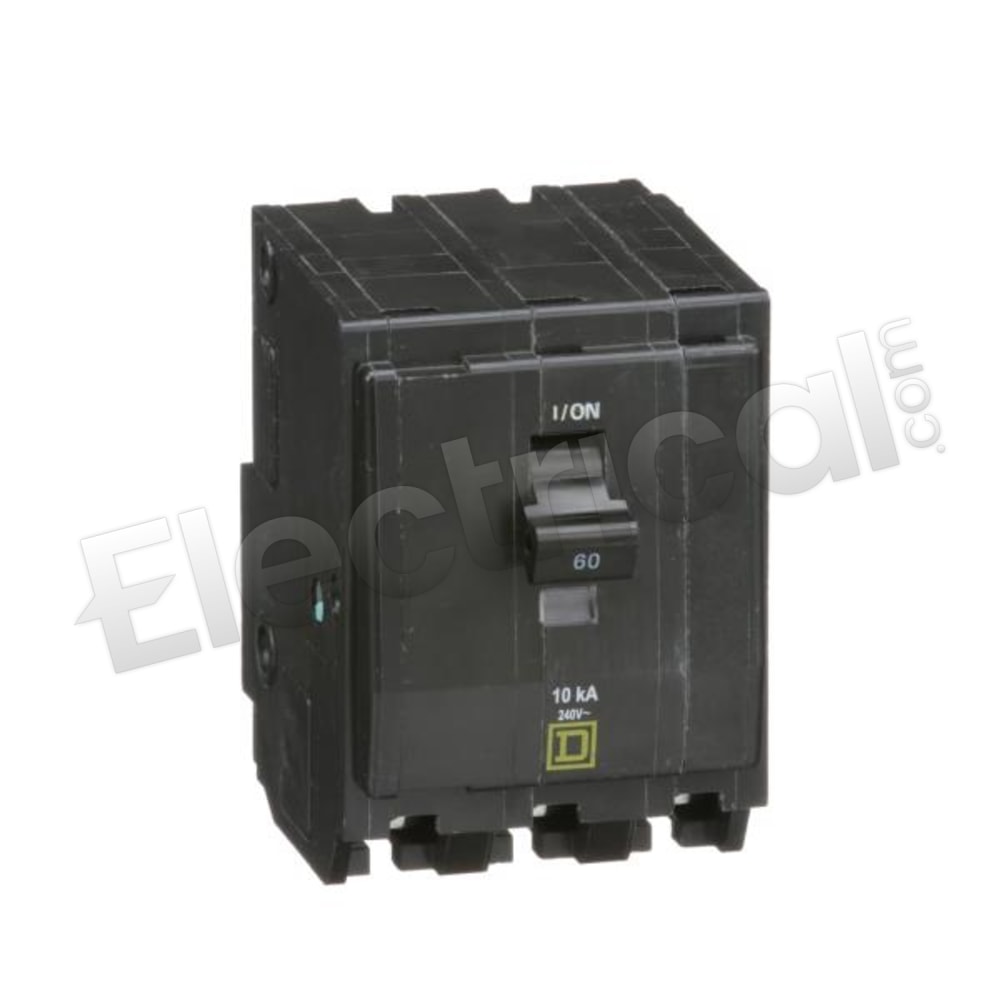

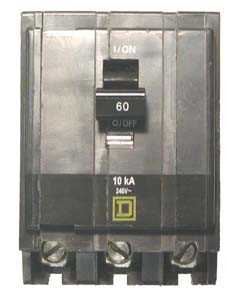

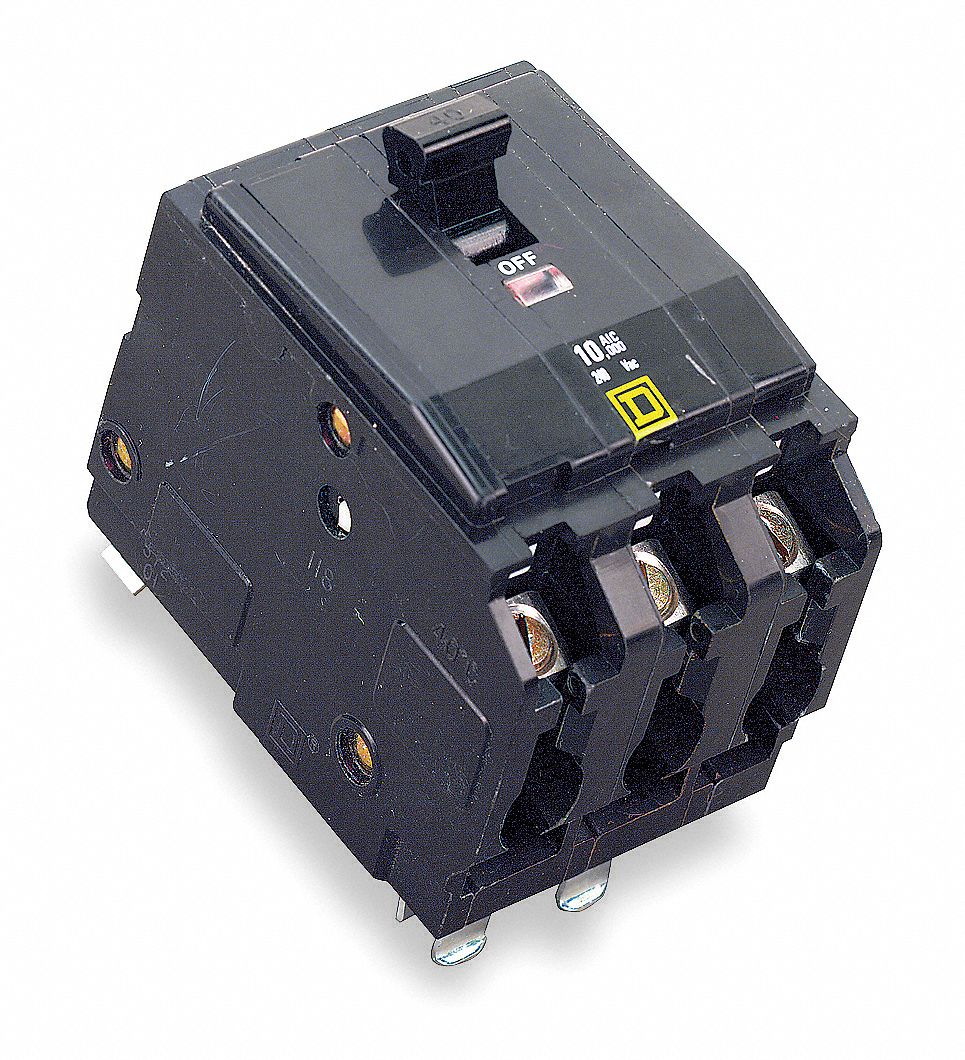

Square D 3 Pole Plug In Circuit Breaker

Unlike fuses, miniature circuit breakers do not have to be replaced or reset after an overcurrent overload which makes them both more convenient and cost-efficient. Rated for aluminum and copper conductors.<br /><br /> Item: Plug In Circuit Breaker<br /> Amps: 60<br /> Number of Poles: 3<br /> Circuit Breaker Type: Standard<br /> AC Voltage Rating: 240VAC<br /> DC Voltage Rating: 48VDC<br /> For Use With: QO Load Centers and NQOD Panelboards<br /> Series: QO<br /> Terminal Connection: Box Lug<br /> Min. Wire Size: 8 AWG<br /> Max. Wire Size: 2 AWG<br /> Length: 3.00"<br /> Width: 2.25"<br /> Depth: 2.91"<br /> Standards: UL Listed, CSA Certified, HACR<br /> Max. AIR Rating: 10 kA
