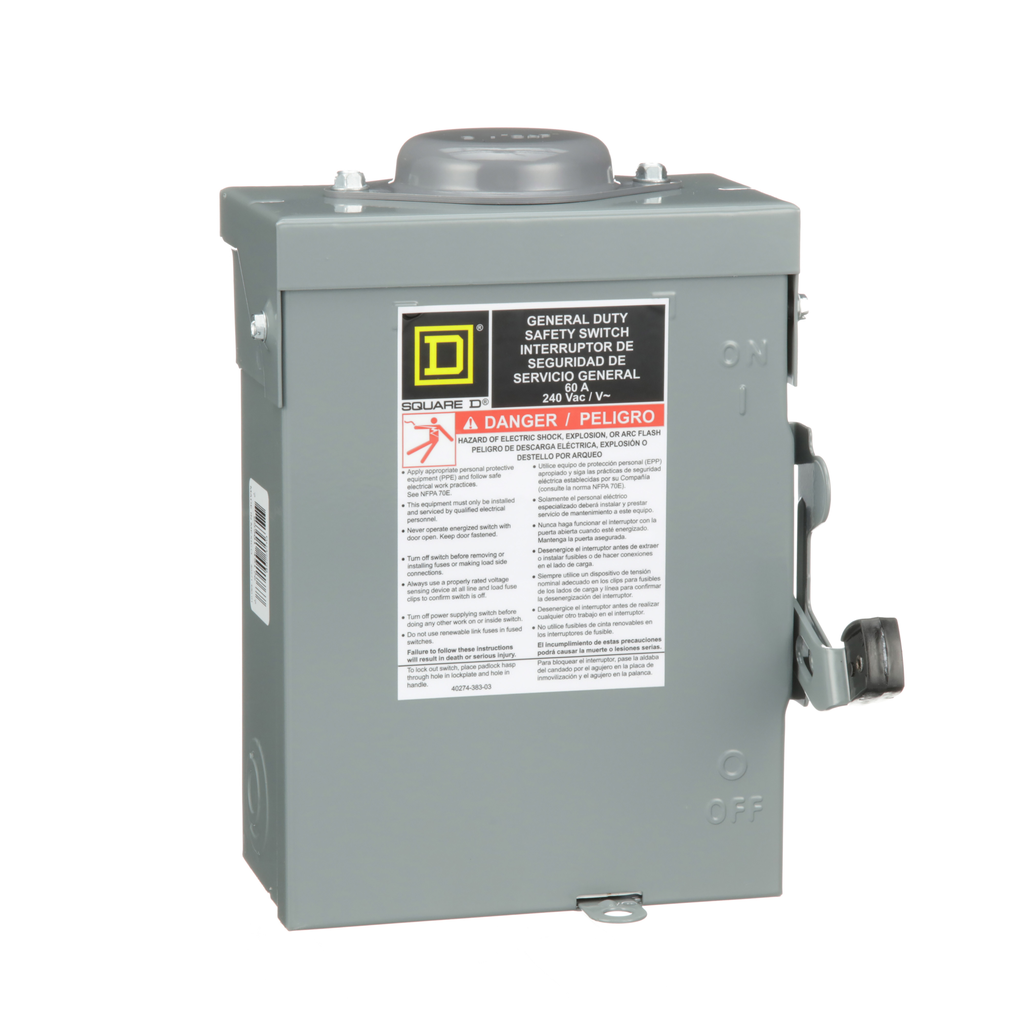

Square D - DU322RB - SWITCH NOT FUSIBLE GD 240V 60A 3P NEMA3R - RS

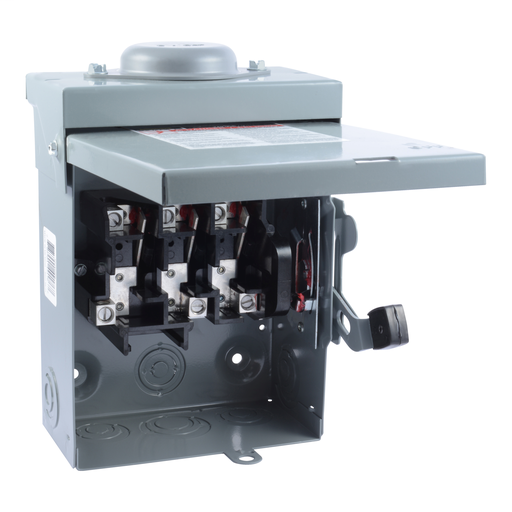

Suitable for use with service entrance equipment, this general-duty safety switch provides a 10kA short-circuit current rating when used with, or protected by, a Class H fuse. It has a 100kA short-circuit current rating when used with, or protected by, a Class R cartridge-type fuse (with a Class R fuse kit installed). Features include visible blades for positive identification that the switch is Off, a quick-make, quick-break operating mechanism, and spring-reinforced, plated-copper fuse clips. The lugs are suitable for aluminum or copper conductors. There are multiple padlock provisions in the Off position. An equipment grounding kit, available separately, is required.<br /><br /> Item: Safety Switch<br /> Protection Method: Nonfusible<br /> Duty: General<br /> Amps AC: 60<br /> Voltage: 240VAC<br /> Phase: 3<br /> HP: 15 HP @ 240VAC<br /> NEMA Enclosure Type: 3R<br /> IP Rating: 14<br /> Metallic / Non-Metallic: Metallic<br /> Material of Construction: Galvannealed Steel<br /> Number of Wires: 3<br /> Number of Poles: 3<br /> Contact Form: 3PST<br /> Height: 9.6"<br /> Width: 7.7"<br /> Depth: 3.8"<br /> Standards: UL Listed
