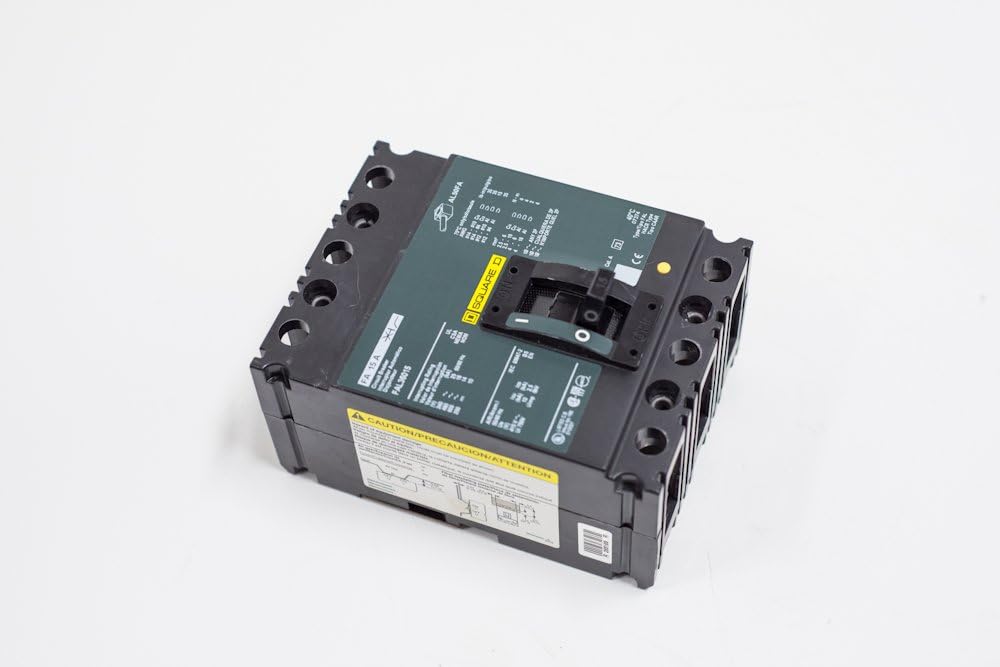

Square D - FAL34025 - Molded Case Circuit Breakers 3 Pole 25A Thermal Magnetic 480V FA Series - Allied Electronics & Automation, part of RS Group

'Circuit Breaker, Amps 25, Number of Poles 3, Circuit Breaker Type Standard, AC Voltage Rating 480VAC, DC Voltage Rating 250VDC, For Use With -, Series FAL, Trip Type Thermal Magnetic, Terminal Connection Lug, Max. AIR Rating Not Rated, Phase Connection ABC, Mounting Free Standing, Height 6.00 In., Width 4.50 In., Depth 4.16 In., Min. Wire Size 14 AWG (Cu), 12 AWG (Al), Max. Wire Size 4 AWG, Instantaneous Trip Fixed, High Amp Trip Setting 600A, Low Amp Trip Setting 275A, Frame Size 100A/FA'

Square D FAL34025 25 amp 480 volt 3 pole grey label feed thru breaker TESTED Square D Used

FAL34025 - Square D / Schneider Electric - Fal, 25 Amp, 3 Pole, 480 Volt, Molded Case Circuit Breakers From Square D / Schneider Electric

<p><strong>Square D FAL34025 FA/LA Molded Case Circuit Breaker, 480V, 25A, 3P</strong></p><p><strong>Specifications:</strong></p><ul><li>Product or component type: Circuit breaker&nbsp;&nbsp; &nbsp;</li><li>Range of product: I-Line</li><li>Trip unit technology: Thermal-magnetic</li><li>Breaking capacity code: A</li><li>Line Rated Current: 25 A</li><li>Poles description: 3P</li><li>Breaking capacity: &nbsp;&nbsp;&nbsp;<ul><li>18 kA at 480 V AC</li><li>25 kA at 240 V AC</li><li>10 kA at 250 V DC&nbsp;&nbsp; &nbsp;</li></ul></li><li>System Voltage: 250 V DC / 480 V AC</li><li>Mounting mode: Unit mount</li><li>Electrical connection:&nbsp;&nbsp;&nbsp;&nbsp;<ul><li>Lugs load</li><li>Lugs line&nbsp;&nbsp; &nbsp;</li></ul></li><li>AWG gauge: &nbsp;&nbsp;&nbsp;<ul><li>AWG 14...AWG 4 (copper) 1 cable(s)</li><li>AWG 12...AWG 4 (aluminium) 1 cable(s)</li></ul></li><li>Terminal identifier: AL50FA</li><li>Magnetic hold current: 275 A</li><li>Magnetic tripping current: 600 A</li><li>Phase connection: ABC</li></ul>
