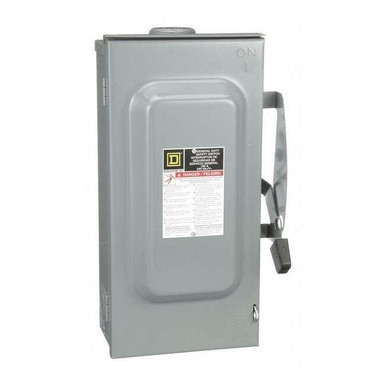

The Square D by Schneider Electric 100 Amp 240 Volt 3 Pole Outdoor Not Fusible General Duty Safety Switch is designed for residential and commercial applications where durability and economy are prime considerations. Typical loads are lighting, air conditioning and appliances. This switch is suitable for use as service entrance equipment when equipped with a service grounding kit. The switch is UL listed, File E2875, and meet or exceed the NEMA standard KS1. For more than 100 years the Square D brand safety switch has been the unchallenged leader in the market. We've continued our tradition of innovation, developing new features that provide an unsurpassed level of performance, reliability, safety and ease of installation. This tradition has resulted in the Square D brand being preferred two to one over our closest competitor.

Mfr Brand Name: SQUARE D / Catalog No.: DU323RB / Product Name: SQUARE D DU323RB U 100A 240V 3PH NON-FUSED NEMA 3 USED / Amps: 100 / Volts: 240 / Phase: 3 / Protection: Non-Fused / NEMA: 3

Suitable for use with service entrance equipment, this general-duty safety switch provides a 10kA short-circuit current rating when used with, or protected by, a Class H fuse. It has a 100kA short-circuit current rating when used with, or protected by, a Class R cartridge-type fuse (with a Class R fuse kit installed). Features include visible blades for positive identification that the switch is Off, a quick-make, quick-break operating mechanism, and spring-reinforced, plated-copper fuse clips. The lugs are suitable for aluminum or copper conductors. There are multiple padlock provisions in the Off position. An equipment grounding kit, available separately, is required.<br /><br /> Item: Safety Switch<br /> Protection Method: Nonfusible<br /> Duty: General<br /> Amps AC: 100<br /> Voltage: 240VAC<br /> Phase: 3<br /> HP: 30 HP @ 240VAC<br /> NEMA Enclosure Type: 3R<br /> IP Rating: 14<br /> Metallic / Non-Metallic: Metallic<br /> Material of Construction: Galvannealed Steel<br /> Number of Wires: 3<br /> Number of Poles: 3<br /> Contact Form: 3PST<br /> Height: 17.5"<br /> Width: 10.5"<br /> Depth: 6.5"<br /> Standards: UL Listed
