PATTERSON . FHVTCC

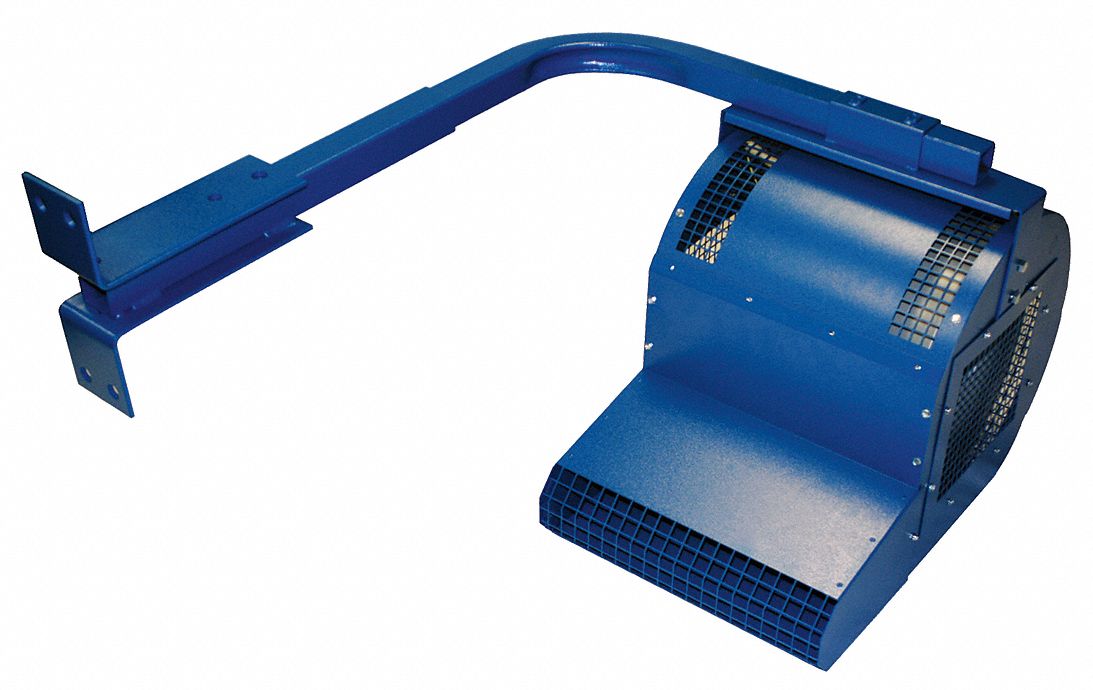

High-Velocity Low-Profile Trailer Coolers Open dripproof motor Ball bearings Ship with 2-pc. 2-way adjustable swivel wall-mount bracket Slim-profile coolers mount near trailer ceiling height to stay out of the way of forklifts and allow more room at the end of the trailer. Produce high-velocity air circulation to cool the longest trailers. Single speed. Galvanized wheel. 16-ga. steel housing with blue powder-coated finish. This listing is for each. This item requires special shipping, additional charges may apply. Technical Specification Item Air Circulator Type Trailer Cooler Drive Type Direct Speed Single Wheel Dia. 10 1/2 in Wheel Width (In.) 11 in CFM Range 2800 CFM @ 0.000-In. SP 2800 Max. Inlet Temp. (Deg. F) 112 Degrees F Max. Ambient Temp. (F) 112 Degrees F Voltage 230/460 Hz 60 Phase 3 Full Load Amps 2.4/1.2 Motor HP 3/4 hp Motor RPM 1075 Motor Type Open Dripproof Bearing Type Ball Blower RPM 1, 075 Housing Height (In.) 16 in Housing Width (In.) 16 in Housing Depth (In.) 25 in Discharge Height (In.) 4 in Discharge Width (In.) 16 in Mounting Swivel Wall Housing Material 16 Gauge Steel Housing Finish Blue Powder Coated Wheel Material Galvanized Speed Controllable no Includes 2 Piece Adjustable Swivel Wall Mount
