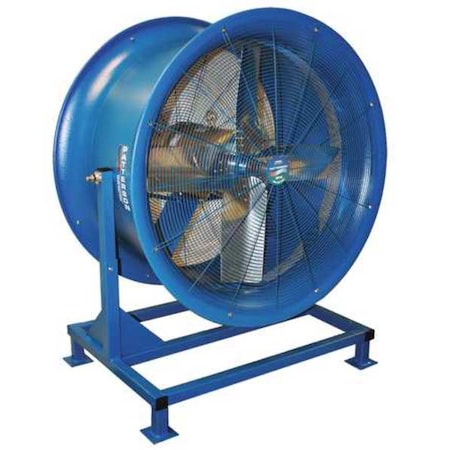

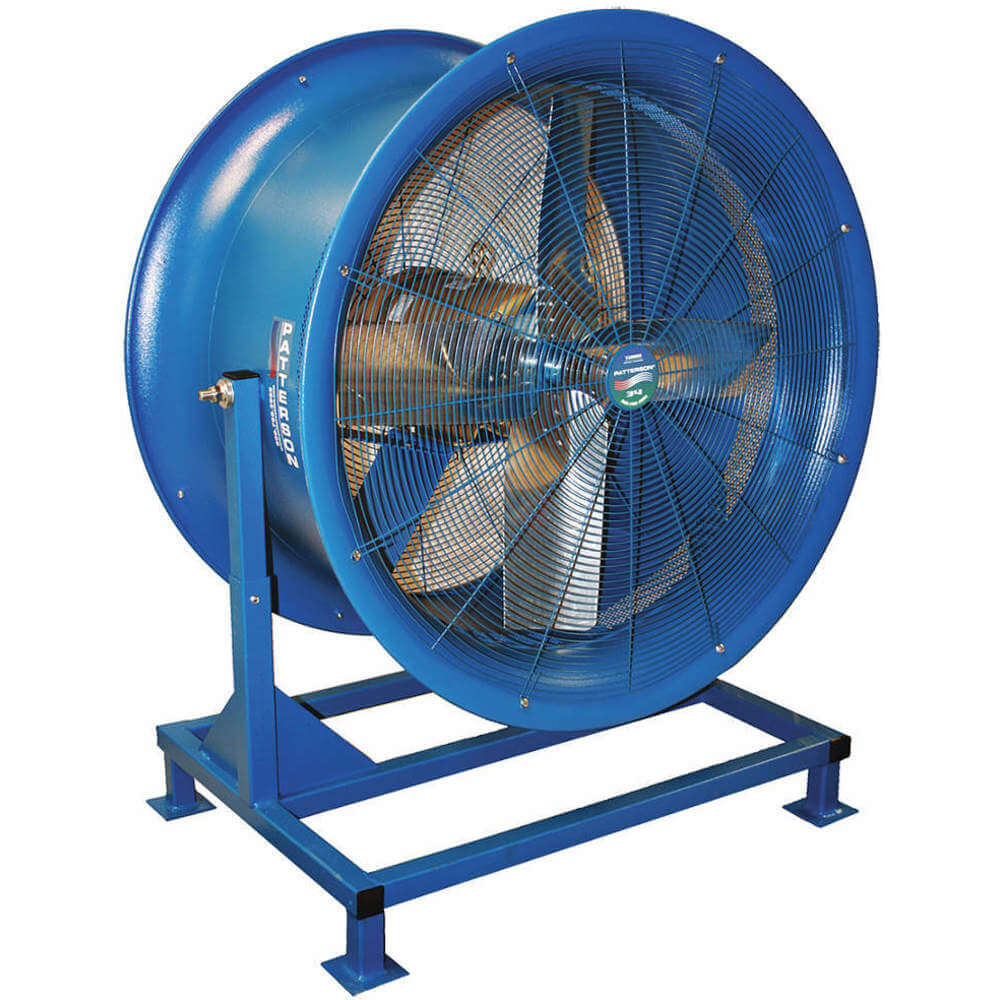

'High-Velocity Industrial Fan, Blade Dia. 34 In., Non-Oscillating, 1 Speeds, Voltage 208-230/460VAC, 3 Phase, CFM High 17,000, Air Velocity @ 20 Ft. 1000, Motor HP 3, Motor RPM 1165, Operating Amps 9.9-9.2/4.6, Fan Mounting Location Floor, Fan RPM 1165, Max. Ambient Temp. 105 Degrees F, Hz 60, Watts 2250, Motor Type 3 Phase, Drive Type Direct, Outside Dia. 43-1/2 In., Height 43-1/2 In., Width 43-1/2 In., Max. Depth 25-1/2 In.'

High-velocity industrial mobile and stationary floor fans have a high-rpm motor and a tubular housing for pushing air at higher speeds over longer distances than fans with a standard open-housing design. They provide more coverage than a typical industrial fan for cooling long aisles and large areas in warehouses and manufacturing plants. These air circulators have a totally enclosed motor to keep out water and debris. Industrial mobile and stationary floor fans sit close to the ground to resist tipping over, even when bumped, while providing a powerful stream of air at floor level. These air circulators are often used for spot cooling workstations or production lines and for general cooling in manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact. Mobile floor fans have wheels, so they can be rolled from one location to another as cooling needs change. Stationary floor fans are used in applications where fans don't need to be frequently relocated, but they are generally light enough to carry between locations. This listing is for each. Technical Specification Item High-Velocity Industrial Fan Blade Diameter 34 Wheeled Base Mobile Oscillation Non-Oscillating Watts 2250 Number of Speeds 1 Voltage 208-230/460VAC Phase 3 Air Flow 17, 000 CFM Motor HP 3 RPM 1165 Amps 9.9-9.2/4.6 Fan Mounting Location Floor Air Velocity @ 20 Ft. 1000 Air Velocity @ 40 Ft. 700 Air Velocity @ 60 Ft. 600 Air Velocity @ 80 Ft. 500 Assembly Required Yes Max. Ambient Temp. 105 Degrees F Hz 60 Motor Enclosure Totally Enclosed Air Over Motor Insulation CLASS F Motor Type 3 Phase Thermal Protection NONE Bearing Type Ball Height 43-1/2 Width 43-1/2 Depth
