Proximity Series PLS2 Paddle Level Switch, 24 VDC PLS2-E-1-3. ✅Proximity authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

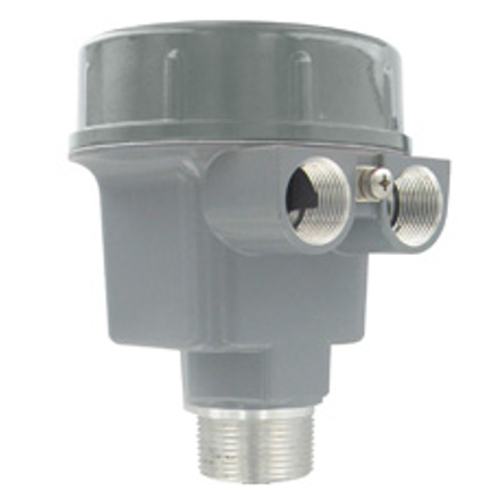

Proximity . PLS2-E-1-3

Gallery

Attributes

Brand name, Manufacturer name, BrandProximity
ManufacturerProximity Dwyer Instruments, Inc.
Weight2.6 2.65
WeightUnitlbs
Weight_AttribWeight
moq, multiple, tierMinQty1, Item_package_quantity, Number_of_items, PackageQuantity1
MPN, SKU, Keyword, Mpns, PartNumber, Part_numberPLS2-E-1-3
qtyInStock0
snippetProximity Series PLS2 Paddle Level Switch, 24 VDC PLS2-E-1-3. ✅Proximity authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
tierPrice1342.80
ServiceDry powder or bulk materials compatible with wetted materials
Wetted Materials>Paddle: 304 SS;> Exposed shaft: 303 SS;> Shaft seal: NBR;> Process connection: Aluminum
Temperature Limits>Process: -13 to 176°F (-25 to 80°C); >Ambient: -4 to 140°F (-20 to 60°C)
Pressure Limits11.6 psi (0.8 bar)
Power Consumption2.5 watt
EnclosureAluminum, powder coated
Enclosure Rating>NEMA 4 (IP66);> Rated for Class II & III, Div. 1, Group E, F, G
Switch TypeSPDT micro switch
Electrical Rating5 A at 250 VAC, 3 A at 30 VDC
Electric ConnectionsScrew terminals
Conduit Connection3/4" female NPT
Process Connection1-1/4" male NPT
Mounting OrientationSide or top mounting
SensitivityMinimum material density of 6 lb/ft3 (96 kg/m3)
Permitted Mechanical Loading>Standard shaft: 67 lbf (300 N) max;> Optional extension: 22 lbf (100 N) max
Agency ApprovalsCE, FM
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
AsinB01HFIL4BS
Bullet_pointEnclosure Rating: NEMA 4 (IP66); Rated for Class II & III, Div. 1, Group E, F, G Power Requirements: 24 VDC Pressure Limits: 11.6 psi (0.8 bar) Temperature Limits: Process: -13 to 176°F (-25 to 80°C); Ambient: -4 to 140°F (-20 to 60°C) Wetted Materials: Paddle: 304 SS; Exposed shaft: 303 SS; Shaft seal: NBR; Process connection: Aluminum
ClassificationId5739467011
CurrencyUSD
DisplayNameLimit Switches
Height2560 500 75 9.0
Identifier0714452101610 714452101610
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_nameProximity Explosion-Proof Paddle Level Switch, PLS2-E-1-3, 24 VDC Power Supply
Item_type_keywordelectronic-component-limit-switches
Item_weight2.65
Length12.0
Linkhttps://m.media-amazon.com/images/I/31QyAxYXP8L._SL75_.jpg https://m.media-amazon.com/images/I/31QyAxYXP8L.jpg https://m.media-amazon.com/images/I/71opcpy9O+L.jpg https://www.amazon.com/gp/bestsellers/industrial https://www.amazon.com/gp/bestsellers/industrial/5739467011
List_price207.0
ProductTypeMECHANICAL_COMPONENTS
Product_descriptionThe Series PLS2 is an electromechanical level switch designed for level monitoring of bulk materials. The rotating measuring vane is driven by a brushless synchronous motor at one revolution per minute. As product builds up, the paddle rotation is impeded and the resulting motor torque activates the output switch and stops the motor. A spring mechanism reactivates the motor and returns the switch to normal state when the material no longer impedes the paddle rotation. A torque adjusting mechanism eliminates the need for different sized paddles. The PLS2 is designed with the industry standard 1-1/4" male NPT connection and unit can be side or top mounted.
Product_site_launch_date2013-09-10T07:47:41.283Z
Rank1009365 4776
StrippedMpnsPLS2E13
Supplier_declared_dg_hz_regulationunknown
TitleIndustrial & Scientific Limit Switches
Typeean upc
Unitinches pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website biss_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width12.0 1710 334 50

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotPLS2-E-1-3111 @ $342.80
usmegastore.comPLS2-E-1-31-211 @ $360.10

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Proximity Explosion-Proof Paddle Level Switch, PLS2-E-1-3, 24 VDC Power Supply
Brand: Proximity
The Series PLS2 is an electromechanical level switch designed for level monitoring of bulk materials. The rotating measuring vane is driven by a brushless synchronous motor at one revolution per minute. As product builds up, the paddle rotation is impeded and the resulting motor torque activates the output switch and stops the motor. A spring mechanism reactivates the motor and returns the switch to normal state when the material no longer impedes the paddle rotation. A torque adjusting mechanism eliminates the need for different sized paddles. The PLS2 is designed with the industry standard 1-1/4" male NPT connection and unit can be side or top mounted.
Details
  • Power Requirements: 24 VDC
  • Pressure Limits: 11.6 psi (0.8 bar)
  • Temperature Limits: Process: -13 to 176°F (-25 to 80°C); Ambient: -4 to 140°F (-20 to 60°C)
  • Wetted Materials: Paddle: 304 SS; Exposed shaft: 303 SS; Shaft seal: NBR; Process connection: Aluminum
  • Enclosure Rating: NEMA 4 (IP66); Rated for Class II & III, Div. 1, Group E, F, G
