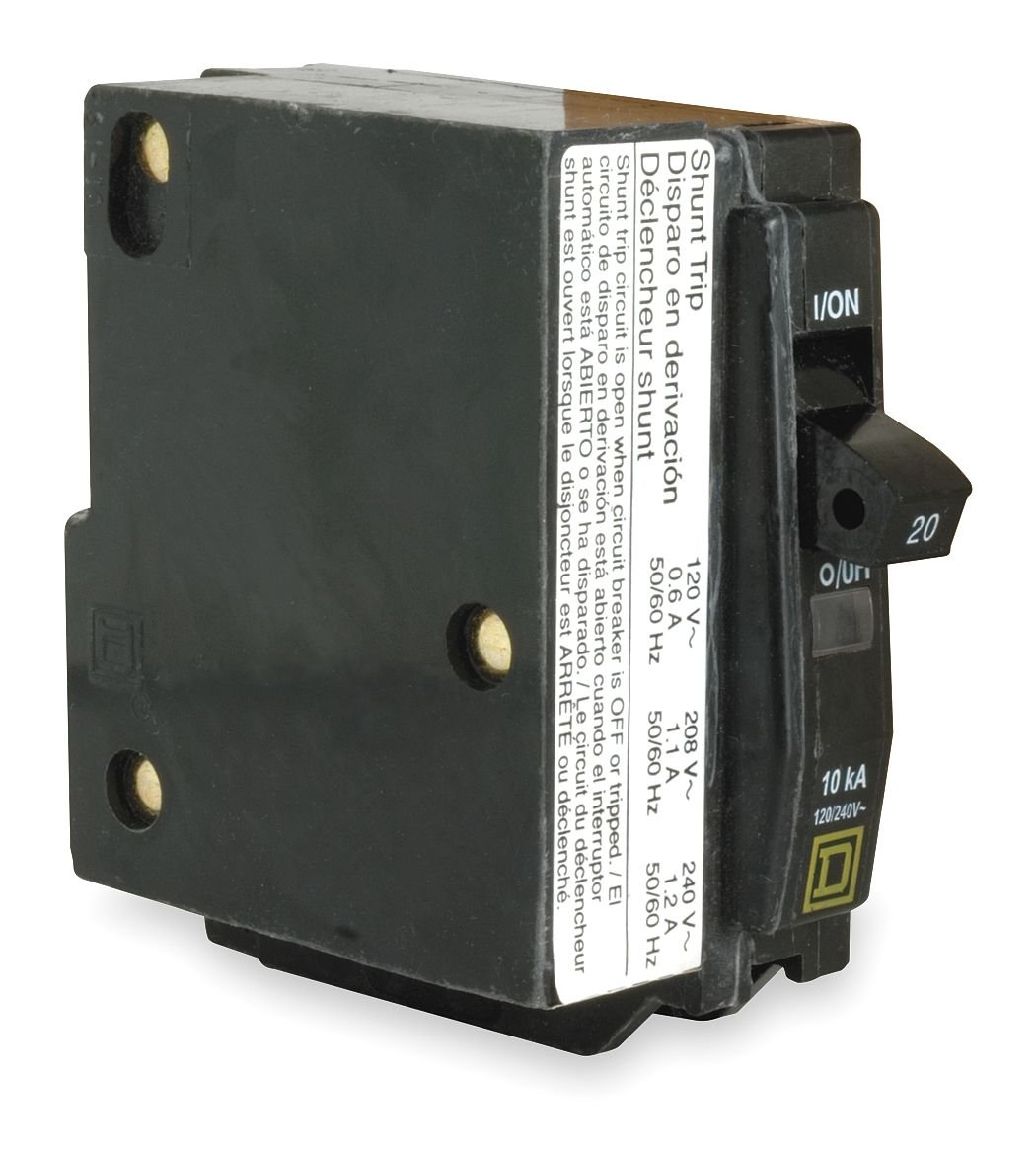

Technical Specification Item Miniature Circuit Breaker Amps 25 AC Voltage Rating 120/240VAC Circuit Breaker Type Shunt Trip Number of Poles 1 DC Voltage Rating 48VDC Circuit Breaker Actuator Paddle Circuit Breaker Mounting Style Bolt On Compatible Panelboard/Load Center Series QO Phase 1 Series QOB Max. AIR Rating 10kA at 120/240VAC For Use With Square D NQOD Panelboards Terminal Connection Pressure Plate Frame Size 100A/QO Length 3 Width 1.5 Depth 2.91 Min. Operating Temp. 104 Degrees F Max. Operating Temp. 104 Degrees F Min. Wire Size 14 AWG Max. Wire Size 8 AWG Standards CSA, UL Listed This listing is for each. Product Specification Amperage Rating 25 Application HACR RATED Brand QO Catalog Description Square D, MINIATURE CIRCUIT BREAKER 120/240V 25A, 1-Phase, 10kA, 120/240 Vac, 1P, 25A, Calibrated for use at 40 degrees C. See Data Bulletin 0100DB0101 for re-rating information., Fiberglass filled thermoset molding material., HACR rated, Miniature Circuit Breaker, Pressure Plate #14 to #8 AWG(Al/Cu), QO, Standard Bolt-On, UL Listed - CSA Certified Connection PRESSURE PLATE #14 TO #8 AWG(AL/CU) 00785901729280 Height 3 Interrupt Rating 10KA Item Status A Length 2.91 Material FIBERGLASS FILLED THERMOSET MOLDING MATERIAL. Mfr. # QOB1251021 Number Of Poles 1 Operating Temperature CALIBRATED FOR USE AT 40 DEGREES C. SEE DATA BULLETIN 0100DB0101 FOR RE-RATING INFORMATION. Phase 1-PHASE Special Features STANDARD BOLT-ON Standard UL LISTED - CSA CERTIFIED Sub-Brand QO Type MINIATURE CIRCUIT BREAKER Voltage Rating 120/240 VAC Width 1.5
