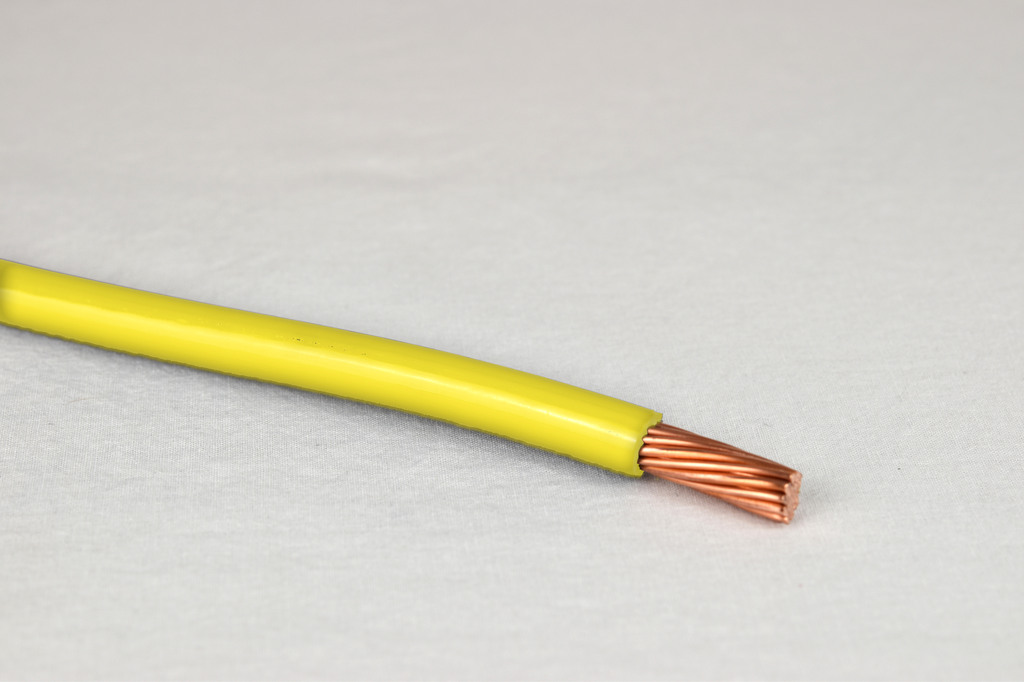

THHN - 1 AWG - 19 Strands - Yellow - Soft Annealed Copper - 1000' Reel | Mayer Electric

THN . B03899

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerTHN
DimensionUnitfoot
Extra Product NameTHHN - 1 AWG - 19 Strands - Yellow - Soft Annealed Copper - 1000' Reel | Mayer Electric
UPC980100233761
diameter, height, width1427.1653543307086
height_Attrib, width_AttribOuter Diameter
jsonUrlData/Product/THN-THHN-1-19-CU-STR-YEL-10000-980100233761
jsonUrlData271883d9a-2f32-48cb-a9f3-ad4300539391
length1000.0
length_AttribLength
moq, multiple, tierMinQty11
MPNB03899
qtyInStock0
SKUTHN1YL10000
tierPrice12.48
THHN or T90 NylonDry locations not to exceed 90?C
THWN-2Wet or dry locations not to exceed 90?C or not to exceed 75?C when exposed to oil
TWN75Wet locations at temperatures not to exceed 75?C
MTWWet locations or when exposed to oil at temperatures not to exceed 60?C or dry locations at temperatures not to exceed 90?C (with ampacity limited to that for 75?C conductor temperature per NFPA 79)
AWMDry locations at temperatures not to exceed 105?C when rated AWM and used as appliance wiring material
Current Rating110 Ampere (60 Deg C), 130 Ampere (75 Deg C), 150 Ampere (90 Deg C)
Jacket Thickness7 MIL
Insulation Thickness50 MIL
Outer Diameter435 MIL
ApprovalUL (Canada and US)
Stranding19 Strands
ColorYellow
MaterialSoft Annealed Copper
Size1 AWG
Length1000'
UNSPSC26121614
TypeTHHN
Voltage Rating600 V
Jacket MaterialNylon
Direct Burial, Shielded, GroundedNo
Wet Location UseYes
Insulation MaterialPVC
Temperature Rating90 Deg C (Dry), 75 Deg C (Oil/Wet)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comTHN1YL10000111 @ $2.48
