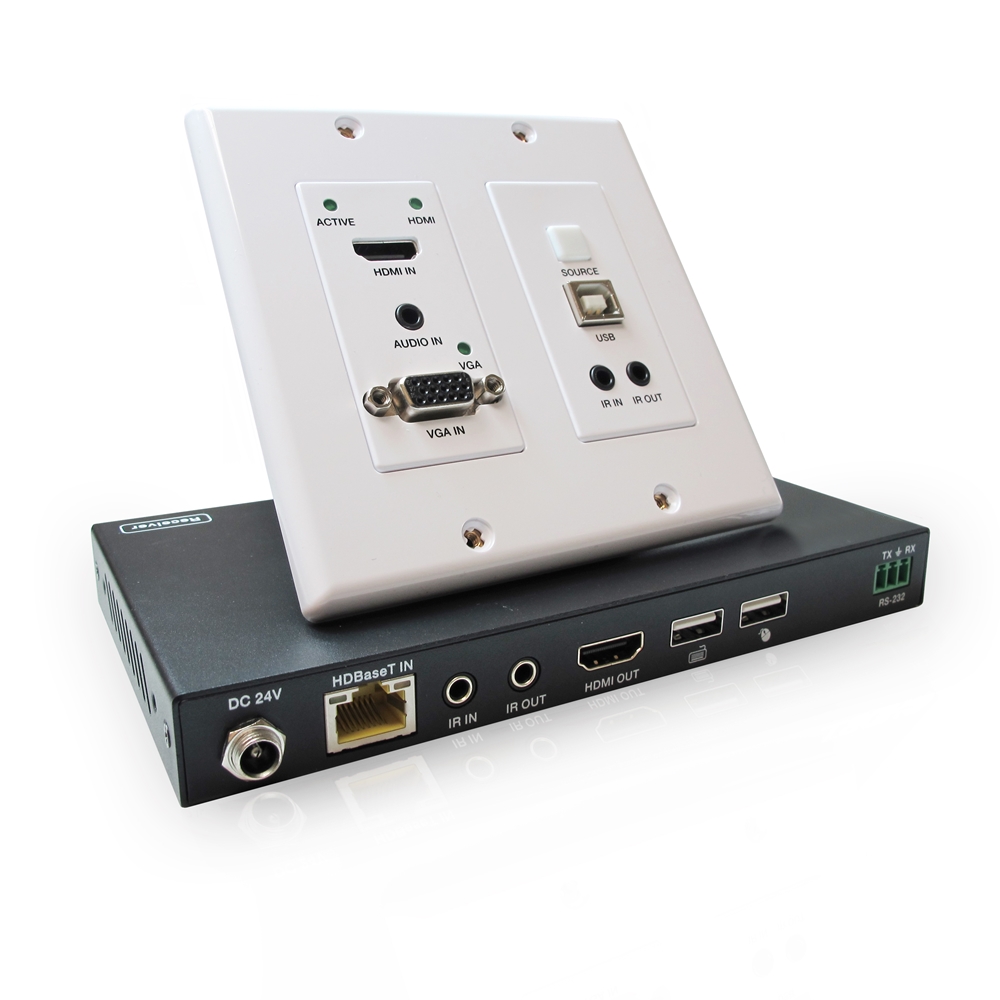

CHE-HDBTWP240K

<p><b>Comprehensive CHE-HDBTWP240K 4K 18G Wall Plate Extender TX/RX Kit with HDMI, USB, VGA and Audio Up to 230ft; Automatic and Manual Switching Modes; HDMI 2.0b 18Gbps</b></p> <p>The Comprehensive CHE-HDBTWP240K Wall Plate Extender is perfect for all commercial AV and IT installations and supports HDMI, USB 2.0 and VGA with audio inputs within a standard 2-Gang US Decora wall box.</p> <b>Key Features</b><ul> <li>Transmission over single CAT6/6a/7 cable up to 131 feet (40 meters) distance for 4K@60Hz(4:4:4) or up to 230 feet (70 meters) distance for 1080p@60Hz</li> <li>HDMI input solutions up to 4K2K@60Hz(4:4:4), 4K2K@30Hz, 1080p@120Hz</li> <li>Supports 7.1 channels HD audio format</li> <li>Built-in scaling for VGA input</li> <li>Automatic and manual switching modes</li> <li>HDMI 2.0b 18Gbps</li> <li>HDCP 2.2 compliant</li> <li>Two-way IR, RS-232 and USB 2.0 supported</li> <li>2-Gang US Decora Wall Plate</li> <li>24V POC is supported</li></ul> <b>Specifications</b><ul> <li>Wall plate Transmitter:</li> <li>Input Ports: HDMI, VGA, USB Type-B, 3.5mm Stereo Audio, IR In (Phoenix jack), RS-232 (Phoenix jack)</li> <li>Output Ports: Out (RJ-45), IR Out (Phoenix jack)</li> <li>Video Resolutions: HDMI: 4K2K@50/60Hz 4:4:4 (max), VGA: 1080P@50/60Hz 4:4:4 (max)</li> <li>Dimension: 3.6"x4.13"x1.7"</li> <li>Weight: 0.9lbs</li> <li>Receiver:</li> <li>Input Ports: In (RJ-45), IR In (Phoenix jack), RS-232 (Phoenix jack), USB 2.0 (Type A) x2, Service (micro USB)</li> <li>Output Ports: Out (RJ-45), IR Out (Phoenix jack)</li> <li>HDMI Compliance: 2.0b</li> <li>HDCP Compliance: 2.2 & 1.4</li> <li>Power Supply: Input AC100-240V 50/60Hz, Output DC 24V/1A (US/EU standards, CE/FCC/UL certified)</li> <li>Power Consumption: 7.5Ws</li> <li>ESD Protection: Human Body Model: ±8kV (Air Discharge) & ±4kV (Contact Discharge)</li> <li>Dimension: 6.78"x3.83"x0.78"</li> <li>Weight: 1.0lbs </li></ul>
