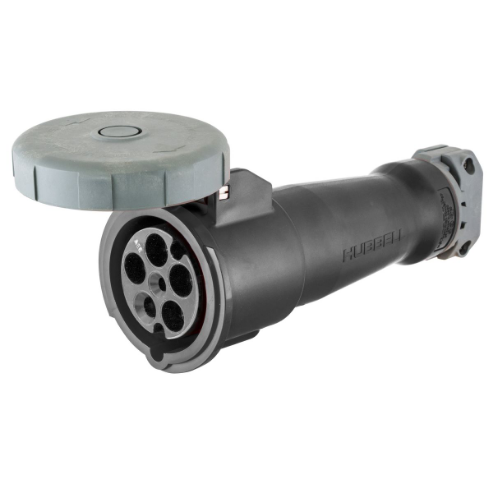

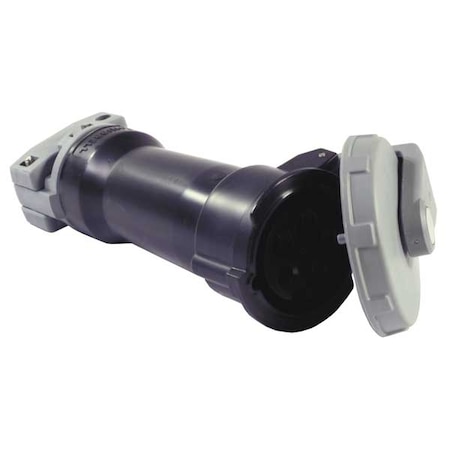

HBL520C5W-Hubbell-Pin and Sleeve

IEC Nonmetallic Watertight Pin and Sleeve Devices Designed and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating. This listing is for each. Amps 20 Clamping Range 0.330 - 0.830 Color Black Finish Matte Length 8.54 Material Zytel 801 Nylon Housing Number of Poles 4 Number of Wires 5 Specification UL Listed, CSA Certified Style Outdoor - 4X (Watertight, Washdown), IP67 Suitability, Indoor - 12K (Dust-tight, Falling dirt) Temperature -40°C - 75°C Type Pin and Sleeve Connector Voltage 347 / 600 AC - 3 Phase Y Width 3.94 Wire Size 14 - 10 AWG Product Weight 1.65 Catalog Page BBV11, Page 10-68 Notes Every Hubbell non-metallic Pin and Sleeve product is designed to meet the International Standard IEC 60309-1 and IEC 60309-2. This device standard calls out singly rated, non-interchangeable configuration for every voltage and type of service. IP67 Suitability. Color Coded Housings IEC pin and sleeve devices are color coded by voltage for easy identification Watertight Neoprene Sealing Glands Provide a reliable seal at the cable entry point. Prevents infiltration of contaminants Self-Closing Gasketed Cover Detents into position to fully close automatically. Corrosion-resistant hardware Insulated Non-Metallic Housing Super tough, non-conductive and chemical resistant for heavy duty industrial environments Gasketed Sealing Ring Provides watertight seal when mated with receptacle or connector Lockout/Tagout Tapered opening on plug shroud accommodates up to 3/8 inch (9.7mm) lock shackle diameter Solid One-Piece Pins Machined from solid brass for longer life and reliable electrical contact Liquidtight Conduit Adapters Machined aluminum adapters are

IEC Nonmetallic Watertight Pin and Sleeve DevicesDesigned and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating.<br /><br /> Item - Plugs and Receptacles: Watertight Pin and Sleeve Connector<br /> Body Material - Pin and Sleeve: Zytel 801 Nylon<br /> Amps - Plugs and Receptacles: 20<br /> Voltage - Plugs and Receptacles: 347/600VAC<br /> Color - Plugs and Receptacles: Black<br /> Number of Poles: 4<br /> Number of Wires: 5<br /> Phase - Electrical: 3Y<br /> Switch Rated: No<br /> Grounding Style: IEC<br /> HP: 7-1/2<br /> Features: Abuse Resistant<br /> Standards: UL Listed, CSA Certified, IEC 60309-1 and 60309-2<br /> Item: Watertight Pin and Sleeve Connector
