SP-200-15 MEAN WELL Power Supplies - Jotrin Electronics
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| JT34-SP-200-15 | 1 | 178 | 1 | ||
 TME | SP-200-15 | 1 | 1 | ||
| electricautomationnetwork.com | SP-200-15 | 1 | 1 | ||
| RS Online | 6448133 | 1 | 1 | ||
| us.rs-online.com | 70327877 | 1 | 1 | 1 @ $85.40 | |
| Jameco | 202060 | 1 | 1 | ||
 Radwell | SP-200-15 | 1 | 1 | ||
| Allied Electronics | 70327877 | 1 | 1 | ||
| Digi-Key | 7706899 | 1 | 1 | ||
| SP-200-15 | 1 | -2 | 1 | 1 @ $48.51 | |
| AmazonSC | B01N7D57Z6 | 1 | 1 | 1 @ $39.99 | |
| 644-8133 | 1 | 1 | |||
 AmazonTP | B005T6PG72 | 1 | 1 | 1 @ $68.67 | |
 AmazonTP | B00NBN84BK | 1 | 1 | 1 @ $69.73 | |
 Onlinecomponents.com | SP-200-15 | 1 | 4 | 1 | 1 @ $52.64, 10 @ $50.01, 20 @ $47.51, 50 @ $45.13 |
 AmazonUNK | B01G73NCIU | 1 | -2 | 1 | 1 @ $71.18 |
| AmazonUNK | B00NBN84BK | 1 | -2 | 1 | 1 @ $69.73 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

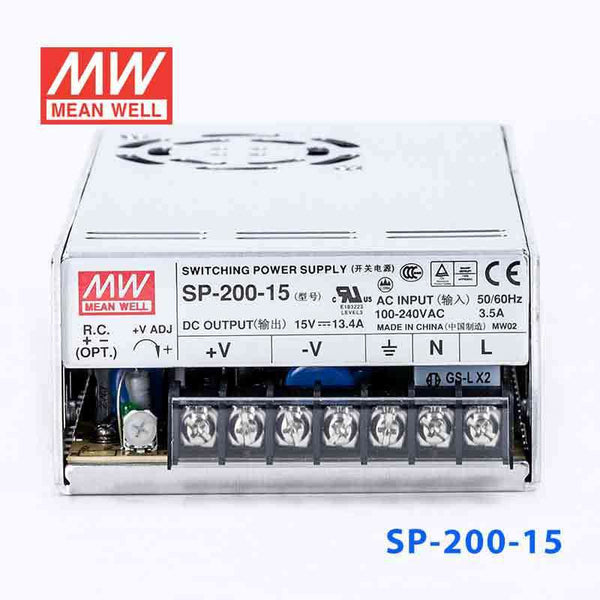

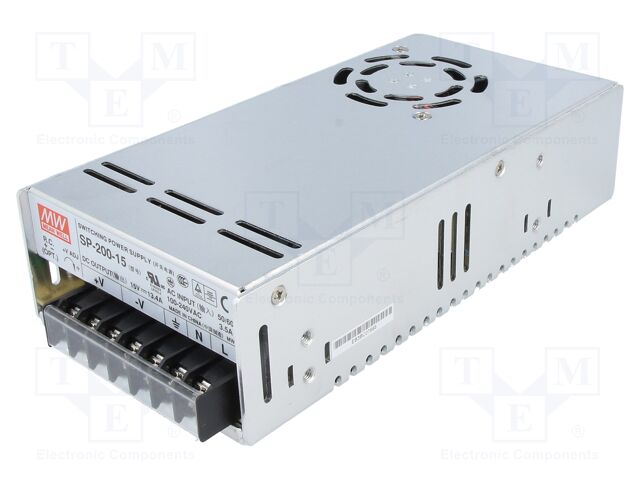

Mean Well SP-200-15 Power Supply, Single Output, 15 Volt, 13.4 Amp, 201 Watt, Silver, 7" L x 3.9" W x 2" H
Brand: MEAN WELL
FeaturesUniversal AC input / Full rangeBuilt-in active PFC function, PF>0.93Protections: Short circuit / Overload / Over voltage / Over temp.Forced air cooling by built-in DC fanOptional remote ON/OFF controlBuilt-in fan speed control100% full load burn-in test3 year warranty
Details
- Family : SP-200
- Output Voltage : 15V
- Maximum Output Current : 13.4A
- Maximum Output Power : 201W
- Input Voltage : 85V to 264V
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS Basic |
| Product type | LAB_SUPPLY |
| Model | SP-200-15 |
| Part number | SP-200-15 |
| Items per pack | 1 |
| Label | MEAN WELL |
| Manufacturer | MEAN WELL |
Catalog
| Feature | Family : SP-200 |
|---|---|
| Category | Electronics |
| MPN | SP-200-15 |
| EAN | 6404851650713 |
| Product group | PC Accessory |
| Product type | LAB_SUPPLY |
| Manufacturer | MEAN WELL |
Switching Power Supplies 201W 15V 13.4A W/PFC Function
Brand: MEAN WELL
Catalog
| Feature | Manufacturer: Mean Well Product Category: Enclosed Power Supplies RoHS: Product: Switching Supplies Open Frame/Enclosed: Enclosed Output Power Rating: 201 W Input Voltage: 85 VAC to 264 VAC, 120 VDC to 370 VDC Number of Outputs: 1 Output Output Voltage-Channel 1: 15 VDC Output Current-Channel 1: 13.4 A Commercial/Medical: Commercial Mounting Style: Chassis Length: 199 mm Width: 99 mm |
|---|---|
| Category | Industrial & Scientific |
| MPN | SP-200-15 |
| Product group | Pet Products |
| Product type | PET_SUPPLIES |
| Manufacturer | Mean Well |
Meanwell SP-200-15 Power Supply - 200W 15V 13.4A - PFC
Brand: Mean Well
<p><b>Features:</b></p> <p>Universal AC input / Full range</p> <p>Built-in active PFC function</p> <p>Protections: Short circuit / Overload / Over voltage / Over temperature</p> <p>Forced air cooling by built-in DC fan</p> <p>Optional remote ON/OFF control</p> <p>100% full load burn-in test</p> <p>Built-in fan speed control</p> <p>3 years warranty</p> <p><b>General Specification (Please refer to images below for detailed datasheet)</b></p> <p>AC input voltage range:85~264VAC; 120~370VDC</p> <p>AC inrush current (max.):Cold start, 50A at 230VAC</p> <p>DC adjustment range:-5%~+10% rated output voltage</p> <p>Overload protection Range:105%~150%</p> <p>Overload protection Type:Constant current limiting, auto-recovery</p> <p>Over voltage protection Range:110%~135%</p> <p>Over voltage protection Type:Shut off, AC recycle to re-start</p> <p>Withstand voltage:I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC, 1 minute</p> <p>Working temperature:-10~+60°C</p> <p>Safety standards:UL60950-1, TUV EN60950-1,</p> <p>EMC standards:EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3</p> <p>Connection:7P / 9.5mm pitch terminal block with cover</p> <p>Dimension (LxWxH):199x 99x50</p> <p>Case No.:916B</p> <p>Packing:20pcs/17.9kg</p>
Details
- Output Voltage: 15V
- Approx. Wattage: 200W
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Warranty: 3 Years Warranty
Listing
| Binding | Electronics |
|---|---|
| Product group | CE |
| Product type | POWER_SUPPLIES_OR_PROTECTION |
| Model | SP-200-15 |
| Part number | SP-200-15 |
| Label | Mean Well |
| Manufacturer | Mean Well |
PFC Function Enclosed 201W 15V 13.4A SP-200-15 Meanwell AC-DC Single Output SP-200 MEAN WELL Switching Power Supply
Brand: MEAN WELL
Listing
| Binding | Electronics |
|---|---|
| Product group | PC Accessory |
| Product type | SYSTEM_POWER_DEVICE |
| Model | SP-200-15 |
| Part number | SP-200-15 |
| Items per pack | 1 |
| Label | Meanwell Guangzhou / Suzhou / Taiwan |
| Manufacturer | Meanwell Guangzhou / Suzhou / Taiwan |
[PowerNex] Mean Well SP-200-15 15V 13.4A 201W Single Output with PFC Function Power Supply
Brand: MEAN WELL
Catalog
| Feature | Universal AC input / Full range |
|---|---|
| Category | Industrial & Scientific |
| MPN | SP-200-15 |
| EAN | 6135275852055 |
| Product group | BISS |
| Product type | INTERCONNECT |
| Manufacturer | MEAN WELL |
New Mean Well 15Vdc PFC Power Supply SP-200-15
Brand: MEAN WELL
Listing
| Binding | Misc. |
|---|---|
| Product group | Sports |
| Product type | SYSTEM_POWER_DEVICE |
| Model | SP-200-15 |
| Part number | Does Not Apply |
| Label | Mean Well |
| Manufacturer | Mean Well |
