Order FLC2405-10-08 by Dixon Valve Adapter Flareless Bite Fitting - US Mega Store

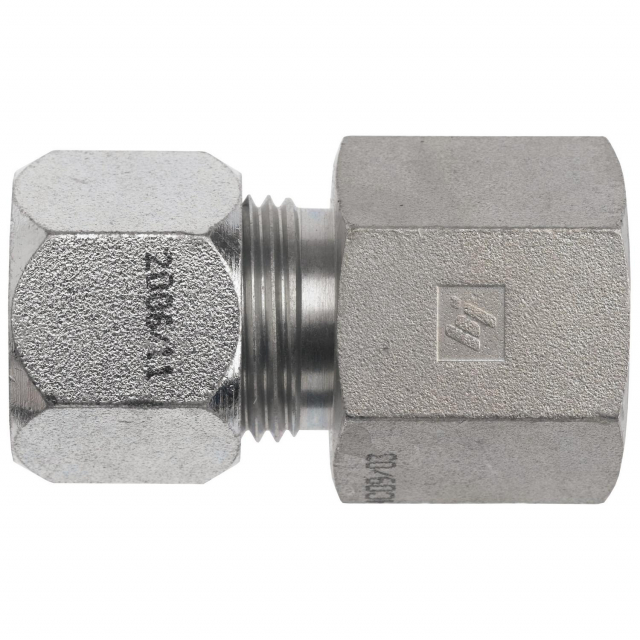

5/8" Flareless Bite Male Tube x 1/2" Fem NPTF Adapter (Steel)

<p><strong>Dixon, FLC2405-10-08, 5/8" Male Tube OD X 1/2" Female NPTF Steel Adapter Flareless Bite Fitting</strong></p><p><strong>Applications</strong></p><ul><li>Chemical, pulp and paper, oil and gas refineries, military, air compressors and machine tools</li><li>Well-suited for a variety of processing and general industry hydraulic applications</li></ul><p><strong>Use</strong></p><ul><li>Ideally suited for use with tubing having medium to extra heavy wall thicknesses.</li><li>Fittings are suitable for sub-zero through elevated temperature applications</li></ul><p><strong>Specifications</strong></p><ul><li>Exceeds Military (MIL F18866) and SAE J514 standards</li></ul><p><strong>Features</strong></p><ul><li>3 piece design including only one ferrule eliminates possible make-up errors that may occur using a twin ferrule tube fitting.</li><li>Minimal risk of improper assembly as the ferrule visibly bites into the tubing which allows installer to visually inspect the bite quality.</li></ul><p><strong>Installation</strong></p><ul><li>Cut, de-burr and clean tubing</li><li>Pre-set ferrule onto tubing</li><li>Inspect ferrule bite in tubing by disassembling the fitting and visually inspecting the de-burred end of the tube for slight indentation.</li><li>Finger tighten nut and then further wrench tighten nut another 1/3" to 1/2" turn.</li></ul><p><strong>Note</strong></p><ul><li>Temperature rating is limited by the material chosen</li><li>Pressure ratings are determined by the size (OD) and wall thickness (inches/mm) of the tubing on which they are to be installed</li></ul>
