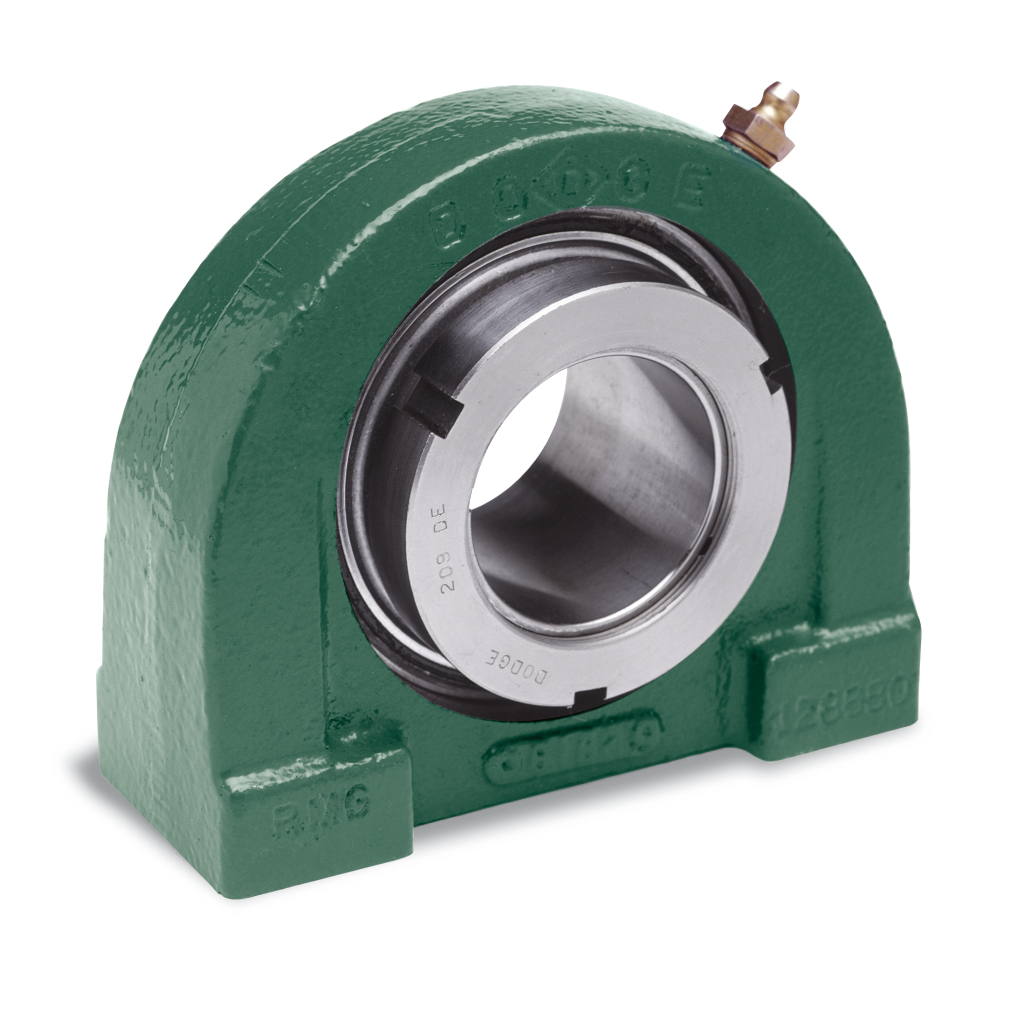

TB-SXV-50M | Dodge

Dodge . TB-SXV-50M

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDodge
Attribute00Intermediate duty
Attribute01, Attribute16Yes
Attribute021.7200 in, 43.688 mm
Attribute03Ball Bearing
Attribute04Standard duty ball
Attribute05Eccentric locking
Attribute06, Attribute14, Attribute28, Attribute33, Attribute34No
Attribute07, Attribute09Cast iron
Attribute08General Purpose
Attribute10Bearing steel
Attribute11DualGuard seals with flingers
Attribute1250mm
Attribute13Tap based
Attribute15Solid
Attribute17210 series
Attribute1850.0000 mm
Attribute19Eccentric collar
Attribute20Non-expansion (fixed)
Attribute21, Attribute224.0000 in, 101.6 mm
Attribute235213 lbf, 23188.579 N
Attribute24Ball, ball
Attribute250.6250 in
Attribute26Tapped-base pillow block
Attribute27Grease
Attribute293000 rpm
Attribute30Adapter required
Attribute312.2500 in, 57.15 mm
Attribute32Steel
AttributeKey00Duty
AttributeKey01Relubrication
AttributeKey02, length_AttribBore length
AttributeKey03Insert type
AttributeKey04Rolling element
AttributeKey05Locking
AttributeKey06Expansion
AttributeKey07Housing material
AttributeKey08Application
AttributeKey09Housing option
AttributeKey10Insert option
AttributeKey11Seal option
AttributeKey12Bore
AttributeKey13Type
AttributeKey14High temp
AttributeKey15Housing construction
AttributeKey16Greasable
AttributeKey17Ball bearing series
AttributeKey18, width_AttribShaft diameter
AttributeKey19Shaft attachment
AttributeKey20Expansion capability
AttributeKey21Bolt to bolt min
AttributeKey22Bolt to bolt max
AttributeKey23Static load capacity
AttributeKey24Bearing type
AttributeKey25Bolt Diameter
AttributeKey26Housing type
AttributeKey27Lubrication type
AttributeKey28Suitable for washdown
AttributeKey29Max Speed
AttributeKey30Sensor ready
AttributeKey31, height_AttribBase to center height
AttributeKey32Insert material
AttributeKey33Standoff housing
AttributeKey34Suitable for high temperature
CategoryL1Bearings
CategoryL2Mounted Bearings
CategoryL3Mounted Ball Bearings
CategoryL4Tap Based Bearings
DimensionUnitmm
Extra Product NameTB-SXV-50M | Dodge
diameter, width50.0
height2.25
length1.72
moq, multiple, tierMinQty11
MPNTB-SXV-50M
qtyInStock0
SKU128770
snippet50mm bore Tap Based Ball Bearing with Eccentric Locking locking used in General Purpose applications
tierPrice1115.52

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply128770111 @ $115.52
apexindustrialautomation.comTB-SXV-50M111 @ $117.08
Lily BearingTB-SXV-50M1-211 @ $114.26
