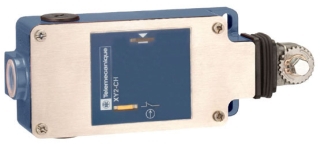

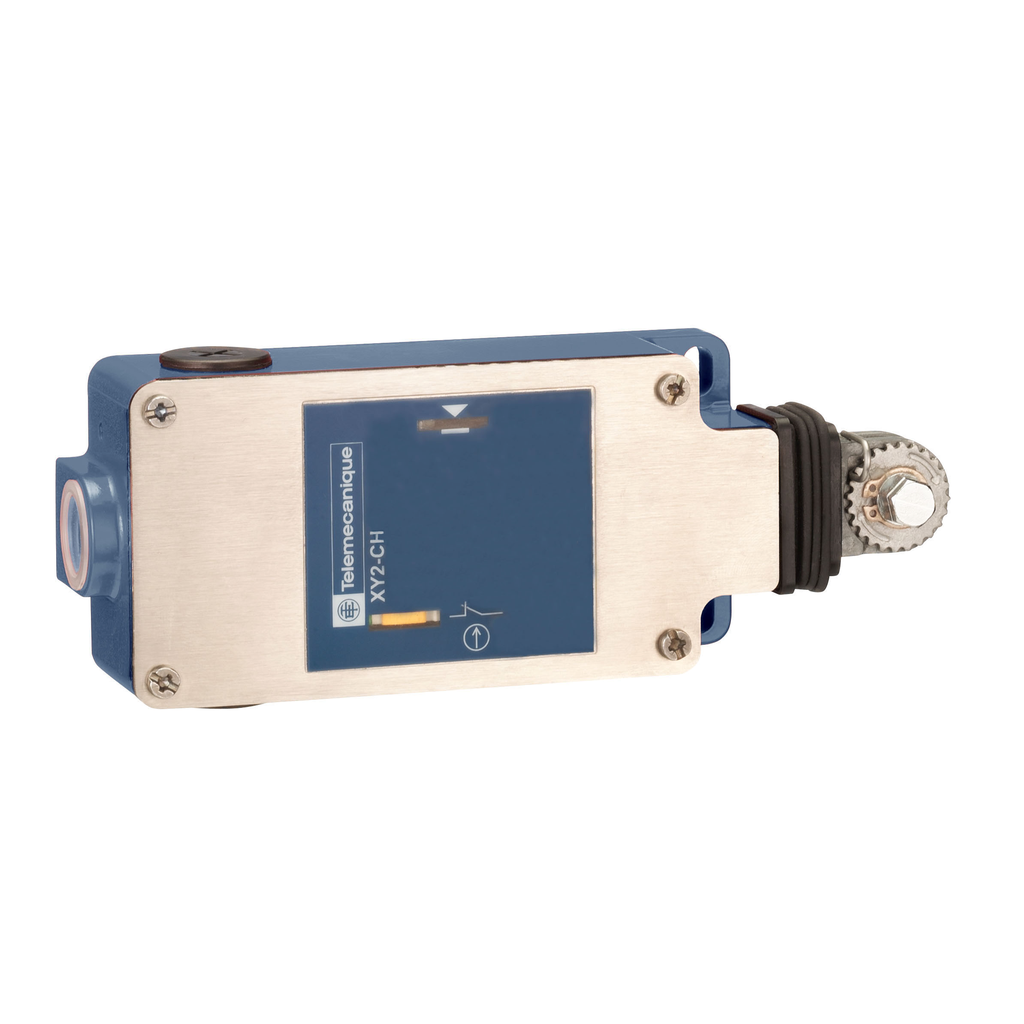

Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, CABLE 240 V AC, 10 A, red RAL 3000 | Mayer Electric

SQUARE D . XY2CH34010TK

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute00blue
Attribute01Telemecanique Emergency stop rope pull switches XY2C
Attribute02class I EN/IEC 61140 || class I NF C 20-030
Attribute03latching emergency stop rope pull switch
Attribute04, Attribute19XY2CE
Attribute0518 months
Attribute06screw clamp terminal, 1 x 0.5...2 x 1.5 mm? || screw clamp terminal, 1 x 0.34...2 x 0.75 mm?
Attribute07by booted push-button
Attribute081 NC + 1 NO
Attribute09, moq, multiple, tierMinQty11
Attribute10(21-22)NC || (13-14)NO
Attribute11500 V 3)EN/IEC 60947-1 || 300 VUL 508
Attribute1210 A cartridge fuse gG EN/IEC 60269
Attribute133 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Attribute14snap action
Attribute155-5 m
Attribute16800000 cycles
Attribute17with EN/IEC 60947-5-1
Attribute183 tapped entry Pg 13.5 cable gland
Attribute20zamak
Attribute2110 A
Attribute22RH or LH side
Attribute23B10d = 4000000 value given for a life time of 20 years limited by mechanical or contact wear IEC 60947-5-5
Attribute24CE
Attribute25stainless steel
Attribute26without pilot light
Attribute271.45 kg
Attribute280.8-1.2 N.m
Attribute296 kV EN/IEC 60947-1
Attribute3025 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Attribute31can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Attribute32, Attribute33Yes
Attribute34Pro-active compliance (Product out of EU RoHS legal scope)
Attribute35Reference contains Substances of Very High Concern above the threshold
Attribute36Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute37-25-70 ?C
Attribute38-40-70 ?C
Attribute39EN/IEC 60947-5-5 || work equipment directive 2009/104/EC || machinery directive 2006/42/EC || EN/ISO 13850 || CSA C22.2 No 14 || EN/IEC 60947-5-1
Attribute40UL category NISD emergency stop devices || CCC
Attribute4150 gn 11 ms EN/IEC 60068-2-27
Attribute4210 gn 10-300 Hz)EN/IEC 60068-2-6
Attribute43TC
Attribute44IP66 IEC 60529
AttributeKey00Housing Colour
AttributeKey01Range Of Product
AttributeKey02Overvoltage Category
AttributeKey03Product Or Component Type
AttributeKey04Device Short Name
AttributeKey05Warranty
AttributeKey06Connections - Terminals
AttributeKey07Reset
AttributeKey08Contacts Type And Composition
AttributeKey09Number Of Cables
AttributeKey10Terminals Description Iso N?1
AttributeKey11[Ui] Rated Insulation Voltage
AttributeKey12Short-Circuit Protection
AttributeKey13[Ie] Rated Operational Current
AttributeKey14Contact Operation
AttributeKey15Distance Between Cable Supports
AttributeKey16Mechanical Durability
AttributeKey17Positive Opening
AttributeKey18Cable Entry Number
AttributeKey19Compatibility Code
AttributeKey20Body Material
AttributeKey21[Ithe] Conventional Enclosed Thermal Current
AttributeKey22Trigger Cable Anchor Point
AttributeKey23Safety Reliability Data
AttributeKey24Marking
AttributeKey25Cover Material
AttributeKey26Local Signalling
AttributeKey27, Weight_AttribNet Weight
AttributeKey28Tightening Torque
AttributeKey29[Uimp] Rated Impulse Withstand Voltage
AttributeKey30Maximum Resistance Across Terminals
AttributeKey31Safety Level
AttributeKey32Rohs Exemption Information
AttributeKey33Mercury Free
AttributeKey34Eu Rohs Directive
AttributeKey35Reach Regulation
AttributeKey36California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey37Ambient Air Temperature For Operation
AttributeKey38Ambient Air Temperature For Storage
AttributeKey39Standards
AttributeKey40Product Certifications
AttributeKey41Shock Resistance
AttributeKey42Vibration Resistance
AttributeKey43Protective Treatment
AttributeKey44Ip Degree Of Protection
Extra Product NameLatching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, CABLE 240 V AC, 10 A, red RAL 3000 | Mayer Electric
UPC3389119085731
Weight1.45
WeightUnitkg
jsonUrlData/Product/SQUARE-D-Latching-emergency-stop-rope-pull-switch-Telemecanique-rope-pull-switches-XY2C-CABLE-240-V-AC-10-A-red-RAL-3000-785901275190
jsonUrlData29ae038a4-373e-4992-a03c-aeea0058d2bd
MPNXY2CH34010TK
qtyInStock0
SKUSQDXY2CH34010TK
tierPrice1782.02

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXY2CH34010TK111 @ $782.02
Digi-Key17178888111 @ $678.77
gordonelectricsupply.comXY2CH34010TK1This Item Usually Ships in 3-5 Days11 @ $650.00
RadwellXY2CH34010TK111 @ $680.00
MRO Supply108138011
