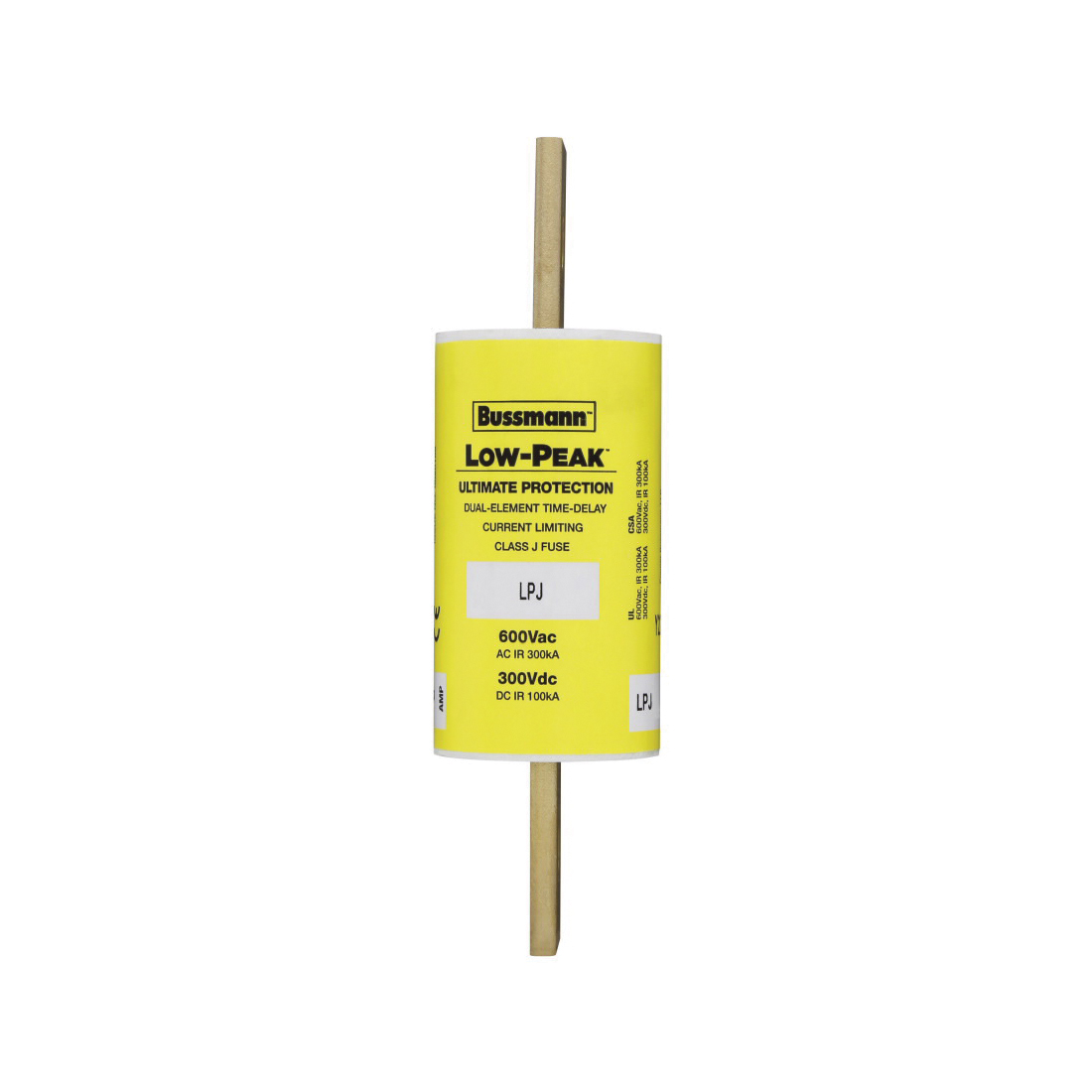

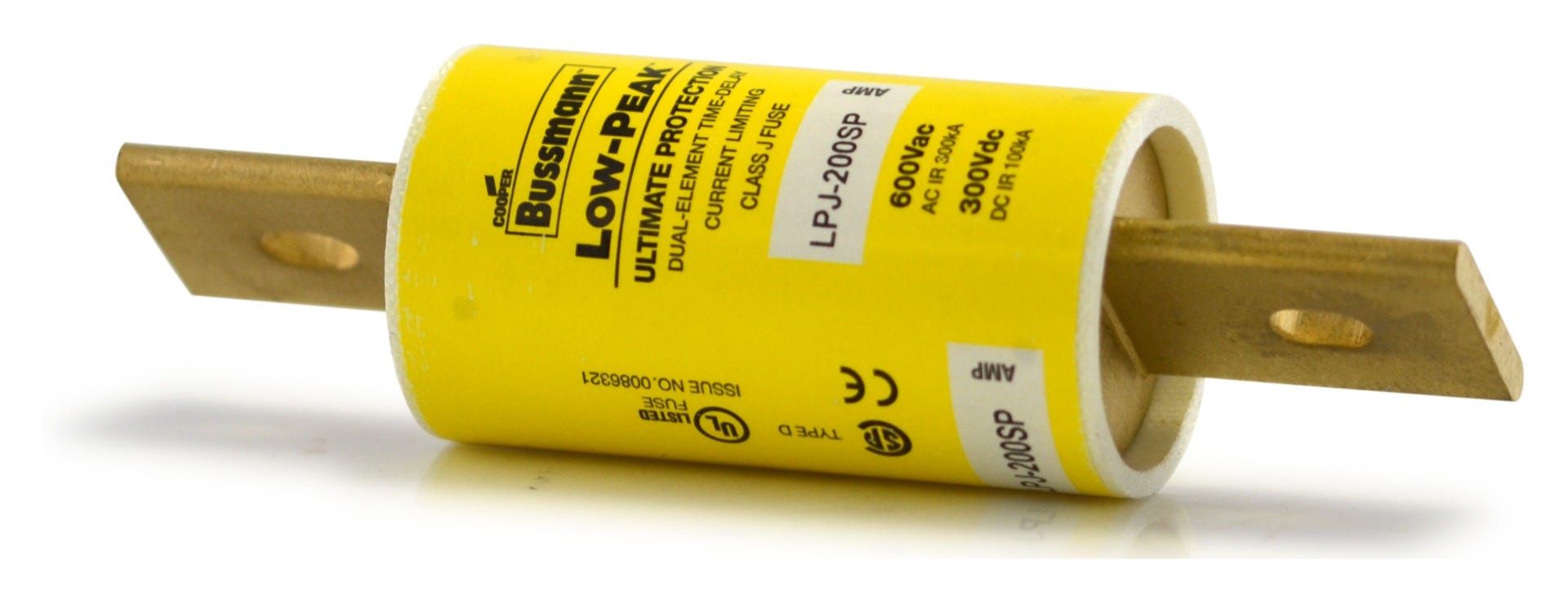

Eaton Bussmann Fuse, 200A, 600V, Time Delay - LPJ-200SP

Bussmann's UL Class J fuse products extend both our Low-Peak family of products with our LPJ_SP and LPJ_SPI dual-element, time-delay fuses as well as our Limitron line offering fast-acting JKS fuses. The LPJ fuses provide industry leading 300, 000 amp interrupting rating at 600Vac RMS Sym and 100kA Vdc while delivering a minimum of 10 seconds of 500% rated current ride-through performance which is ideal for sizing of high inrush loads. The LPJ products are available with optional permanent replace fuse indication. These UL Class J products in sizes 1 to 600 amps provide exceptional performance at 600 Vac and 300 Vdc (see spec sheets for specific details) in a compact size rejecting footprint This listing is for Each. Brand Eaton Bussmann series Sub Brand Bussmann Series Country of Origin Mexico Made in USA No Amperage Rating 200 A Application Ind Facilities & Factories - Facility: Safety and Security Systems Connection Bolted blade end x bolted blade end Interrupt Rating 300 kAIC at 600 Vac|100 kAIC Vdc Response Time 10 sec at 500% Standard RoHS Compliant, CE Marked Item Type Fuse Size 1.63 In Diameter X 5.75 In Length Voltage Rating 600 Vac, 300 Vdc

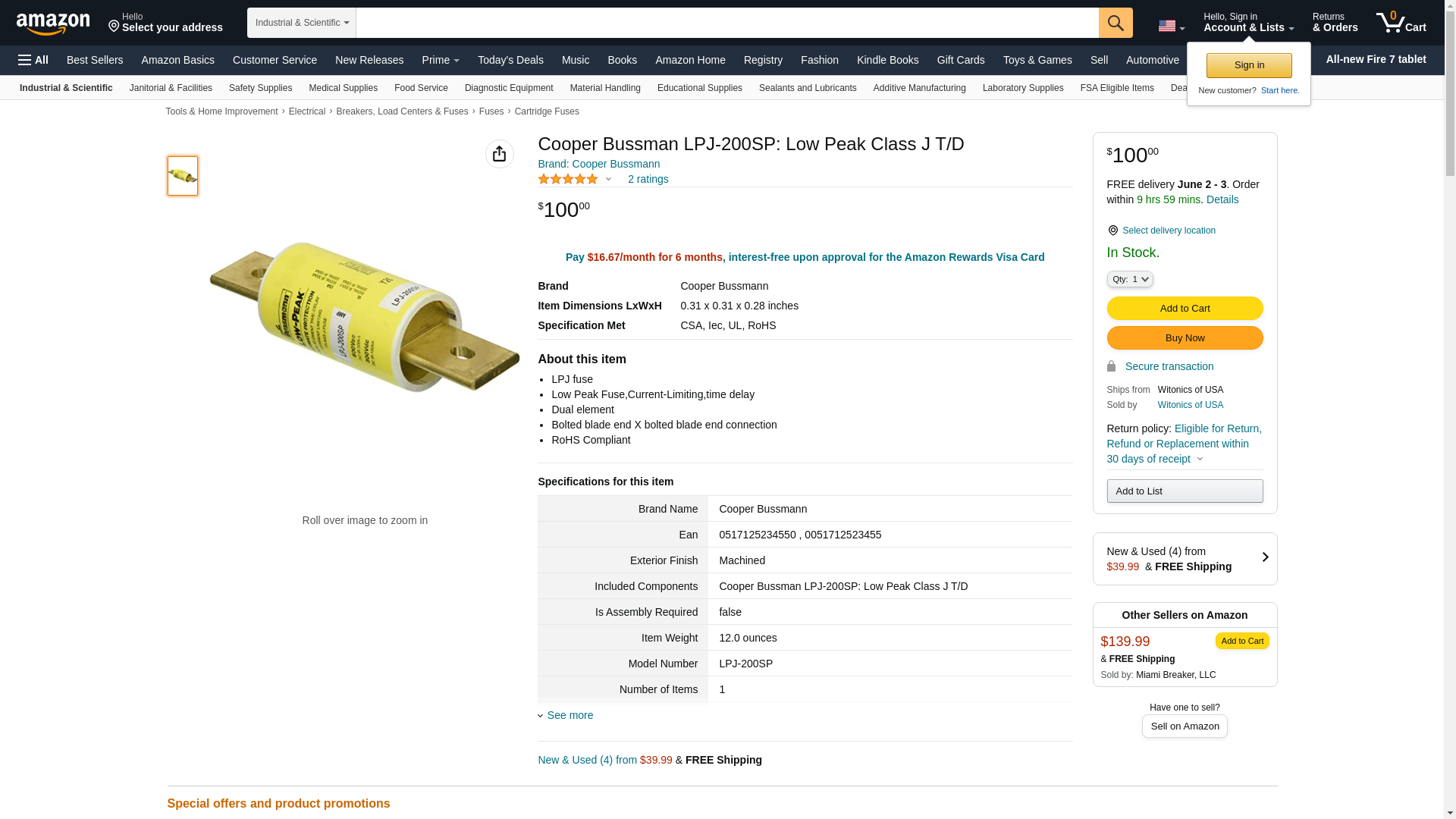

Bussman LPJ-200SP Low Peak Fuse Class J Time Delay 600V 200Amps

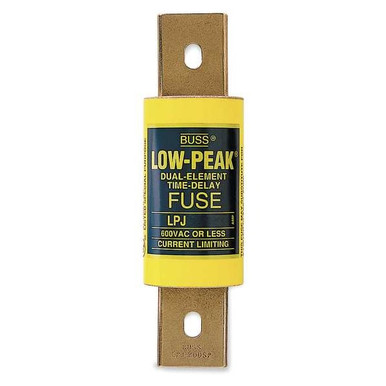

<p>This 200 A Low-Peak, Time Delay, Dual Element, Bolted Tag HRC Fuse provides the ultimate in protection and are the industries only UL Listed and CSA Certified fuses with a 300 kA interrupting rating, providing 50% more protection than any other listed fuse.&nbsp;</p><p>True dual element fuse with a minimum 10 second time delay at a 500% overload condition, this long delay time minimises needless fuse openings due to temporary overloads and transient surges. This dependable time delay fuse provides a faster response to damaging short circuit currents than comparable mechanical overcurrent protection devices. Dual element fuses have a lower resistance than ordinary fuses and consequently run cooler.</p><p>Ideally suited for the protection of sensitive devices and critical components, motors, and transformers. The high interrupting rating allows for simple, worry-free installation in virtually any application.</p>

This Class J fuse features a current-limiting fiberglass body with low watts and low resistance for cooler running temperature and reduced power consumption. This compact fuse also requires only half the mounting space of most 600V Class RK1 and Class RK5 fuses. The dual-element fuse features a 10-second minimum time-delay at 500% overload to minimize needless fuse openings due to temporary overloads and transient surges.<br /><br /> Item: Fuse<br /> Fuse Amps: 200A<br /> Indicating / Nonindicating: Nonindicating<br /> Series: LPJ<br /> Fuse Voltage Rating: 600VAC/300VDC<br /> Fuse Speed: Time Delay<br /> Element: Dual<br /> Class: J<br /> Body Material: Melamine<br /> Rejection / Nonrejection: Nonrejection<br /> Body Style: Blade<br /> Fuse Interrupt Rating: 300kA at 600VAC, 100kA at 300VDC<br /> Length: 5-3/4"<br /> Width: Not Applicable<br /> Fuse Holder Code: AC<br /> Depth: Not Applicable<br /> Diameter: 1-5/8"<br /> Functionally Equal To: Littelfuse JTD<br /> Standards: CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02<br /> Green Environmental Attribute: RoHS Compliant
