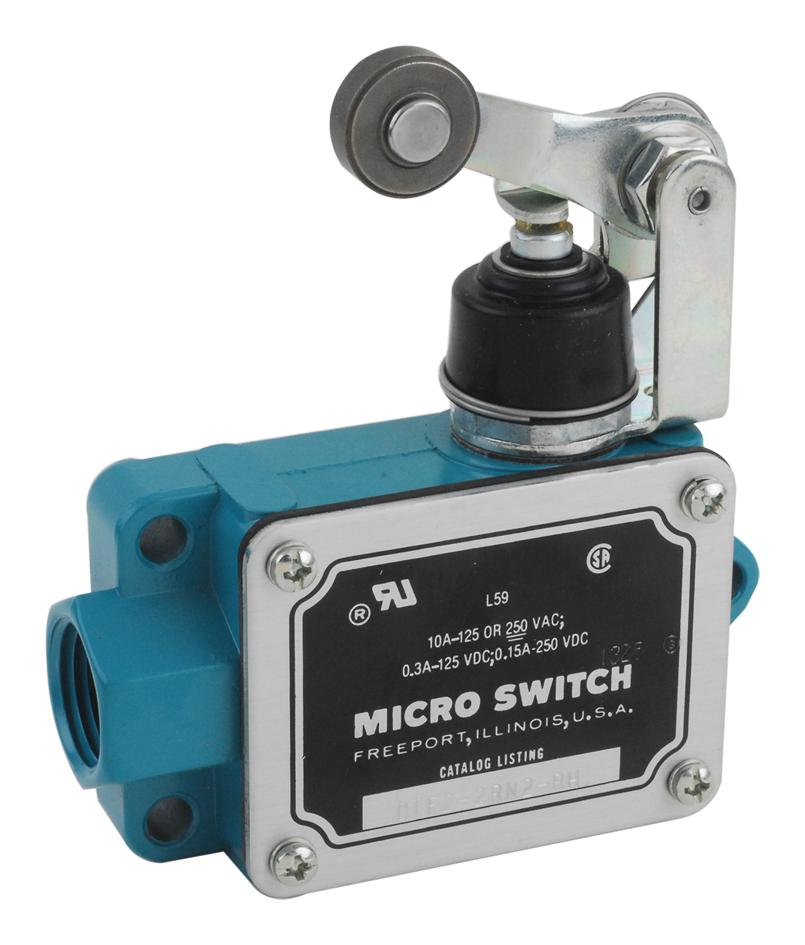

Honeywell Limit Switch Top Roller Arm Dpdt-2No/2Nc - DTF2-2RN2-RH

Product Overview The DTF2-2RN2-RH is a double-pole double-throw (DPDT) compact Limit Switch with an adjustable roller top roller arm actuator and 2NC 2NO snap action contacts. This BAF/DTF series medium-duty enclosed switch comes with an aluminum die-cast housing and supports 0.5-inch - 14NPT conduit termination. This elastomer boot on sealed actuator version protects the actuating mechanism and the internal basic switch from contaminants. There is a seal gasket between the cover plate and the enclosures on all versions. The cover plate is removed for ease of wiring and switch replacement without demounting the switch. The actuator position is designated right or left, when looking at the nameplate. Cover seal, captive cover screws -32 to 71°C Operating temperature range Applications Industrial, Automotive This listing is for Each. MEDIUM DUTY, ENCLOSED TYPE 2NO-2NC, DPDT CONTACT CONFIGURATION 1/2 INCH-14 TPI NPT CONDUIT CONNECTION TYPE SNAP ACTION OPERATION TYPE 250 VAC 10 AMPERE, 250 VDC 0.15 AMPERE CONTACT RATING UL, CSA APPROVAL NEMA 1/3/4/13 ENCLOSURE DIE-CAST ALUMINUM BODY MATERIAL -25 TO 160 DEG F OPERATING TEMPERATURE 2.5 LB OPERATING FORCE 0.219 INCH OPERATING TRAVEL 0.12 INCH DIFFERENTIAL TRAVEL SEALED BOOT RIGHT HAND ROLLER LEVER ACTUATOR/HEAD TYPE 0.312 INCH PRETRAVEL MICRO SWITCH BRAND RELEASE FORCE 2 OZ APPLICATION PACKAGING EQUIPMENT, SPECIAL MACHINERY, AGRICULTURAL MACHINERY, CONVEYOR, OVERHEAD CRANES AND HOISTS DTF MODEL

Enclosed Switches Series BAF/DTF: Top Roller Arm Actuator, Adjustable with Steel Roller; 2NC 2NO DPDT Snap Action; Actuator Position - Right
