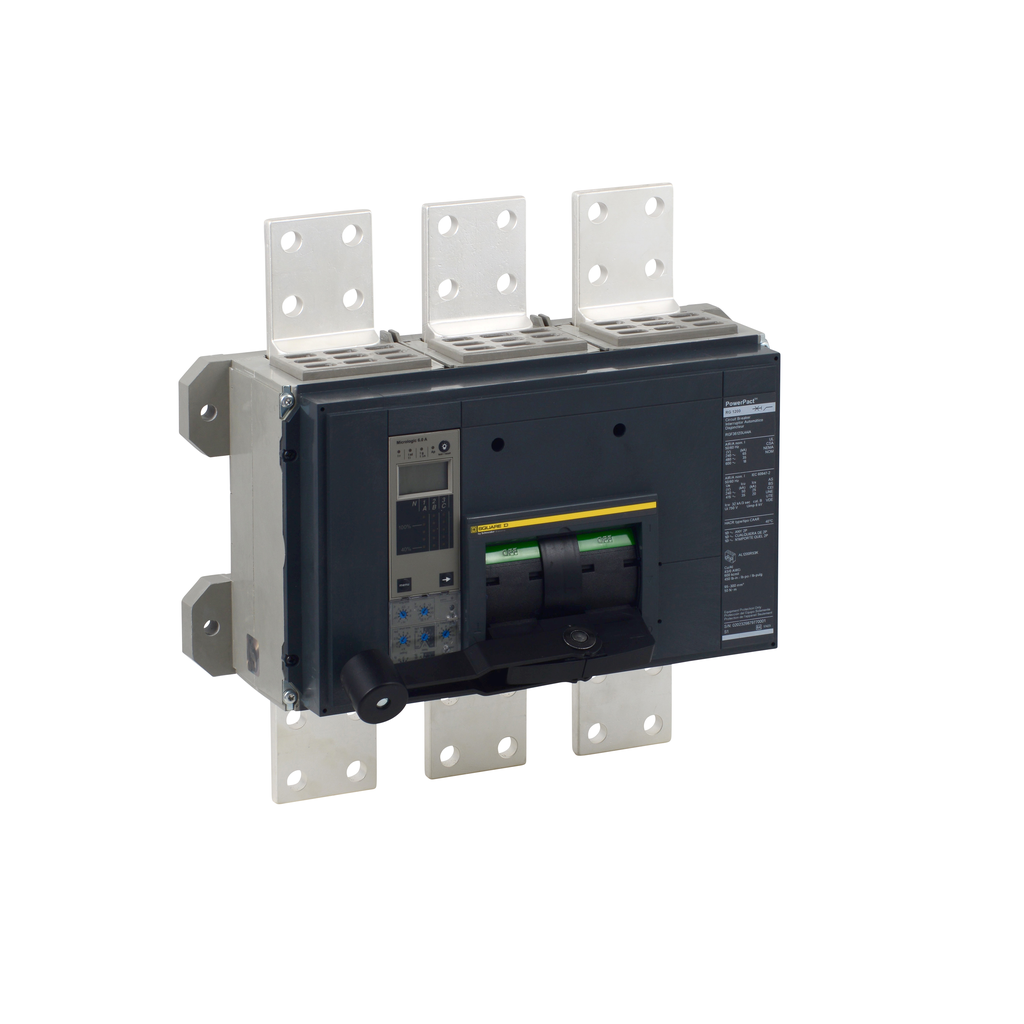

Circuit breaker, PowerPacT R, 1000A, 3 pole, 600VAC, 50kA, busbar, Micrologic 6.0A, 80% | Mayer Electric

SQUARE D . SQDRLF36100U44A

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute00circuit breaker
Attribute01PowerPact R
Attribute02distribution
Attribute03PowerPact
Attribute0418 months
Attribute05unit mount busbar)
Attribute0650/60 Hz
Attribute0735 mm
Attribute08AL2500RK
Attribute091000-1000 A
Attribute10category A
Attribute1165 kA 240 V AC 50/60 Hz IEC 60947-2 || 45 kA 380/415 V AC 50/60 Hz IEC 60947-2
Attribute12electronic, ammeter, Micrologic 6.0 A, LSIG
Attribute13Micrologic 6.0 A
Attribute1416.24 in
Attribute1580 %
Attribute16AIR 125 kA 240 V AC 50/60 Hz UL 489 || AIR 100 kA 480 V AC 50/60 Hz UL 489 || AIR 50 kA 600 V AC 50/60 Hz UL 489 || Icu 125 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 85 kA 380/415 V AC 50/60 Hz IEC 60947-2
Attribute17750 V IEC 60947-2
Attribute18yes IEC 60947-2
Attribute19600 V AC 50/60 Hz UL 489
Attribute2062-62 N.m 50-400 mm? (AWG 1/0...750 kcmil) || 62-62 N.m 50-150 mm? (2 x AWG 1/0...2 x 300 kcmil)
Attribute21busbar
Attribute22L
Attribute233P
Attribute24alarm 1 LED yellow)long-time pick up) || 1 LED red)long-time pick up) || trip causes 1 LED red) || 1 LED red)digital ammeter) || ground indicator 1 LED red) || phase-loading LED green)load balancing)
Attribute25, moq, multiple, tierMinQty11
Attribute262 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Attribute27AWG 3/0...750 kcmil aluminium/copper
Attribute2816.53 in
Attribute29busbar connection line || busbar connection load
Attribute3014.49 in
Attribute3152 lb(US)
Attribute328 kV IEC 60947-2
Attribute33operating handle
Attribute34Product out of China RoHS scope. Substance declaration for your information.
Attribute35ENVEOLI1407013EN
Attribute36, Attribute37, Attribute40Yes
Attribute38ENVPEP1407013EN
Attribute39Green Premium product
Attribute41Compliant
Attribute42Reference contains Substances of Very High Concern above the threshold
Attribute43DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute44Halogen free plastic parts product
Attribute45-25-70 ?C
Attribute463 IEC 60947-1
Attribute47-50-85 ?C
Attribute48UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Attribute49CE
Attribute50UL || CSA || NOM
Attribute51IP40
AttributeKey00Product Or Component Type
AttributeKey01Product Name
AttributeKey02Device Application
AttributeKey03Range
AttributeKey04Warranty
AttributeKey05Mounting Mode
AttributeKey06Network Frequency
AttributeKey07Wire Stripping Length
AttributeKey08Terminal Identifier
AttributeKey09Line Rated Current
AttributeKey10Utilisation Category
AttributeKey11[Ics] Rated Service Breaking Capacity
AttributeKey12Trip Unit Technology
AttributeKey13Trip Unit Name
AttributeKey14, height_AttribHeight
AttributeKey15Continuous Current Rating
AttributeKey16Breaking Capacity
AttributeKey17[Ui] Rated Insulation Voltage
AttributeKey18Suitability For Isolation
AttributeKey19[Ue] Rated Operational Voltage
AttributeKey20Tightening Torque
AttributeKey21Mounting Support
AttributeKey22Breaking Capacity Code
AttributeKey23Poles Description
AttributeKey24Local Signalling
AttributeKey25Quantity Per Set
AttributeKey26Number Of Slots
AttributeKey27Awg Gauge
AttributeKey28, width_AttribWidth
AttributeKey29Electrical Connection
AttributeKey30, length_AttribDepth
AttributeKey31, Weight_AttribNet Weight
AttributeKey32[Uimp] Rated Impulse Withstand Voltage
AttributeKey33Control Type
AttributeKey34China Rohs Regulation
AttributeKey35Circularity Profile
AttributeKey36Rohs Exemption Information
AttributeKey37Mercury Free
AttributeKey38Environmental Disclosure
AttributeKey39Sustainable Offer Status
AttributeKey40Pvc Free
AttributeKey41Eu Rohs Directive
AttributeKey42Reach Regulation
AttributeKey43California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey44Halogen Content Performance
AttributeKey45Ambient Air Temperature For Operation
AttributeKey46Pollution Degree
AttributeKey47Ambient Air Temperature For Storage
AttributeKey48Standards
AttributeKey49Quality Labels
AttributeKey50Product Certifications
AttributeKey51Ip Degree Of Protection
DimensionUnitinch
Extra Product NameCircuit breaker, PowerPacT R, 1000A, 3 pole, 600VAC, 50kA, busbar, Micrologic 6.0A, 80% | Mayer Electric
UPC, MPN, SKUSQDRLF36100U44A
Weight52
WeightUnitlbs
depth, length14.49
height16.24
jsonUrlData/Product/SQUARE-D-Circuit-breaker-PowerPact-R-1000A-3-pole-600VAC-50kA-busbar-Micrologic-6-0A-80-SQDRLF36100U44A
jsonUrlData2db773bc9-23f0-41b9-a521-aeea00578e56
qtyInStock0
tierPrice10.0
width16.53

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDRLF36100U44A111 @ $0.00
