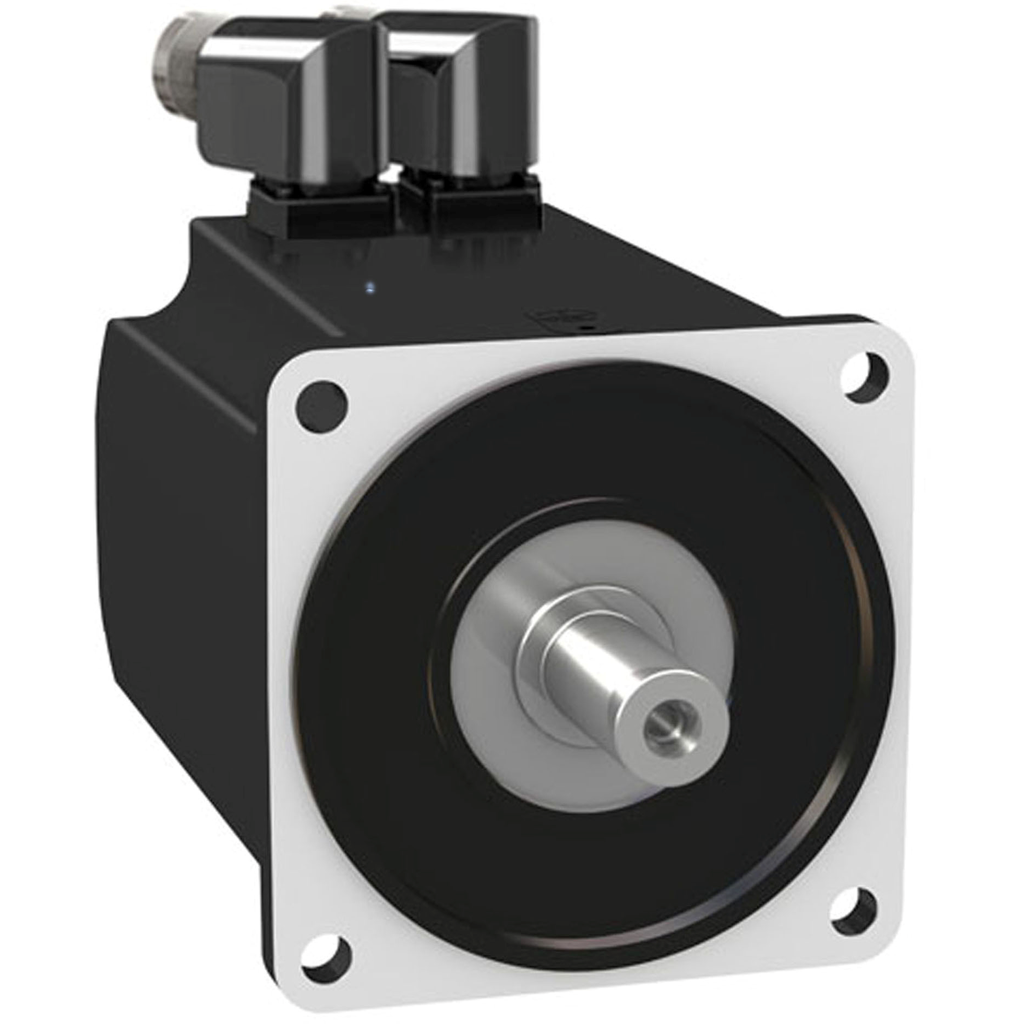

servo motor BMH - 24 Nm - 4000 rpm - untapped shaft - without brake - IP65/IP67 | Mayer Electric

SQUARE D . SQDBMH1403P27A2A

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute004000 rpm
Attribute01international standard flange
Attribute02without
Attribute0332768 points/turn x 4096 turns
Attribute04servo motor
Attribute054700 W LXM32.D72N4 24 A, 400 V, three phase || 4700 W LXM32.D72N4 24 A, 480 V, three phase
Attribute0671.8 N.m LXM32.D72N4 24 A, 400 V, three phase || 71.8 N.m LXM32.D72N4 24 A, 480 V, three phase
Attribute07LXM32.D72N4 400...480 V three phase
Attribute08IP65 standard || IP67 with IP67 kit
Attribute09smooth shaft
Attribute103000 rpm LXM32.D72N4 24 A, 400 V, three phase || 3000 rpm LXM32.D72N4 24 A, 480 V, three phase
Attribute11rotatable right-angled connectors
Attribute1213.92 N.m LXM32.D72N4 24 A, 400 V, three phase || 13.92 N.m LXM32.D72N4 24 A, 480 V, three phase
Attribute13BMH
Attribute1424 N.m LXM32.D72N4 24 A, 400 V, three phase || 24 N.m LXM32.D72N4 24 A, 480 V, three phase
Attribute1518 months
Attribute16165 mm
Attribute1762.3 A
Attribute184.8 W
Attribute1913.6 ms 20 ?C
Attribute202420 N 1000 rpm || 1920 N 2000 rpm || 1680 N 3000 rpm
Attribute213
Attribute2247.5 kg.cm?
Attribute2310
Attribute2485.9 V/krpm 120 ?C
Attribute250.2 x Fr
Attribute263.5 mm
Attribute27without second shaft end
Attribute2850 mm
Attribute29three phase
Attribute30232 mm
Attribute3162.3 A LXM32.D72N4
Attribute3216 kg
Attribute33130 mm
Attribute343 mH 20 ?C
Attribute35140 mm
Attribute36480 V
Attribute374
Attribute3824 mm
Attribute3911 mm
Attribute40natural convection
Attribute41multiturn SinCos Hiperface
Attribute420.22 Ohm 20 ?C
Attribute43Lexium 32
Attribute4418 A
Attribute451.34 N.m/A 120 ?C
Attribute46, Attribute47, Attribute50Yes
Attribute48ENVPEP111002EN
Attribute49Green Premium product
Attribute51Reference contains Substances of Very High Concern above the threshold
Attribute52Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute53The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Attribute54X
Attribute55Pro-active compliance (Product out of EU RoHS legal scope)
AttributeKey00Maximum Mechanical Speed
AttributeKey01Mounting Support
AttributeKey02Holding Brake
AttributeKey03Speed Feedback Resolution
AttributeKey04Product Or Component Type
AttributeKey05Nominal Output Power
AttributeKey06Peak Stall Torque
AttributeKey07Product Compatibility
AttributeKey08Ip Degree Of Protection
AttributeKey09Shaft End
AttributeKey10Nominal Speed
AttributeKey11Electrical Connection
AttributeKey12Nominal Torque
AttributeKey13Device Short Name
AttributeKey14Continuous Stall Torque
AttributeKey15Warranty
AttributeKey16, height_AttribCircle Diameter Of The Mounting Holes
AttributeKey17Maximum Permanent Current
AttributeKey18Continuous Power
AttributeKey19Stator Electrical Time Constant
AttributeKey20Maximum Radial Force Fr
AttributeKey21Number Of Motor Stacks
AttributeKey22Rotor Inertia
AttributeKey23Number Of Motor Poles
AttributeKey24Back Emf Constant
AttributeKey25Maximum Axial Force Fa
AttributeKey26, width_AttribCentring Collar Depth
AttributeKey27Second Shaft
AttributeKey28Shaft Length
AttributeKey29Phase
AttributeKey30, length_AttribLength
AttributeKey31Maximum Current Irms
AttributeKey32, Weight_AttribNet Weight
AttributeKey33Centring Collar Diameter
AttributeKey34Stator Inductance
AttributeKey35Motor Flange Size
AttributeKey36[Us] Rated Supply Voltage
AttributeKey37Number Of Mounting Holes
AttributeKey38Shaft Diameter
AttributeKey39Mounting Holes Diameter
AttributeKey40Type Of Cooling
AttributeKey41Feedback Type
AttributeKey42Stator Resistance
AttributeKey43Range Compatibility
AttributeKey44Continuous Stall Current
AttributeKey45Torque Constant
AttributeKey46Rohs Exemption Information
AttributeKey47Mercury Free
AttributeKey48Environmental Disclosure
AttributeKey49Sustainable Offer Status
AttributeKey50Pvc Free
AttributeKey51Reach Regulation
AttributeKey52California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey53Weee
AttributeKey54China Rohs Regulation
AttributeKey55Eu Rohs Directive
DimensionUnitmm
Extra Product Nameservo motor BMH - 24 Nm - 4000 rpm - untapped shaft - without brake - IP65/IP67 | Mayer Electric
UPC3606485208404
Weight16
WeightUnitkg
diameter, height165.0
jsonUrlData/Product/SQUARE-D-servo-motor-BMH-24-Nm-4000-rpm-untapped-shaft-without-brake-IP65-IP67-3606485208404
jsonUrlData25c570de7-00b4-45a2-8348-aeea00551d88
length232.0
moq, multiple, tierMinQty11
MPN, SKUSQDBMH1403P27A2A
qtyInStock0
tierPrice12820.52
width3.5

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDBMH1403P27A2A111 @ $2820.52
