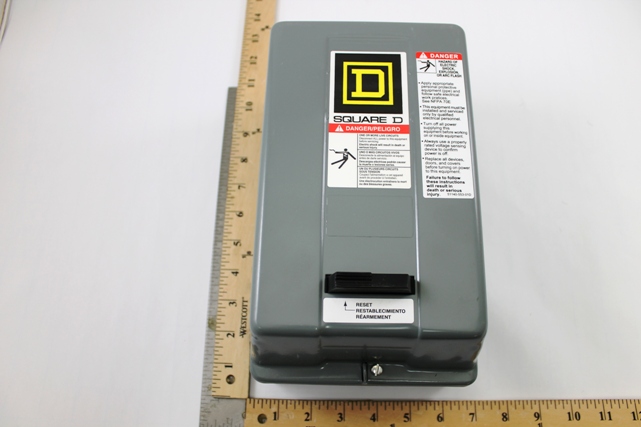

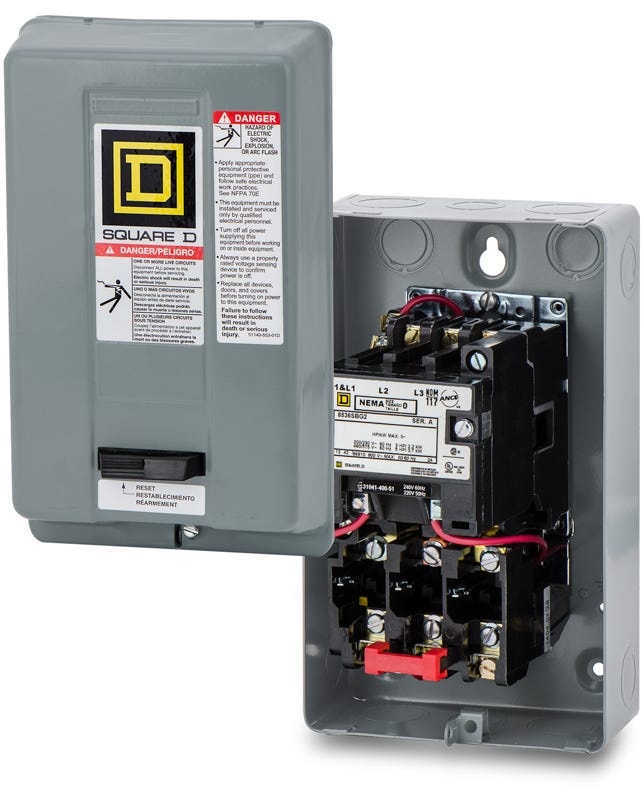

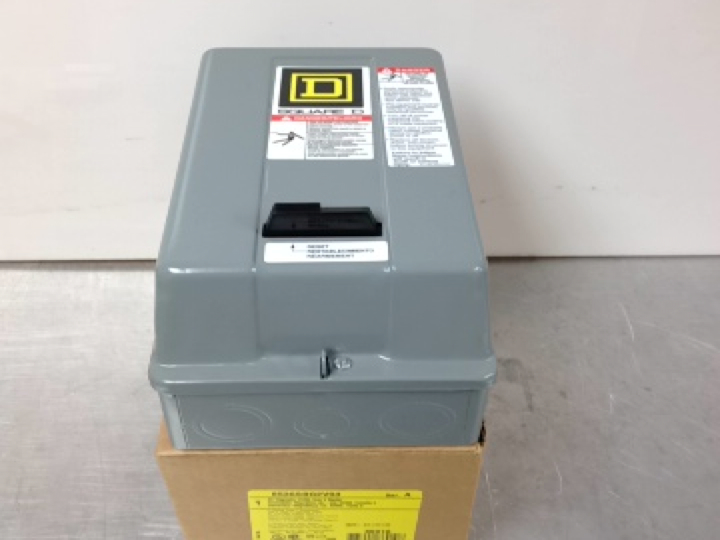

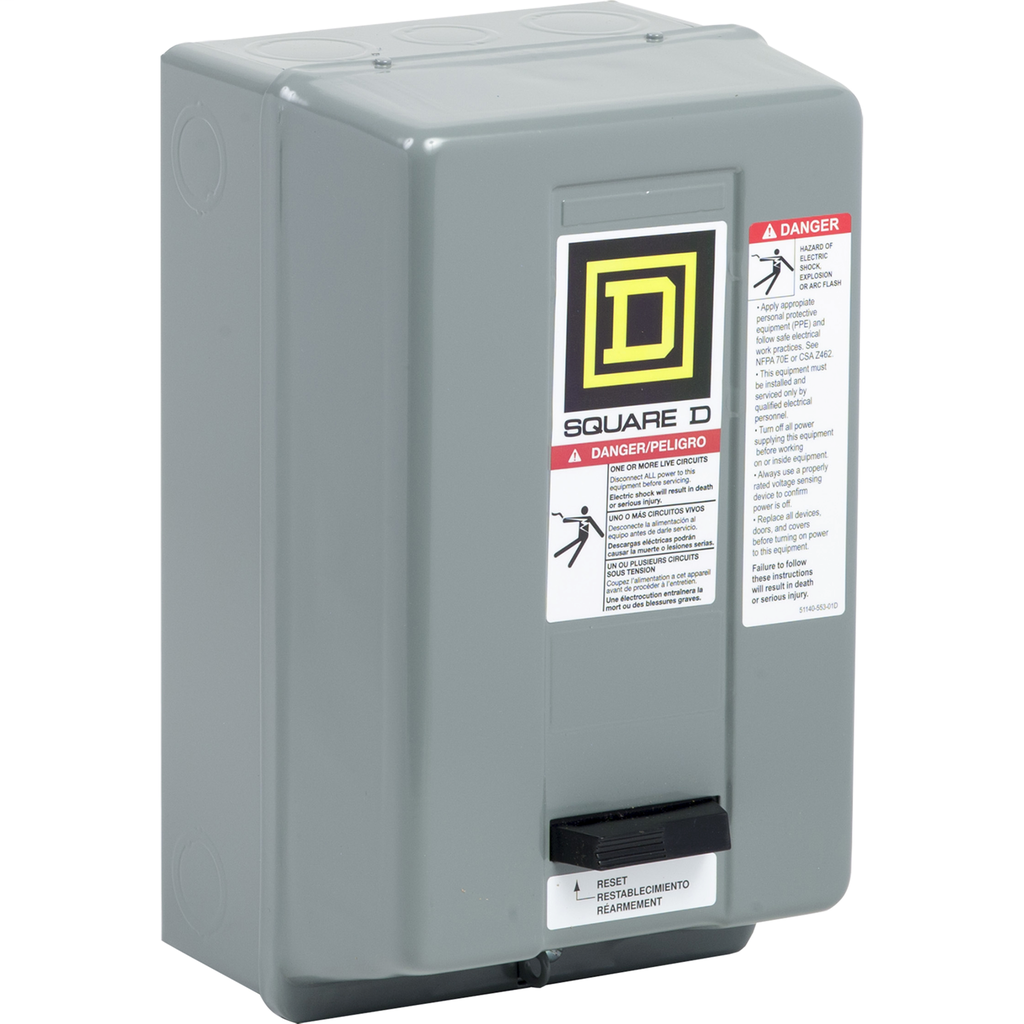

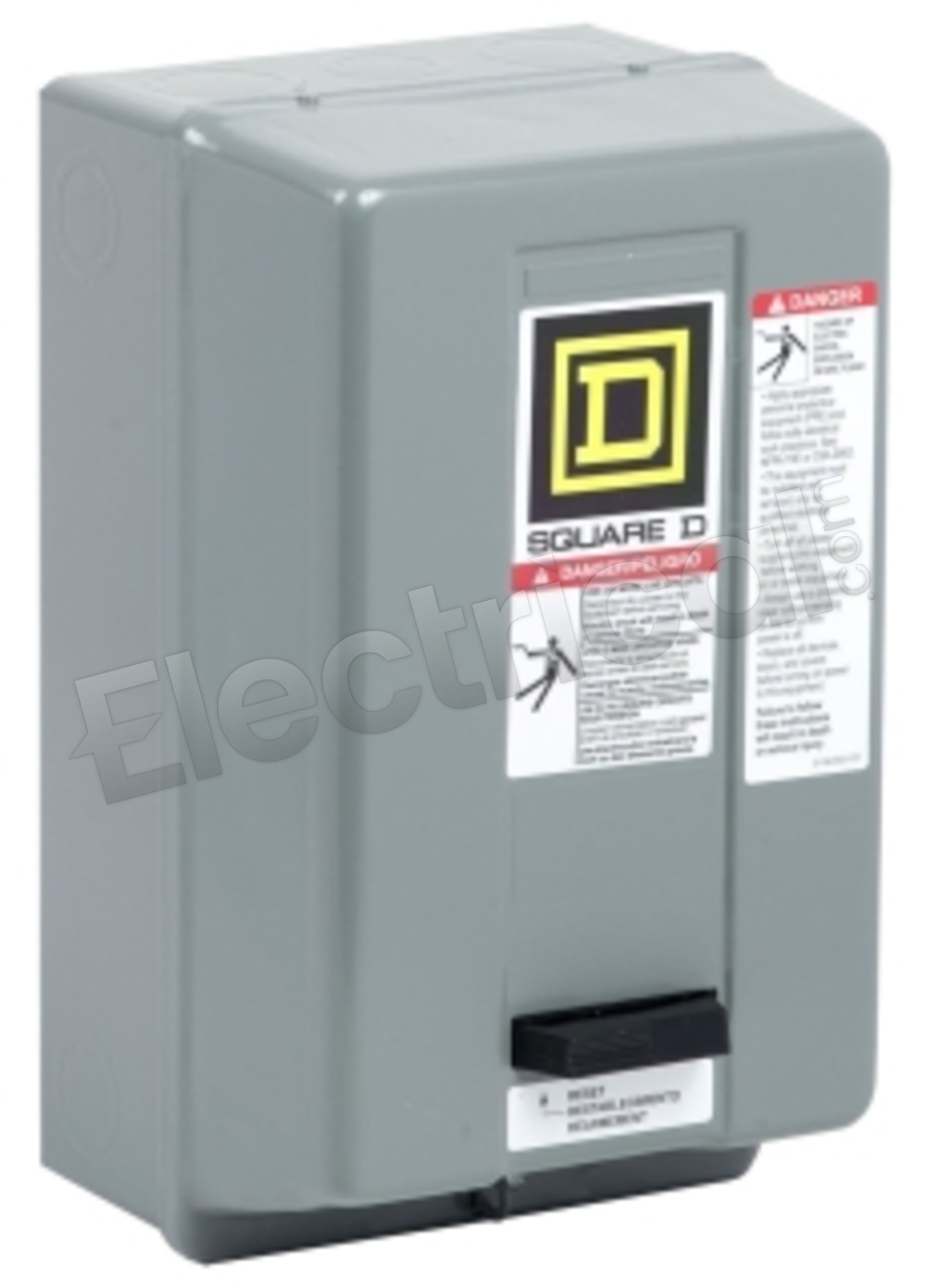

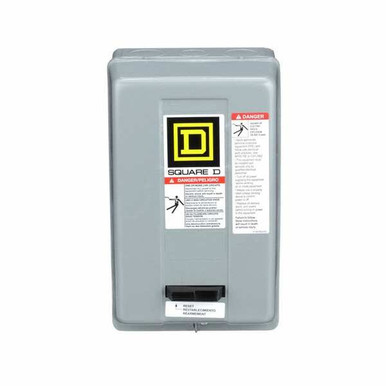

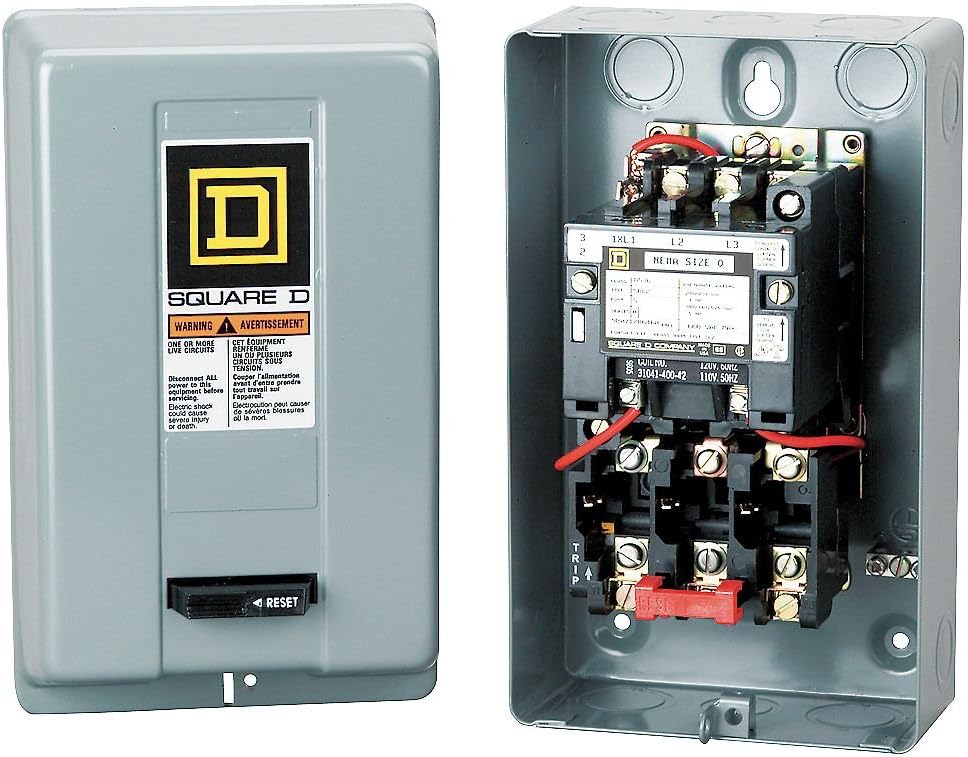

Square D By Schneider Electric Magnetic Motor Starter - 8536SBG2V03

8536SBG2V03 FULL VOLTAGE, NON REVERSING TYPE; NEMA 0 SIZE; 18 AMPERE CURRENT RATING; NEMA 1 ENCLOSURE TYPE; NEMA CONSTRUCTION STANDARD; 220 VAC AT 50 HZ, 240 VAC AT 60 HZ COIL VOLTAGE; 3 HP AT 200/230 VAC 50/60 HZ, 5 HP AT 460/575 VAC 50/60 HZ 3 PHASE; 2.2 KW AT 200/230 VAC 50/60 HZ, 3.7 KW AT 460/575 VAC 50/60 HZ 3 PHASE POWER RATING/VOLTAGE; MELTING ALLOY THERMAL OVERLOAD RELAY OVERLOADS; 3 PHASE; APPROVAL UL, CSA, CE; NUMBER OF POLES 3; 8536 MODEL

NEMA Magnetic Motor Starters with Standard Overload Relays Melting alloy thermal overload relays Class 20 thermal protection 2- or 3-pole, 60/50 Hz, 600VAC max. Thermal units sold separately.Full-voltage starters start and stop 1- and 3-phase AC motors. Manual push-to-test and visible trip indicator. Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position. Normally open holding circuit contact for 3-wire control. Angled contacts provide high contact pressure and positive seating. Spring-assisted gravity dropout on de-energizing contacts quickly extinguishes any arcing.UL Listed and CSA Certified.<br /><br /> Item: Magnetic Motor Starter<br /> NEMA Size: 0<br /> Amps AC: 18<br /> Coil Volts: 240VAC<br /> Enclosure NEMA Rating: 1<br /> HP @ 3 Phase - 240V: 3<br /> HP @ 3 Phase - 480V: 5<br /> Action: Nonreversing<br /> Number of Poles: 3<br /> HP @ 3 Phase - 208V: 3<br /> HP @ 3 Phase - 575V: 5<br /> Height: 10"<br /> Width: 6"<br /> Depth: 5.56"<br /> Standards: UL Listed/CSA Certified<br /> Starter Type: NEMA<br /> Hz: 50/60<br />
