Kyocera

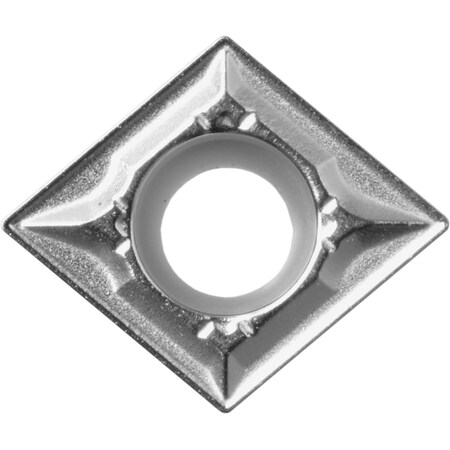

<ul><li>Insert for External Turning, Facing, Boring, Internal Facing</li><li>2 Cutting Edges</li><li>Inner structure has high toughness and chipping resistance along with thermal shock resistance</li><li>Application: Recommended cermet for stable steel machining and high quality surface finish</li></ul><p>Product Details:</p><ul><li>Insert Style: CCMT</li><li>Insert Size: 32505</li><li>Chipbreaker: GK</li><li>Insert Grade: TN620</li><li>Material: Cermet</li><li>Coating Process: Uncoated</li><li>Coating / Composition: TiCN</li><li>[IC] Inscribed Circle (Decimal Inch): 0.3750</li><li>[IC] Inscribed Circle (mm): 9.53</li><li>[S] Thickness (Decimal Inch): 0.1563</li><li>[S] Thickness (mm): 3.97</li><li>[RE] Corner Radius (Decimal Inch): 0.0079</li><li>[RE] Corner Radius (mm): 0.20</li><li>[D1] Hole Diameter (Decimal Inch): 0.1732</li><li>[D1] Hole Diameter (mm): 4.40</li><li>Rake: Positive</li><li>[AN] Relief Angle (Degree): 7</li><li>Included Angle (Degree): 80</li><li>Primary Workpiece Material: Steel</li><li>Shape: Diamond</li><li>Insert Hand: Neutral</li><li>Insert Holding Method: Screw</li><li>Number of Cutting Edges: 2</li><li>Application: External Turning, Facing, Boring, Internal Facing</li><li>Usage Classification: Light Interruption</li><li>Hole (Yes/No): Yes</li><li>Cutting Range: Finishing-Medium</li><li>Compatible Holders (Partial): ACLCR...-3JXFF, ACLCL...-3JXFF, ACLCR...-09FF, ACLCL...-09FF, SCLCR...-3…, SCLCL...-3…, SCLCR...-3JXFF, SCLCL...-3JXFF, SCLCR...-09…, SCLCL...-09…, A...SCLCR3..., A...SCLCL3..., A...SCLCR09-..., A...SCLCL09-..., S...SCLCR09-..., S...SCLCL09-..., E...SCLCR3..., E...SCLCL3..., E...SCLCR09-..., E...SCLCL09-..., KSTBSR...CCET325, HA32SCLCR09-40, HA32SCLCL09-40</li></ul><p >TN610 / TN620 / PV710 / PV720 Brochure</p>
