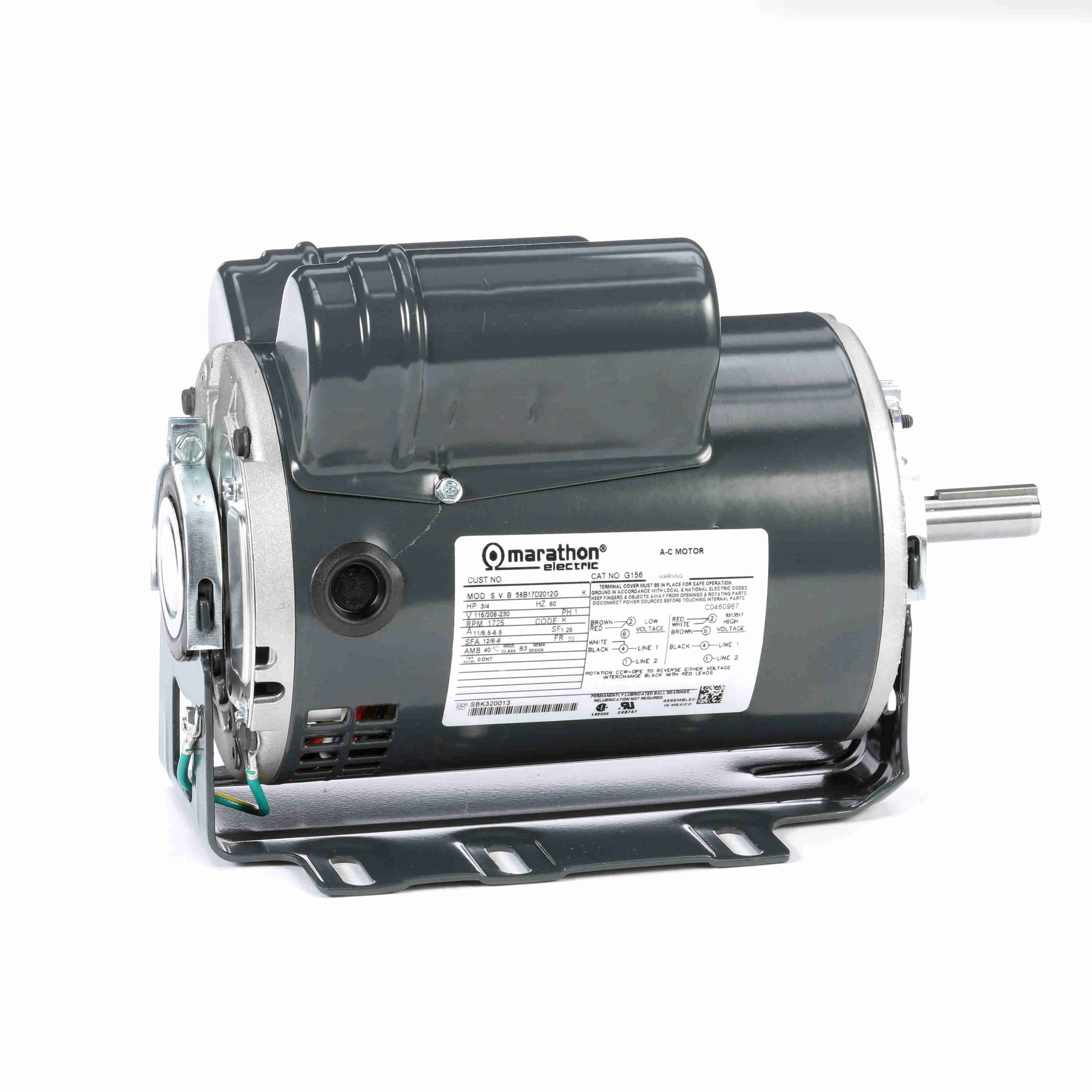

Marathon Motors 056B17D2012 | G156 Single Phase Motor | 46N391 | Raptor Supplies Worldwide

Designed for mechanical loads, and for hard-to-start applications such as conveyors, belt-driven equipment, machine tools, and reciprocating pumps, this general purpose motor helps keep equipment moving. It features an open dripproof motor enclosure design.<br /><br /> Item: General Purpose Motor<br /> Motor Application: General Application<br /> Motor Design: Capacitor-Start/Run<br /> Motor Enclosure Design: Open Dripproof<br /> HP: 3/4<br /> Nameplate RPM: 1725<br /> Frame: 56<br /> Voltage: 115/208-230<br /> Hz: 60<br /> Phase: 1<br /> Full Load Amps: 11.0/5.5-5.5<br /> No. of Speeds: 1<br /> Motor Mounting Type: Cradle Base<br /> Motor Mounting Position: Horizontal<br /> Motor Thermal Protection: None<br /> Ins. Class: B<br /> Motor Service Factor: 1.25<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 1-7/8"<br /> Length Less Shaft: 9-1/2"<br /> Overall Length: 11-1/2"<br /> Motor Shaft Design: Keyed<br /> RPM Range: 1701-1800<br /> Standards: UL (E49747), CSA (LR2025)<br /> Duty: Continuous<br /> Motor Efficiency Group: Standard Efficient<br /> Nominal Efficiency: 82.6%<br /> Inverter Rated: No<br /> Manufacturers Warranty Length: 1 yr.<br /> RPM Group: 1701-1800
