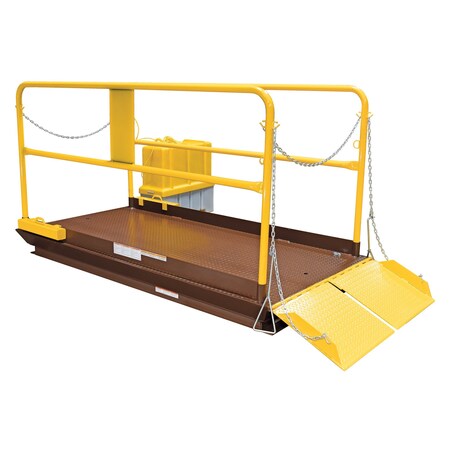

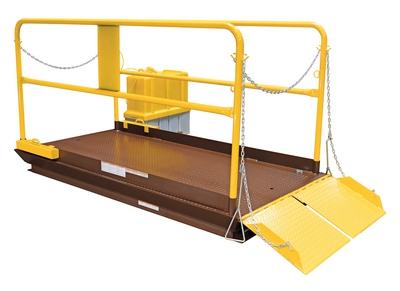

Prem Truck Scissor Dock Lift 10K 6X12 Ft

Save time and reduce man-hours where there are no docks with a Truck Scissor Dock Lift. The pit or surface mount has an optional approach ramp. Engineered and designed for maximum safety and efficiency. The checkered plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature emergency velocity fuse if line breaks. It comes complete with upper travel limit switch and overload relief valve. The push-button control is on a long coil cord. Pre-wired control box includes magnetic starter and overload fuse. High visibility safety yellow removable handrails with fixed toe boards are standard. Includes beveled toe-guards and electric toe-guards around perimeter of platform. The external motor can be located up to eight (8) feet away from lift. Limited Warranty: 1 year. Uniform Capacity (lbs.): 10000, Overall Frame Width (in.): 62, Overall Frame Length (in.): 118, Platform Length (in.): 144, Platform Width (in.): 72, Lowered Height (in.): 14, Raised Height (in.): 72, Push Button Coil Cord Length (feet)

Includes pre-wired control box with Magnetic Starter and overload fuse Comes standard with a 6.5HP 460V 3 PH 60 HZ motor - that can be located as much as 8 feet away from the unit Other Power options available Has excellent safety features - like the electric toe guard. DO NOT remove safety devices! For outdoor use - consider the outdoor dock lift with galvanized base and legs See below for the site survey fork and the installation an owners manual Order Now Platform W x L: 72 x144 Wt. (lbs.): 6,504# Lowered Hgt.: 14 In Lift Raised Hgt.: 72 In Frame Size W X L: 62 x 118 In
