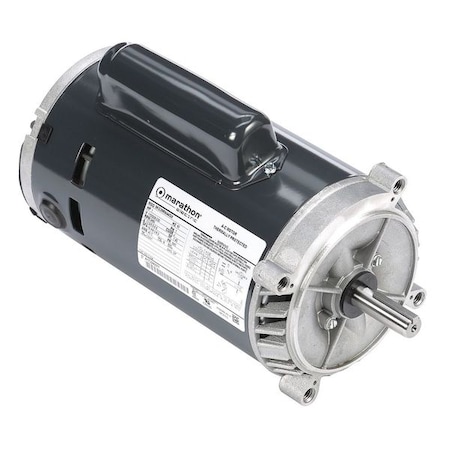

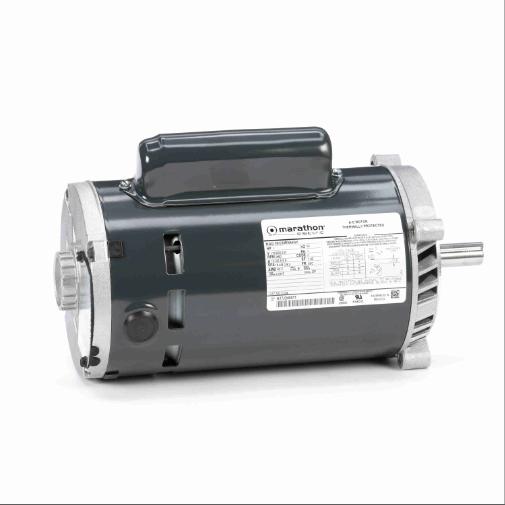

Marathon 5KC39RN44X, Single Phase HVAC Motor, 1 HP, 115/208-230 Volts, 6.6 Amps1 Phase, 3450 RPM, ODP Enclosure, 56C Frame, Round, Rolled Steel Frame, Catalog No: C334

' Jet Pump Motor, Capacitor-Start, 1 HP, Nameplate RPM 3450, Voltage 115/208-230, 1 Phase, Frame 56C, Open Dripproof, Full Load Amps 13.2/6.5-6.6, 60 Hz, Motor Mounting Type Face, Motor Thermal Protection Auto, Ins. Class B, Motor Service Factor 1.40, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Overall Length 12-5/8 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Includes Shaft Slinger '

1-phase jet pump motor features a 2-compartment design with locked ball bearings on shaft end. Voltage-change plug and enlarged conduit box provide easy terminal lead connection.<br /><br /> Item: Jet Pump Motor<br /> Motor Application: Pump<br /> Motor Sub Application: Jet Pump<br /> Motor Design: Capacitor-Start<br /> Motor Enclosure Design: Open Dripproof<br /> HP: 1<br /> Nameplate RPM: 3450<br /> Frame: 56C<br /> Motor Shaft Rotation: CW/CCW<br /> Voltage: 115/208-230<br /> Full Load Amps: 13.2/6.5-6.6<br /> Phase: 1<br /> Hz: 60<br /> Motor Mounting Type: Face<br /> Motor Mounting Position: Horizontal<br /> Motor Bearings: Ball<br /> Motor Thermal Protection: Auto<br /> Motor Service Factor: 1.40<br /> Max. Ambient Temp.: 40 Degrees C<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 1-7/8"<br /> Motor Shaft Design: Keyed<br /> Shaft Material: Stainless Steel<br /> Overall Length: 12-5/8"<br /> Body Dia.: 5.66"<br /> Ins. Class: B<br /> RPM Range: 3001-3600<br /> Duty: Continuous<br /> Motor Efficiency Group: Standard Efficient<br /> Nominal Efficiency: 68.0%<br /> Includes: Shaft Slinger<br />
