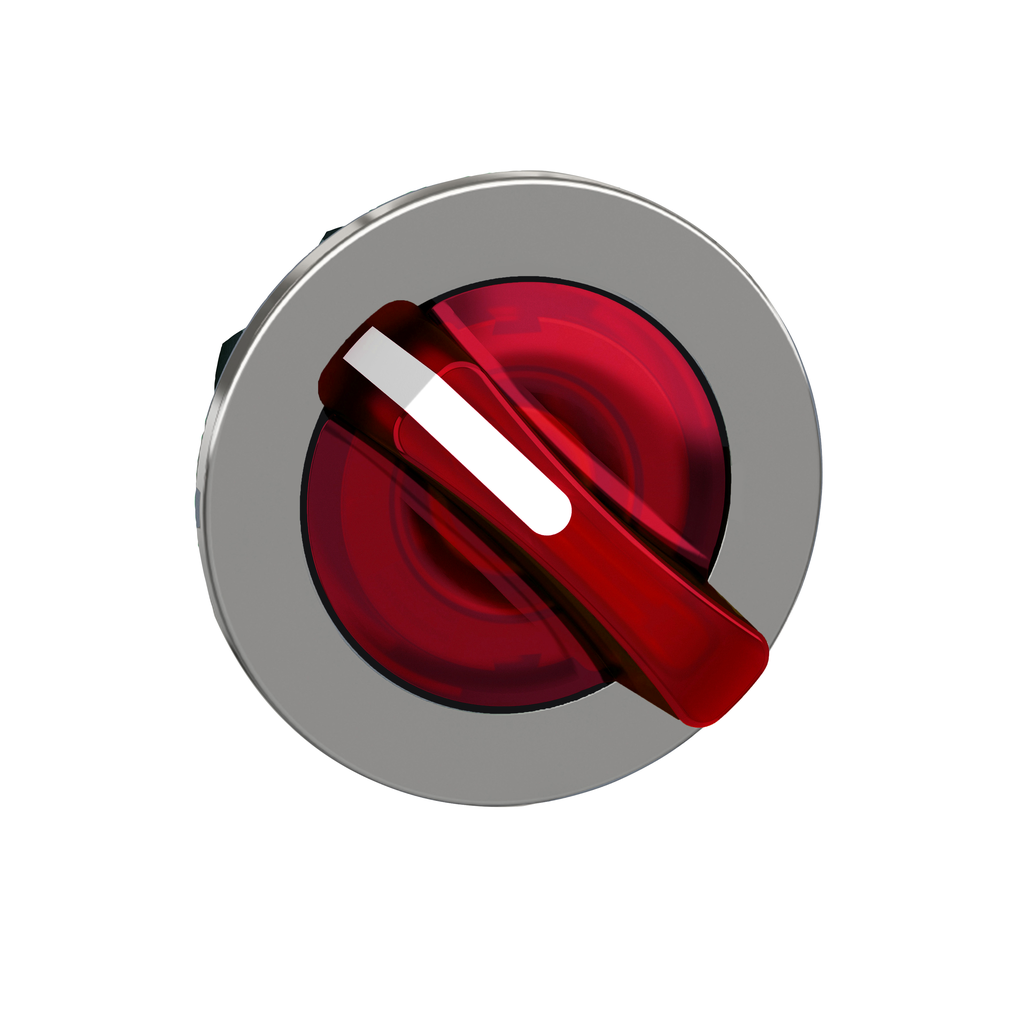

Head for illuminated selector switch, Harmony XB4, flush mounted red illum 2 position stay put | Mayer Electric

SQUARE D . SQDZB4FK1243

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute00Harmony XB4
Attribute0130.5 mm
Attribute02stay put
Attribute03head for illuminated selector switch
Attribute04round
Attribute05built-in-flush
Attribute06, moq, multiple, tierMinQty11
Attribute07chromium plated metal
Attribute08red standard handle
Attribute092 positions 90?
Attribute10integral LED
Attribute11ZB4F
Attribute1218 months
Attribute13M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
Attribute140.078 kg
Attribute15, Attribute1936.6 mm
Attribute16basic element
Attribute177000000 Pa 55 ?C 0.1 m
Attribute181000000 cycles
Attribute2047 mm
Attribute21, Attribute22, Attribute25, Attribute28Yes
Attribute23ENVPEP1808008EN
Attribute24Green Premium product
Attribute26Free of Substances of Very High Concern above the threshold
Attribute27Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute29X
Attribute30ENVEOLI1808008EN
Attribute31Pro-active compliance (Product out of EU RoHS legal scope)
Attribute32UL Listed || CSA || CCC || EAC
Attribute33IK06 IEC 50102
Attribute34, Attribute39-40-70 ?C
Attribute35CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
Attribute3630 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Attribute375 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Attribute38IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Attribute40class I IEC 60536
Attribute41TH
AttributeKey00Range Of Product
AttributeKey01Mounting Diameter
AttributeKey02Type Of Operator
AttributeKey03Product Or Component Type
AttributeKey04Shape Of Signaling Unit Head
AttributeKey05Head Type
AttributeKey06Sale Per Indivisible Quantity
AttributeKey07Bezel Material
AttributeKey08Operator Profile
AttributeKey09Operator Position Information
AttributeKey10Product Compatibility
AttributeKey11Device Short Name
AttributeKey12Warranty
AttributeKey13Electrical Composition Code
AttributeKey14, Weight_AttribNet Weight
AttributeKey15, height_AttribCad Overall Height
AttributeKey16Device Presentation
AttributeKey17Resistance To High Pressure Washer
AttributeKey18Mechanical Durability
AttributeKey19, width_AttribCad Overall Width
AttributeKey20, length_AttribCad Overall Depth
AttributeKey21Rohs Exemption Information
AttributeKey22Mercury Free
AttributeKey23Environmental Disclosure
AttributeKey24Sustainable Offer Status
AttributeKey25Toxic Heavy Metal Free
AttributeKey26Reach Regulation
AttributeKey27California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey28Reach Free Of Svhc
AttributeKey29China Rohs Regulation
AttributeKey30Circularity Profile
AttributeKey31Eu Rohs Directive
AttributeKey32Product Certifications
AttributeKey33Ik Degree Of Protection
AttributeKey34Ambient Air Temperature For Operation
AttributeKey35Standards
AttributeKey36Shock Resistance
AttributeKey37Vibration Resistance
AttributeKey38Ip Degree Of Protection
AttributeKey39Ambient Air Temperature For Storage
AttributeKey40Overvoltage Category
AttributeKey41Protective Treatment
DimensionUnitmm
Extra Product NameHead for illuminated selector switch, Harmony XB4, flush mounted red illum 2 position stay put | Mayer Electric
UPC3606489582043
Weight0.078
WeightUnitkg
height, width36.6
jsonUrlData/Product/SQUARE-D-Head-for-illuminated-selector-switch-Harmony-XB4-flush-mounted-red-illum-2-position-stay-put-3606489582043
jsonUrlData25b9fbedd-c532-4a18-8752-ade40063c4ff
length47.0
MPN, SKUSQDZB4FK1243
qtyInStock0
tierPrice128.91

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDZB4FK1243111 @ $28.91
