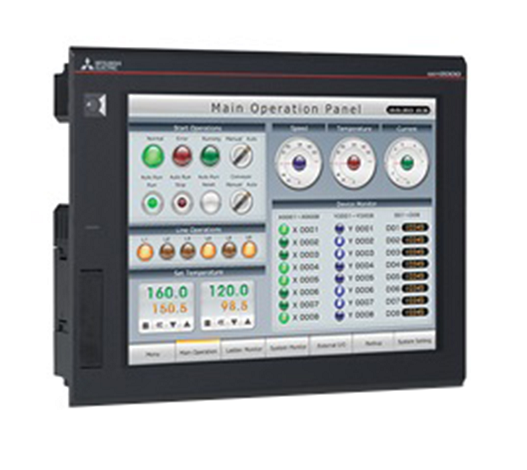

GT2708-STBA | PLC Touch Panel - HMI Display, GOT2000 Series, GT27 | Mitsubishi Electric Automation | MISUMI

Power Supply Specifications <br>[Input Power Supply Voltage]100 to 240VAC(+10%,-15%) <br>[Input Power Supply Frequency]50/60Hz +/-5% <br>[Power Consumption]Maximum Load 41W or less Stand Alone 15W Stand Alone w/ Backlight Off 10W <br>[Inrush Current]60A or less(2ms,ambient temperature 25 deg.(C),maximum load) <br>[Permissible Instantaneous Failure Time]Within 20ms(100VAC or more)[Noise Resistance]Noise voltage 1500Vp-p,noise width 1us by noise simulator with noise frequency25 to 60Hz <br>[Applicable Wire Size]0.75 to 2 [mm^2] <br>[Clamp Terminal]Clamp terminals for M3 screw RAV1.25-3,V2-S3.3,V2-N3A,FV2-N3A <br>[Tightening Torque(Terminal Block's Terminal Screws)]0.5 to 0.8 [N*m]Performance Specifications[Display Section] <br> Type TFT color LCD Screen Size 8.4" <br> Resolution(Dots)800 x 600 VGA Display size(W x H)mm 170.9 x 128.2 <br> Number of Characters 16-dot standard font:50 chars. x 37 lines(2-byte)12-dot standard font:66 chars. x 50 lines(2-byte) <br> Display Colors 65536 colors <br> Intensity Adjustment 32-level adjustment <br> Frame Color Brack <br>[Backlight]Type LED(not replaceable)Life Approx. 60000 hours or more(Time for display intensity reaches 50% at ambient temperature of 25 deg.(C)) <br>[Touch Panel]Type Analog resistive film Key Size(dots)Minimum 2 x 2 dots(per key)Simultaneous Press Maximum 2 points Life 1 million times or more(operating force 0.98N or less) <br>[Memory]User Memory Capacity Memory for storage(ROM):57MB,Memory for operation(RAM):128MB Life(No. of Writings)100000 times <br>[Battery]Type GT11-50BAT lithium battery Life Approx. 5 years(ambient temperature 25 deg.(C))[Buzzer Output]Single tone(tone,tone length adjustable) <br>[Power LED]Emission color:2 colors(blue,orange) <br>[External Dimensions(W x H x D)mm]241 x 194 x 52 <br>[Panel Cutout(W x H)mm]227 x 176 <br>[Weight(kg)(Excluding Mounting Brackets)]1.5 <br>[Applicable Software Package]GT Works3 Version 1.113T or Later<br><br><br>(1)

Mitsubishi HMI GT2708-STBA<br> Part # GT2708-STBA<br> New In Box !<br><br>Product comes with latest date code and version, standard one year factory warranty!<br> <br> All products in stock are New In Box, Factory Sealed.<br> <br> We usually ship via FedEx or DHL, shipping time is 3-7 business days. <br> <br> Unlike most of our products, this is NOT our stock item. Delivery time for this item is 2-3 weeks after your purchase!
