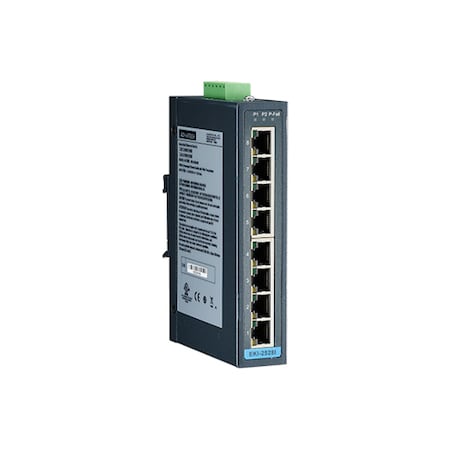

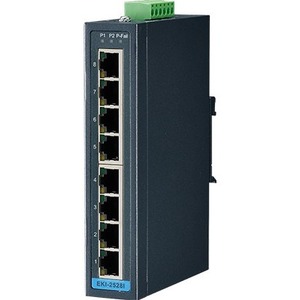

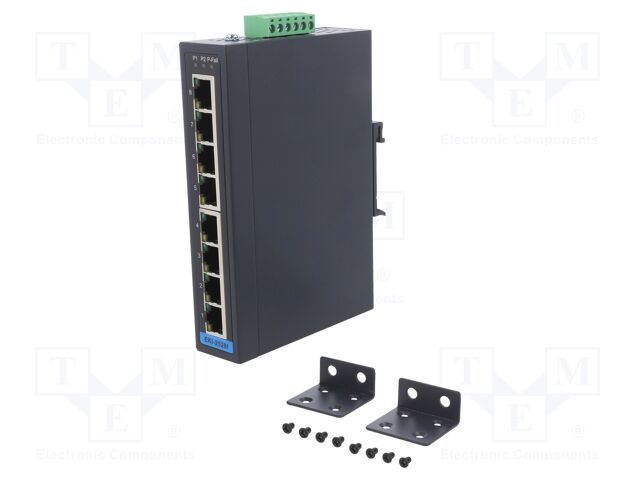

Advantech Enet Sw, Rj45X8, 10/100Mbps - EKI-2528I-BE

The EKI-2525/2528 supports a Fast Ethernet solution. The power is a +12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resetable Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal, EKI-2525/2528 will automatically get back to work. Each port of EKI-2525/2528 has 2 LED's to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2525/2528 comes with compact metal housing that rates IP30 to help against from dusty industrial environments. Product Type: Ethernet Switch Layer Supported: 2 Product Type: Ethernet Switch Manufacturer Part Number: EKI-2528I-BE Limited Warranty: 5 Year Layer Supported: 2 Form Factor: DIN Rail Mountable Form Factor: Wall Mountable Form Factor: DIN Rail Mountable Form Factor: Wall Mountable Manufacturer: Advantech Co., Ltd Product Model: EKI-2528 Product Name: 8-Port Ethernet Switch w/ Wide Temp Network Technology: 10/100Base-TX Brand Name: Advantech Product Series: EKI-2000 Brand Name: Advantech Height: 5.5 Width: 1.2 Depth: 3.7 Manageable: No Ethernet Technology: Fast Ethernet Product Family: EKI-2000 Stack Port: No Media Type Supported: Twisted Pair Total Number of Network Ports: 8 Manageable: No Environmentally Friendly: Yes Environmental Certification: WEEE Environmental Certification: RoHS Ethernet Technology: Fast Ethernet Modular: No Uplink Port: No Stack Port: No Media Type Supported: Twisted Pair Total Number of Network Ports: 8 Port/Expansion Slot Details: 8 x Fast Ethernet Network

8-port Unmanaged Ind. Ethernet Switch with Wide Temperature
