- mpnTSD-MIX42RT
- brandname: Atlas
- manufacturername: Atlas

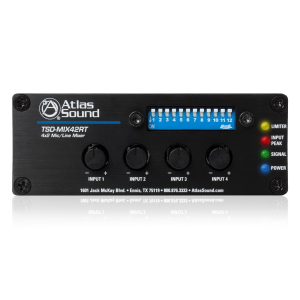

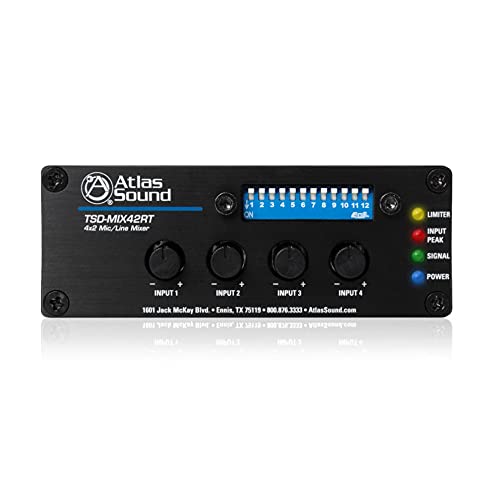

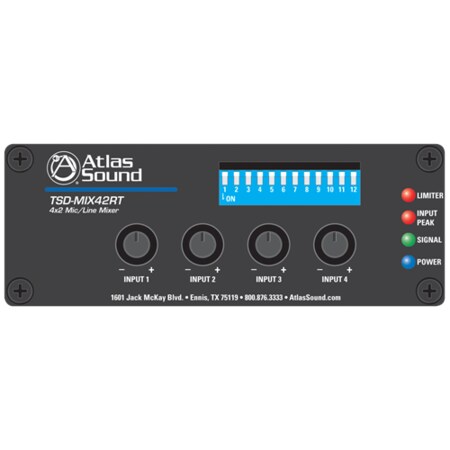

AtlasIED TSD-MIX42RT 4x2 Mic/Line Mixer with Priority Sense and Remote Control
- Brand: AtlasIED
- PartNumber: TSD-MIX42RT
- Model: TSD-MIX42RT
- PackageQuantity: 1
- Manufacturer: AtlasIED
- Label: AtlasIED
Attributes
| Key | Value |
|---|
| Application/Usage | Studio, Mixer, Meeting,. |
| Brackets | Qty 2, Included |
| Brand Name | Atlas Sound |
| Cable Retainer | Qty 2, Included |
| Chassis Color | Black |
| Chassis Material | Aluminum |
| Color | Black |
| Connection | 3.5mm Stereo, Removable. |
| Country of Origin (subj. | Unknown |
| DC 12V Output | 12V DC to power wall co. |
| Depth | 5.2, 5.2", 5.2" (13.2 c. |
| Description | 4 x 2 Stereo Line Mixer. |
| Dimensions | 1.5" (39mm) x 4" (101mm. |
| Dip Switch # 1 | 24VDC Phantom Power |
| Dip Switch # 10 | Remote Level Master/Inp. |
| Dip Switch # 11: Wall P. | Juke Box Override will . |
| Dip Switch # 12 | Not Used |
| Dip Switch # 2 | Input 4 Mic or Line Sel. |
| Dip Switch # 3 | Low Cut Filter 125Hz |
| Dip Switch # 4 | Juke Box Override |
| Dip Switch # 5 | Juke Box Override Mute . |
| Dip Switch # 6 | Input 3 Mute Receive |
| Dip Switch # 7 | Input 2 Mute Receive |
| Dip Switch # 8 | Input 1 Mute Receive |
| Dip Switch # 9 | Outputs Left and Right . |
| Environmental Certifica. | RoHS |
| Environmentally Friendly | Yes |
| External Power Supply | cUL, CE, RoHS, TUV |
| Frequency Response | 20Hz - 20kHz (+/-1dB), . |
| Height | 1.5", 1.5, 1.5" (3.81 c. |
| Impedance | 10k, 1.2K Balanced, 600. |
| Input Impedance | 1.2K? Balanced, 600? Un. |
| Input Level | 316mV (-10dB) = 2V (+6d. |
| Input Level Control | Qty 4, Removable Knobs . |
| Input Peak | Red, -3dB Before Clip, . |
| Input Signal | Green, 25mV ON Threshol. |
| Input Voltage | 24 V DC |
| Limited Warranty | 3 Year |
| Limiter | Red, Limiter Activation. |
| Line Input Level | 1V (0dBV) Balanced = 2V. |
| Line Output Level | 1V (0dBV) In = 2V (+6dB. |
| Low Cut Filter | 125Hz/12dB Defeatable |
| Manufacturer | Atlas Sound LP. |
| Manufacturer Part Number | TSD-MIX42RT |
| Manufacturer Website Ad. | http://www.atlassound.c. |
| Material | Aluminum - Chassis |
| Maximum Power Consumpti. | 1.40 W |
| Mic Input Level | 46dB Gain, 10mV (-40dB). |
| Microphone | Yes |
| Microphone Input Level | 46dB Gain 10mV (-40dBV). |
| Mount Type | Rack Mountable |
| Mute CC | Contact Closure, Remova. |
| Note | Juke Box Override will . |
| Output Impedance | 300? Balanced, 150? Unb. |
| Output Limiter | Threshold Adjust 50mV M. |
| Phantom | 24VDC Defeatable |
| Phantom Power | 24VDC Defeatable |
| Power | Blue, Qty 1 |
| Power Consumption | 60mA |
| Power Consumption Curre. | 60mA |
| Power Consumption VA Wa. | 1.4W |
| Product Model | TSD-MIX42RT |
| Product Name | 4x2 Mic/Line Mixer with. |
| Product Series | TSD |
| Product Type | Audio Mixer |
| RCA Audio In | Yes |
| Remote Level Control Po. | 10k External Pot, Remov. |
| Signal To Noise Ratio L. | 85dBV |
| Signal To Noise Ratio M. | 78dBV |
| Signal to Noise: Line t. | 78dBV |
| THD | .06% & 1kHz, .06% @ 1kH. |
| TSD 24VDC | Power Supply |
| TSD-RMK | 1 RU Rack Panel, Option. |
| Type | Qty 1, Balanced Mic or . |
| Velcro | Industrial-Grade, Inclu. |
| Voltage | 24VDC, 60mA |
| Voltage Compatibility | 24V |
| VOX Mute Sens | Trim Adjust for Mic Sen. |
| Wall Controller Interfa. | Connects to optional WP. |
| Warranty | 3 years |
| Weight | 13oz., .3kg, 13.4oz, .3. |
| Weight (Approximate) | 6.61 lb |
| Width | 4" (10.16 cm), 4", 4 |
| WPD-MIX42RT | Wall Plate Input Select. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | PCNation | 5NN744 | 277.17 | 1 | In Stock | | ATLASIED | 1.0 | 277.17 @ 1 |
 | AI Consolidated | TSD-MIX42RT-ATLAS-SOUND | 310.4 | 1 | In Stock | | Atlas Sound | 25.2 | 310.4 @ 1 |
 | Performance Audio | ATL TSDMIX42RT | 338.99 | 1 | In Stock | | Atlas Sound | | 338.99 @ 1 |
 | primebuy.com | TSD-MIX42RT | 372.1 | 1 | In Stock | | AtlasIED | 0.8125 | 372.1 @ 1 |
 | bhphotovideo.com | ATTSDMIX42RT | 379.6688 | 1 | In Stock | | Atlas Sound | | 379.6688 @ 1 |
 | Zoro | G7761132 | 389.99 | 1 | In Stock | | Atlas | | 389.99 @ 1 |
 | conferenceroomav.com | TSD-MIX42RT | 393.99 | 1 | In Stock | | ATLASIED | 0.8375 | 393.99 @ 1 |
| Crutchfield | 978TSDMIX | 393.99 | 1 | In Stock | | AtlasIED | | 393.99 @ 1 |
 | alldataresource.com | 723633 | 405.89 | 1 | In Stock | | Atlas Sound | | 405.89 @ 1 |
| exertisalmo.com | TSD-MIX42RT | 488.99 | 1 | In Stock | | Atlas | | 488.99 @ 1 |
| Newark | 58AC4354 | 488.99 | 1 | In Stock | | ATLAS SOUND | | 488.99 @ 1 |
