- mpn2SC0435T2G1-17
- brandname: Power Integrations
- manufacturername: Power Integrations

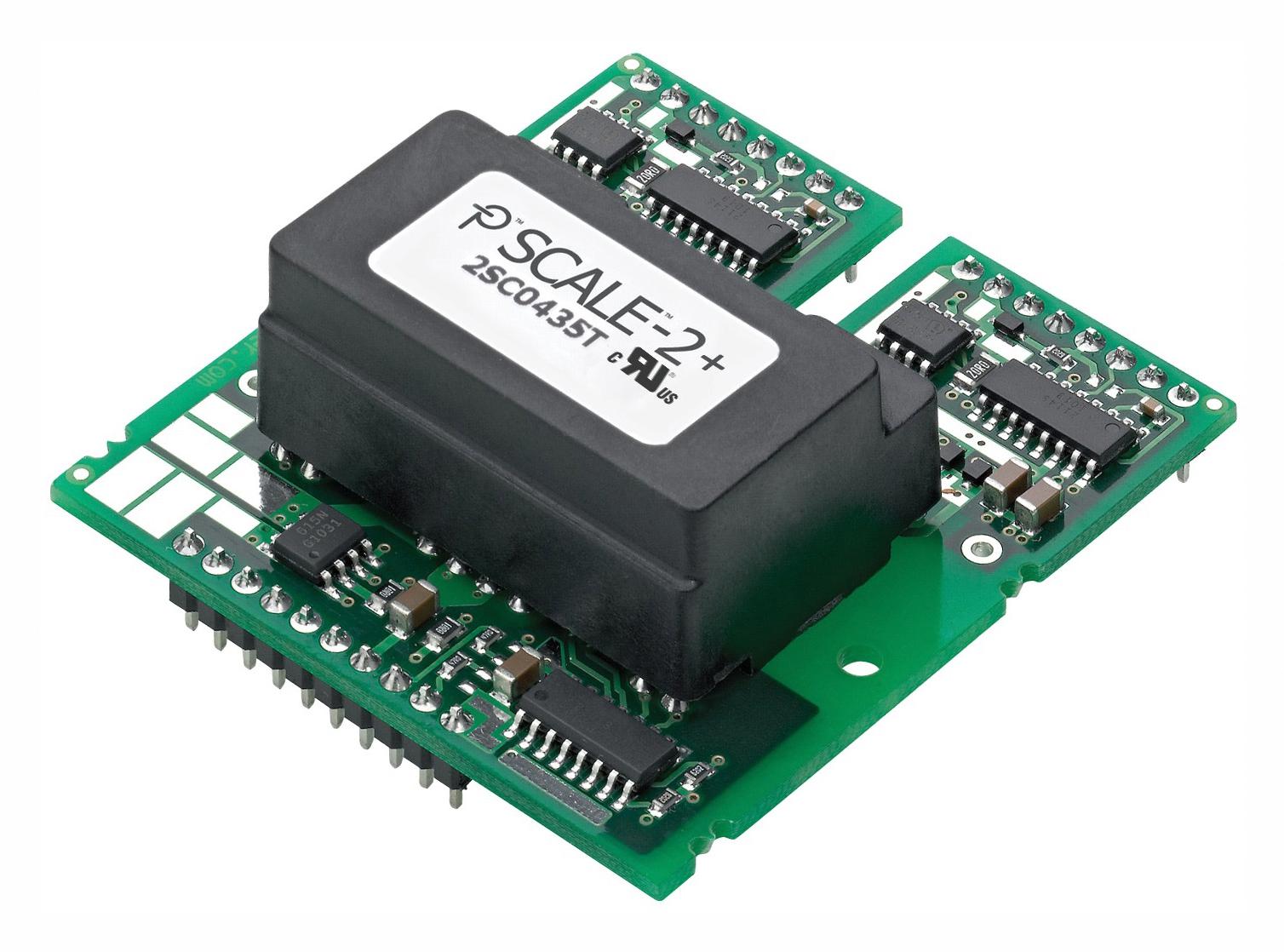

Power Management Modules Dual Ch SCALE 1700V IGBT Driver HVIC
- Brand: Power Integrations
- PartNumber: 2SC0435T2G1-17
Attributes
| Key | Value |
|---|
| Base Product Number | 2SC0435 |
| Category | Integrated Circuits (IC. |
| Channel Type | Independent, IGBT, N-Ch. |
| Current - Peak Output (. | -, 35A, 35A |
| Description | IC GATE DRVR HI/LOW SID. |
| Detailed Description | High-Side or Low-Side G. |
| Digi-Key Part Number | 1810-1029-ND |
| DigiKey Programmable | Not Verified |
| Driven Configuration | Independent, High-Side . |
| Gate Type | 14.5V ~ 15.5V, IGBT, N-. |
| High Side Voltage - Max. | 1700 V |
| Input Type | -, 20ns, 20ns |
| Logic Voltage - VIL, VIH | -, 35A, 35A |
| Manufacturer | Power Integrations |
| Manufacturer Product Nu. | 2SC0435T2G1-17 |
| Manufacturer Standard L. | 26 Weeks |
| Mfr | Power Integrations |
| Mounting Type | Module, Surface Mount |
| Number of Drivers | 2, 1700 V |
| Operating Temperature | -40?C ~ 85?C (TA), Surf. |
| Package | Active, Tray |
| Package / Case | Module |
| Part Status | High-Side or Low-Side |
| Product Status | Active |
| Rise / Fall Time (Typ) | -40?C ~ 85?C (TA), 20ns. |
| Series | Tray, SCALE?-2+ |
| Supplier Device Package | 2, Module |
| Voltage - Supply | 14.5V ~ 15.5V, - |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Future Electronics | C128568007 | 67.632 | 192 | In Stock | | Power Integrations | | 67.632 @ 192 |
 | Digi-Key | 7347493 | 99.71 | 1 | 118 | | Power Integrations | | 99.71 @ 1 |
| Mouser | 869-2SC0435T2G1-17 | 99.71 | 1 | 29 | | Power Integrations | | 99.71 @ 1 |
 | Newark | 37AJ1743 | 115.33 | 1 | In Stock | | POWER INTEGRATIONS | | 115.33 @ 1 |
| AmazonTP | B01BKA19EO | 164.68 | 1 | In Stock | 15 | Power Integrations | | 164.68 @ 1 |
