- mpnLTN8708K-HT
- brandname: LTS
- manufacturername: LTS

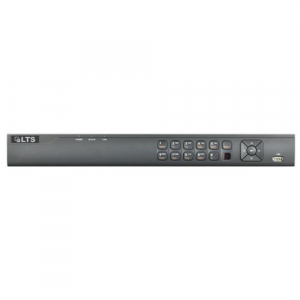

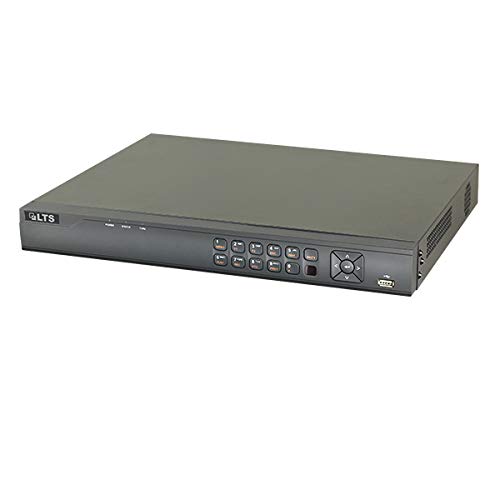

LTN8708K-HT H.265+ 4K Video Output Hybrid HD 8CH TVI 5MP + 4CH IP 6MP NVR NO HDD
- Brand: TSL
- PartNumber: LTN8708K-HT
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: LTS
- Label: LTS
Attributes
| Key | Value |
|---|
| Alarm In/Out | 8/4 |
| Analog Camera Connection | BNC |
| Audio bit rate | 64 Kbps |
| Audio compression | G.711u |
| Audio input | 4CH |
| Audio output | 1-ch, RCA (Linear, 1 k?) |
| Capacity | Up to 8TB capacity for . |
| Chassis | 1U chassis |
| Consumption | ? 20W |
| Country of Origin (subj. | United States |
| CVBS input | Support |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 1 . |
| Depth | 12 3/5 in |
| Dimension | 380 x 320 x 45 mm (15.0. |
| Dual- stream | Support |
| Encoding resolution | 8MP/5 MP/4 MP/3MP/1080p. |
| Features | 8 Channel Hybrid Networ. |
| Height | 1 4/5 in |
| Included Hard Drive Size | 8 TB |
| IP Video Input | 4CH, Up to 6 MP resolut. |
| Item | Hybrid Network Video Re. |
| Max. Frames per Second | Main Stream 8MP@8fps, 30 |
| Maximum Number of Hard . | 2 |
| Network Interface | 1, RJ45 10M/100M/1000M . |
| Network protocols | TCP/IP, PPPoE, DHCP, PT. |
| Operating Temp. | 14 Degrees to 131 Degr. |
| Power Required | 12V DC |
| Power Supply | DC 12V |
| Remote connections | 128 |
| SATA | 2 SATA |
| Serial Interface | 1; RS-485 serial interf. |
| Stream type | Video, Video & Audio |
| Supported AHD input | 1080p25, 1080p30, 720p2. |
| Supported HDTVI input | 8MP , 5MP, 4MP, 3MP, 10. |
| Synchronous playback | 8ch |
| USB Port | Front panel: 1 x USB 2.. |
| Video bit rate | 32 Kbps -10 Mbps |
| Video Compression Format | H.264, H.264 Zip+, H.26. |
| Video Input | 8-ch BNC interface (1.0. |
| Video Output | HDMI, VGA |
| Video/Audio Input | H.265+/H.265/H.264 Zip+. |
| Weight | ?2Kg (4. 4lb) |
| Width | 15 in |
| Working Humidity | 10% - 90% |
| Working Temperature | -10 ?C ~ +55 ?C (14?F -. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | LTN8708K-HT | 274.1 | 1 | In Stock | | LTS | 2.0 | 274.1 @ 1 |
 | usmegastore.com | LTN8708K-HT | 321.9 | 1 | In Stock | | LTS | 2.0 | 321.9 @ 1 |
 | Zoro | G301059612 | 383.68 | 1 | In Stock | 2 | Lts | 10.0 | 383.68 @ 1 |
