Johnson Controls A19ACA-15C

B009PAZB5U

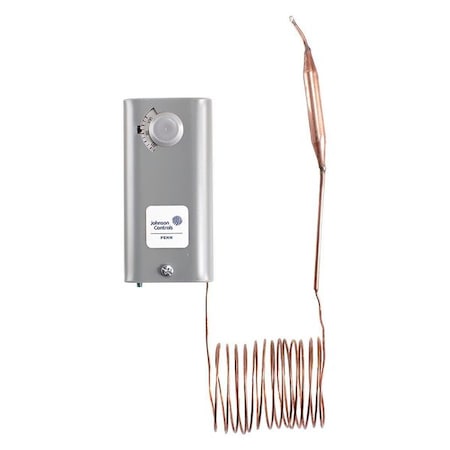

Johnson Controls A19ACA-15C Line Volt Mechanical Thermostat, 24 to 277 VAC, 16 Amp

Johnson Controls A19ACA-15C Line Volt Mechanical Thermostat, 24 to 277 VAC, 16 Ampzoom

Attributes

Key Value
ApplicationHeating or Cool, Heat o.
BrandJohnson Controls
Bulb Diameter3/8 in, 1/2 in
Bulb Length4 in
Capillary Length10 ', 120 Inch, 120 in
Capillary Length/Bulb D.10 ft Capillary, 4 in x.
Changeover TypeManual
ColorGray
Compatible System TypeHot Water Heating Contr.
Contact Rating120V AC, 240V AC
Contact Rating Resistiv.16 A
Contact Rating Resistiv.8 A
Contact Rating Resistiv.6.9 A
Control Temperature Ran.-30 Degrees F, 100 Degr.
Control TypeScrewdriver
Country of Origin (subj.United States
Current Stock9
Depth1 13/16 in
DifferentialManual Reset
Differential TypeManual Reset
Electrical Connection T.Hardwired, Screw Termin.
Enclosure ColourGray
Enclosure MaterialSteel
Enclosure NEMA RatingNEMA 1
Enclosure TypeGalvanized/Steel, NEMA 1
Family SeriesJohnson Controls Contro.
Full Load Amps @ 120V AC16 A
Full Load Amps @ 240V AC8 A
Gross Weight1.065 lbs
Height4 3/8 in
Inductive Amps @ 120V16 A
Inductive Amps @ 208V9.2 A
Inductive Amps @ 240V8 A
International ShippingNo
ItemLine Volt Mechanical Ts.
Item NumberA19ACA-15C
Lead TimeExpected to ship in 1-2.
Locked Rotor Amps @ 120V96 A
Locked Rotor Amps @ 240V48 A
ManufacturerJohnson Controls
Manufacturer Part NumberA19ACA-15C
Max Temperature140 ?F
Maximum Control Tempera.100 Degrees F
Maximum Operating Tempe.140 Degrees F
Minimum Control Tempera.-30 Degrees F
Minimum Operating Tempe.-35 Degrees F
Mounting TypeFlat Surface, Surface M.
MpnA19ACA-15C
Net Weight0.91 lbs
Number of Cooling Stages1
Number of Heating Stages1
Number of Poles1
Number of Relay Inputs1
Number of Switches1
Operating Temperature R.-35 Degrees F, 140 Degr.
Output1 SPST
Overall Depth1 3/4 in, 1 7/8 in
Overall Height4 3/8 in, 4 1/2 in
Overall Width2 1/4 in, 2 1/8 in
Pilot Duty Rating125 VA @ 24 to 600V AC
Product SeriesA19 Remote Bulb Control
Resistive Amps @ 208V AC9.2 A
Sensing Bulb Dia.3/8 in
Sensing Bulb Length4 in
Sensor LocationRemote
Sensor TypeBulb, Hydraulic Capilla.
Setpoint Temp Range-30-100 ?F
SKUZO-G5063073
Stages1 Heat, 1 Cool
StandardsUL E6688; CSA LR948/481.
Switch ActionClose on Rise
Switch TypeSPST, SPDT
Temperature DifferentialManual Reset
Temperature ScaleFahrenheit/Celsius
Temperature Sensitivity+/-2 Degrees F
Thermostat Control Range-30 Degrees to 100 Deg.
Thermostat TypeIndoor Single-Stage Con.
TypeLine Volt Mechanical Ts.
UPC78502808460
Voltage120/208/240VAC, 24 to 2.
Web BrandJohnson Controls
Width2 1/8 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomblackhawksupply.comA19ACA-15C117.91In StockJohnson Controls117.9 @ 1
thumbzoomcappusa.com449385119.781In StockJohnson Controls119.78 @ 1
thumbzoomZoroG5063073120.99126Johnson Controls1.1120.99 @ 1
thumbzoomsustainablesupply.comC1135016128.271In StockJohnson Controls1.1128.27 @ 1
thumbzoomsimsupply.comZO-G5063073148.0219Johnson Controls148.02 @ 1
thumbzoomGalcoA19ACA-15C-JHSN149.6517Johnson Controls1.065149.65 @ 1
thumbzoomwaterpumpsnow.comA19ACA-15C158.41In StockJohnson2.0158.4 @ 1
thumbzoomRadwellA19ACA-15C160.013JOHNSON CONTROLS160.0 @ 1
thumbzoomNational Supply NetworkB476269181.841In StockJohnson Controls Inc181.84 @ 1
KeleA19ACA-15C184.081In StockJohnson Controls184.08 @ 1
grainger.caJHCA19ACA15C208.966805461In StockJOHNSON CONTROLS1.1208.96680546 @ 1
building-controls.comA19ACA-15C286.171In StockJOHNSON286.17 @ 1
