- mpnC20752
- brandname: CLE-LINE
- manufacturername: CLE-LINE

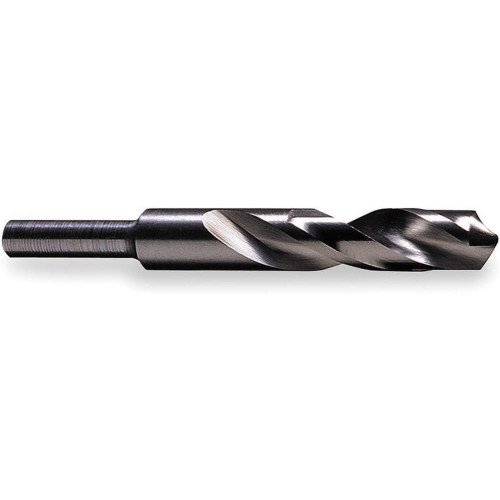

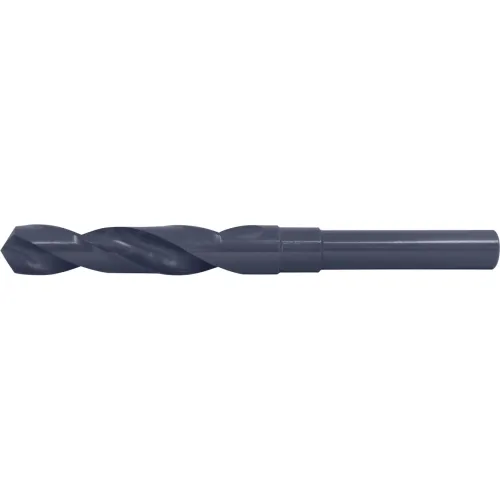

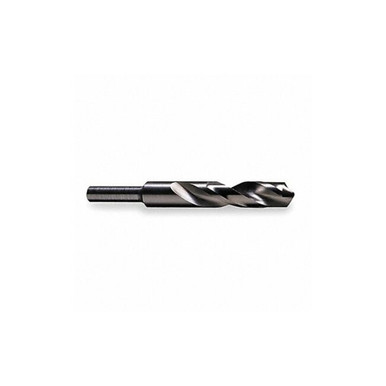

Silver/Deming Drill, 27/32, Hss, 118 Deg
- Brand: Cle-line
- PartNumber: C20752
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Cle-Line
- Label: Cle-Line
Attributes
| Key | Value |
|---|
| Applicable Materials | Iron Based Ferrous Meta. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Current Stock | 22 |
| Cutting Depth | 3-1/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.8438 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.8438" |
| Diameter (Fraction) | 27/32" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 27/32 in |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Size - Decimal In. | 0.8438 in |
| Drill Size - Fraction | 27/32 in |
| Drill Size System | Fractional |
| Drill Style | Silver & Deming Drill |
| Finish | Black Oxide |
| Flute Length | 3 1/8 in, 3.1250", 3-1/. |
| Flute Length (Metric) | 79.38mm |
| Flute Type | Spiral |
| Grade | General Purpose |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Reduced Shank Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| List Number | 1813 |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 2 1/2 in |
| Mpn | C20752 |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 6.0000", 6 in |
| Overall Length (Metric) | 152.40mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point type | Conventional Point |
| Point Type | Radial |
| Series | 1813 |
| Shank Configuration | Reduced |
| Shank Dia. | 1/2 in |
| Shank Length | 2 1/4 in, 2.2500" |
| Shank Length (Metric) | 57.15mm |
| Shank Neck Diameter | 0.7998" |
| Shank Neck Length | 0.5000" |
| Shank Size | 0.5000", 1/2 in |
| Shank Size (Metric) | 12.70mm |
| Shank Type | Round, Reduced |
| SKU | ZO-G3066901, C20752 |
| Style | 1813 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 27/32" |
| Type | General Purpose |
| UPC | 697334207528, 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2543887 | 21.75 | 1 | In Stock | | Cle-Line | | 21.75 @ 1 |
 | Megadepot | C20752 | 22.74 | 1 | In Stock | | Cle-Line | | 22.74 @ 1 |
 | usmegastore.com | C20752 | 22.9 | 1 | In Stock | | Cle-Line | | 22.9 @ 1 |
 | heavydutydepot.com | C20752 | 22.9 | 5 | In Stock | | Cle-Line | | 22.9 @ 5 |
 | Zoro | G3066901 | 23.25 | 1 | 42 | | Cle-Line | 0.5 | 23.25 @ 1 |
 | MRO Supply | 6124006 | 25.87 | 2 | In Stock | | Cle-Line | | 25.87 @ 2 |
| AmazonSC | B00J9MG2UW | 29.32 | 1 | In Stock | | Cle-line | | 29.32 @ 1 |
 | simsupply.com | ZO-G3066901 | 32.82 | 1 | 22 | | Cle-Line | | 32.82 @ 1 |
 | Raptor Supplies | AD6UCH | 36.0345375 | 1 | In Stock | | CLE-LINE | | 36.0345375 @ 1 |
 | sustainablesupply.com | C1465080 | 36.36 | 1 | In Stock | | Cle-Line | 0.5 | 36.36 @ 1 |
 | imsbolt.com | C20752 | 42.63 | 1 | In Stock | | CLE-LINE | | 42.63 @ 1 |
