- mpn145TBDR5309
- brandname: Marathon Motors
- manufacturername: Marathon Motors

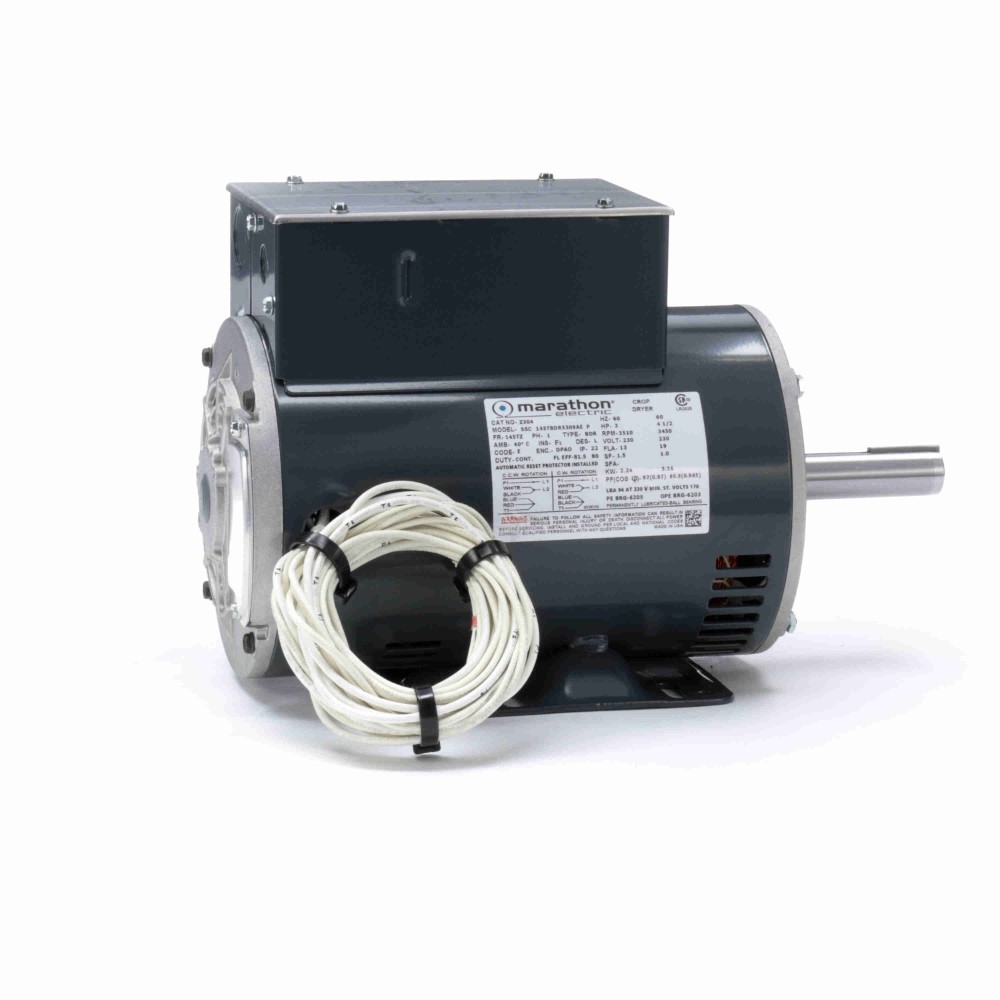

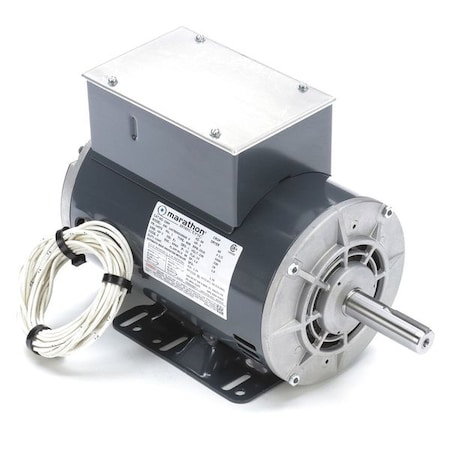

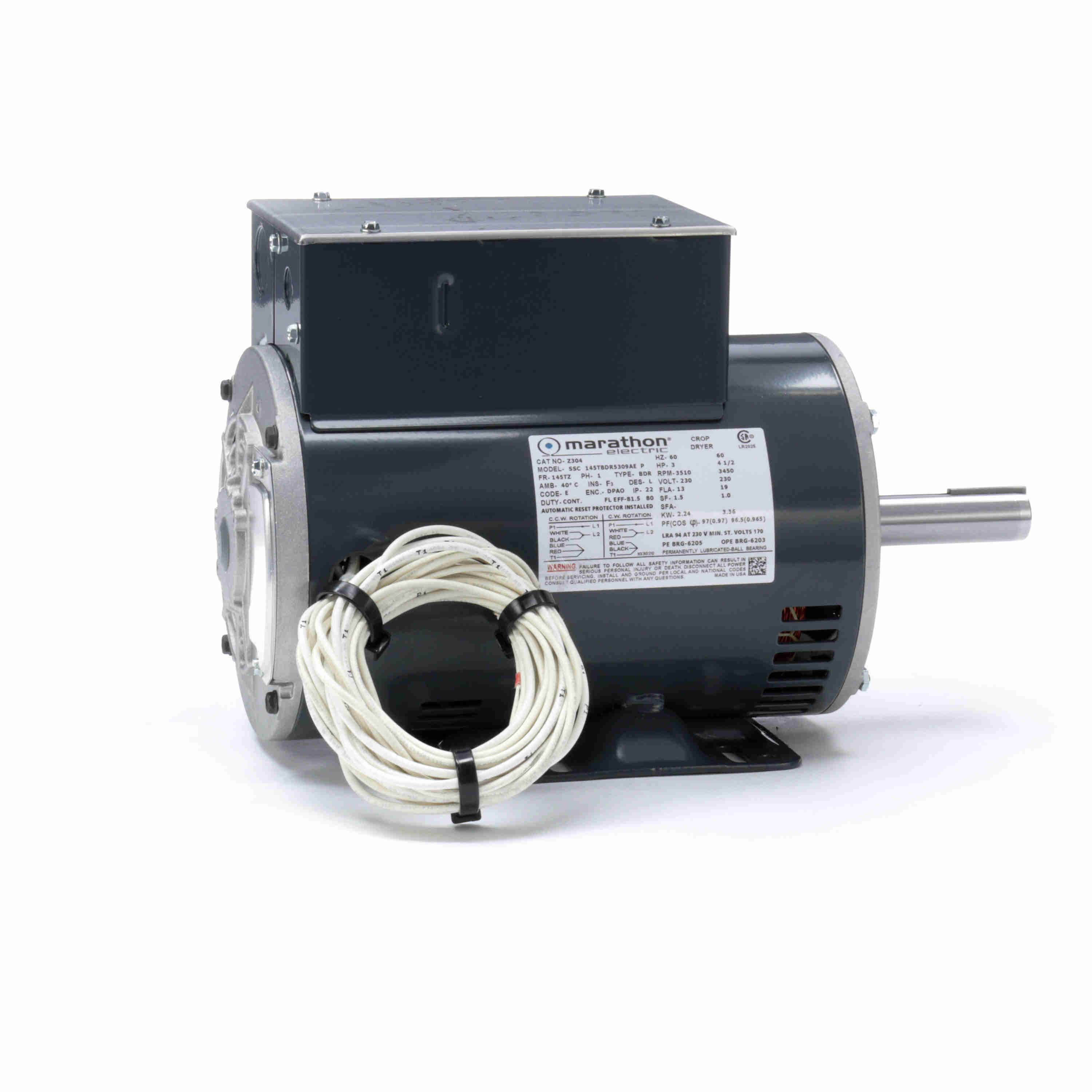

Marathon Motors 3 to 4-1/2 HP Crop Dryer Motor,Capacitor-Start/Run,3510 Nameplate RPM,230 Voltage,Frame 145TZ
- Brand: CAI - MARATHON MOTORS
- PartNumber: 145TBDR5309
- PackageQuantity: 1
- Manufacturer: CAI - MARATHON MOTORS
- Label: CAI - MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Classification | Crop Dryer |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | Standard |
| Efficiency % | 81.5 % |
| Enclosure | DPAO, Open |
| Family Series | Marathon Electric Motors |
| Finish | Gray |
| FL Amps | 13 |
| FL Efficiency | 81.5 |
| Frame | 145TZ |
| Frame Remarks | Rigid |
| Gross Weight | 0 lbs |
| Hertz | 60 |
| Horsepower | 3 hp |
| HP | 3 |
| Item | Crop Dryer Motor |
| Item Condition | Factory New |
| Item Number | 145TBDR5309 |
| Kilowatts | 2.2 kW |
| KW | 2.2 |
| Length Less Shaft | 10 11/16 in |
| Manufacturer | Marathon Electric, Mara. |
| Manufacturer Part Number | Z304 |
| Motor Application | Farm Duty |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.5 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Crop Dryer |
| Motor Thermal Protection | Auto |
| Mounting | Footed |
| Mounting Type | Footed |
| Nameplate RPM | 3,510 |
| NEMA Frame | 145TZ |
| Net Weight | 43 lbs |
| Nominal Voltage | 240 VAC |
| Number of Speeds | 1 |
| Overall Length | 13 3/4 in |
| Part Number | 145TBDR5309 |
| Phase | 1, Single |
| Product Type | Crop Dryer |
| RPM | 3600, 3,510 RPM |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.5 |
| Shaft Dia. | 7/8 in |
| Shaft Length | 3 in |
| Speed (RPM) | 3510 |
| Standards | CSA Certified, UL Recog. |
| Voltage | 230V AC, 230V |
| Voltage (AC) | 230 VAC |
| Volts | 230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | 145TBDR5309-MARA | 621.76 | 1 | In Stock | | Marathon Electric | 43.0 | 621.76 @ 1 |
 | Zoro | G5739176 | 621.99 | 1 | 1 | | Marathon Motors | 41.4 | 621.99 @ 1 |
 | Dealers Electric | 145TBDR5309 | 649.74 | 1 | In Stock | | Marathon Electric | 43.0 | 649.74 @ 1 |
 | surpluscenter.com | 10-3385 | 660.1 | 1 | In Stock | | Marathon | | 660.1 @ 1 |
| Grainger | 26ZY47 | 694.3 | 1 | In Stock | 10 | MARATHON MOTORS | | 694.3 @ 1 |
 | motorsandcontrol.com | Z304 | 694.91 | 1 | In Stock | | Marathon Motors | | 694.91 @ 1 |
 | pumpproducts.com | 145TBDR5309 | 1236.4 | 1 | In Stock | | Marathon | | 1236.4 @ 1 |
 | Raptor Supplies | AF8LFN | 1395.0673425 | 1 | In Stock | | MARATHON MOTORS | | 1395.0673425 @ 1 |
