- mpnC20678
- brandname: Cle-Line
- manufacturername: Cle-Line

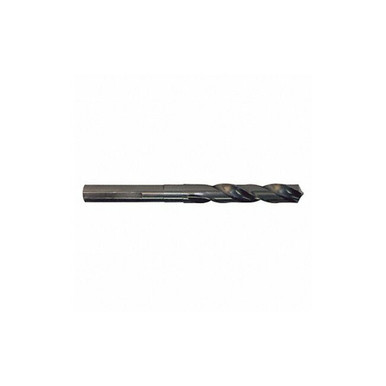

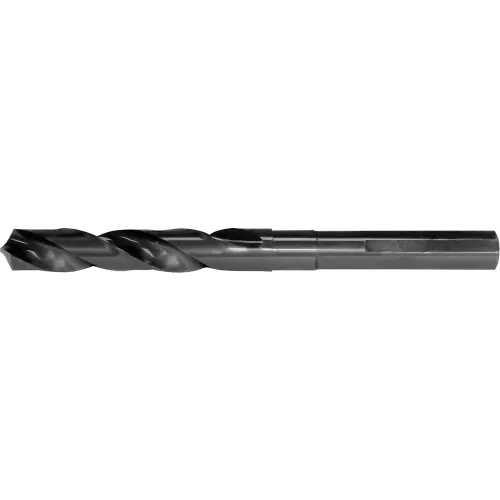

Cle-Line C20678 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Flatted Shank, 118-Degree Radial Point, 5/8" Drill Diameter
- Brand: Cle-line
- PartNumber: C20678
- Model: C20678
- Color: Black Oxide
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries, Inc.
- Label: Greenfield Industries, Inc.
Attributes
| Key | Value |
|---|
| Application | For Alloy And Carbon St. |
| Brand | Cle-Line |
| Catalog Page | N/A |
| Color | Black Oxide |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Current Stock | 182 |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.6250 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.6250" |
| Diameter (Fraction) | 5/8" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Point Angle | 118 ?, 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 5/8 in |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Size System | Fractional |
| Drill Style | Silver & Deming Drill |
| Finish - Machining | Black Oxide |
| Flute Length | 3 1/8 in, 3.1250", 3-1/. |
| Flute Length (Metric) | 79.38mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 28?, 28 Degrees |
| International Shipping | No |
| Item | Reduced Shank Drill Bit |
| Item? | 50AY57 |
| Material | HSS, High Speed Steel |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 2-1/2 in, 2 1/2 in |
| Measurement System | Fractional Inch |
| Mfr. Model? | C20678 |
| Mpn | C20678 |
| Number of Flutes | 2 |
| Overall Length | 6.0000", 6 in |
| Overall Length (Metric) | 152.40mm |
| Point Angle | 118? |
| Point Style | Radial |
| Primary Material Applic. | Cast Iron, Steel, Cast . |
| Primary Material Applic. | K, P, K; P |
| Series | 1892 |
| Shank Configuration | Reduced w/ 3 Flats |
| Shank Dia. | 1/2 in |
| Shank End Feature | 3 Flats |
| Shank End Feature Length | 0.8750" |
| Shank Length | 2 1/4 in, 2.2500", 2-1/. |
| Shank Length (Metric) | 57.15mm |
| Shank Neck Diameter | 0.5810" |
| Shank Neck Length | 0.5000" |
| Shank Size | 0.5000" |
| Shank Size (Metric) | 12.70mm |
| Shank Type - Machining | Straight |
| Silver & Deming Drill | Yes |
| SKU | ZO-G4953746, C20678 |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 5/8" |
| UNSPSC | 27112801 |
| UPC | 697334206781, 6.97334E+. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G4953746 | 15.29 | 1 | 254 | | Cle-Line | 0.35 | 15.29 @ 1 |
 | Global Industrial | WBB2543994 | 15.75 | 1 | In Stock | | Cle-Line | | 15.75 @ 1 |
 | Megadepot | C20678 | 15.91 | 1 | In Stock | | Cle-Line | | 15.91 @ 1 |
 | heavydutydepot.com | C20678 | 15.91 | 7 | In Stock | | Cle-Line | | 15.91 @ 7 |
 | usmegastore.com | C20678 | 16.57 | 1 | In Stock | | Cle-Line | | 16.57 @ 1 |
 | simsupply.com | ZO-G4953746 | 25.92 | 1 | 182 | | Cle-Line | | 25.92 @ 1 |
| Grainger | 50AY57 | 32.46 | 1 | In Stock | | CLE-LINE | | 32.46 @ 1 |
 | imsbolt.com | C20678 | 32.8 | 1 | In Stock | | CLE-LINE | | 32.8 @ 1 |
 | National Supply Network | 57633901 | 37.9 | 1 | In Stock | | Cle-Line | | 37.9 @ 1 |
